Network Gateway Ecu: Replacement

HINT:

• COMPONENTS: SEE COMPONENTS
• Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY (SEE  INSTRUMENT PANEL SUB-ASSY  )

   HINT:

   Refer to the procedures up to "REMOVE INSTRUMENT PANEL SUB-ASSY W/ PASSENGER AIRBAG ASSY".

2. REMOVE NETWORK GATEWAY ECU
   1. Disconnect the connector.
   2. Remove the bolt and network gateway ECU.

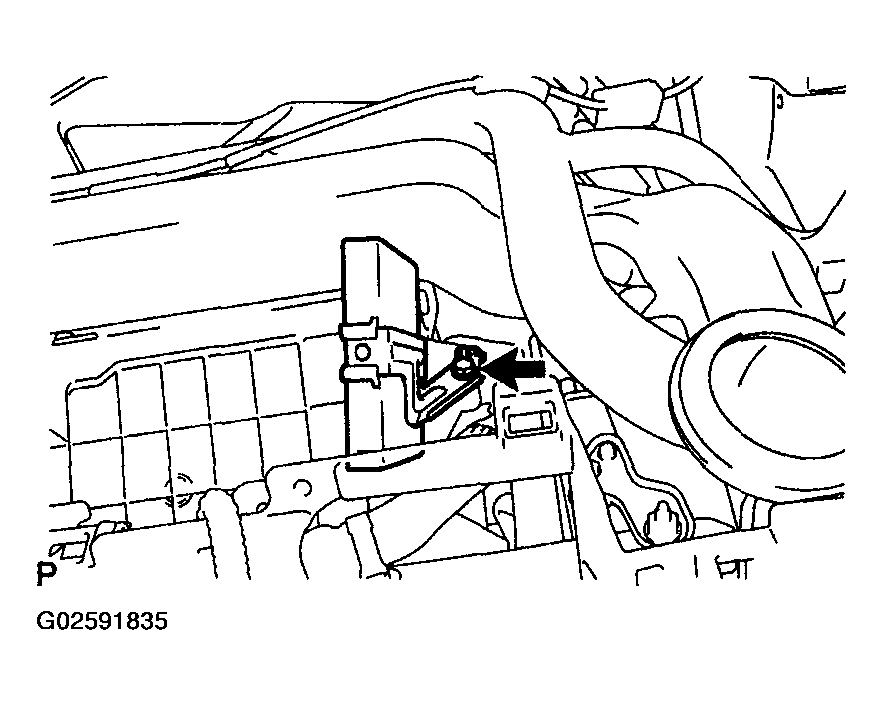

   Fig 1: Removing Network Gateway ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY (SEE  INSTRUMENT PANEL SUB-ASSY  )

   HINT:

   Refer to the procedures from "INSTALL INSTRUMENT PANEL SUB-ASSY W/ PASSENGER AIRBAG ASSY".
