Input Shaft ASSY (C60): Components

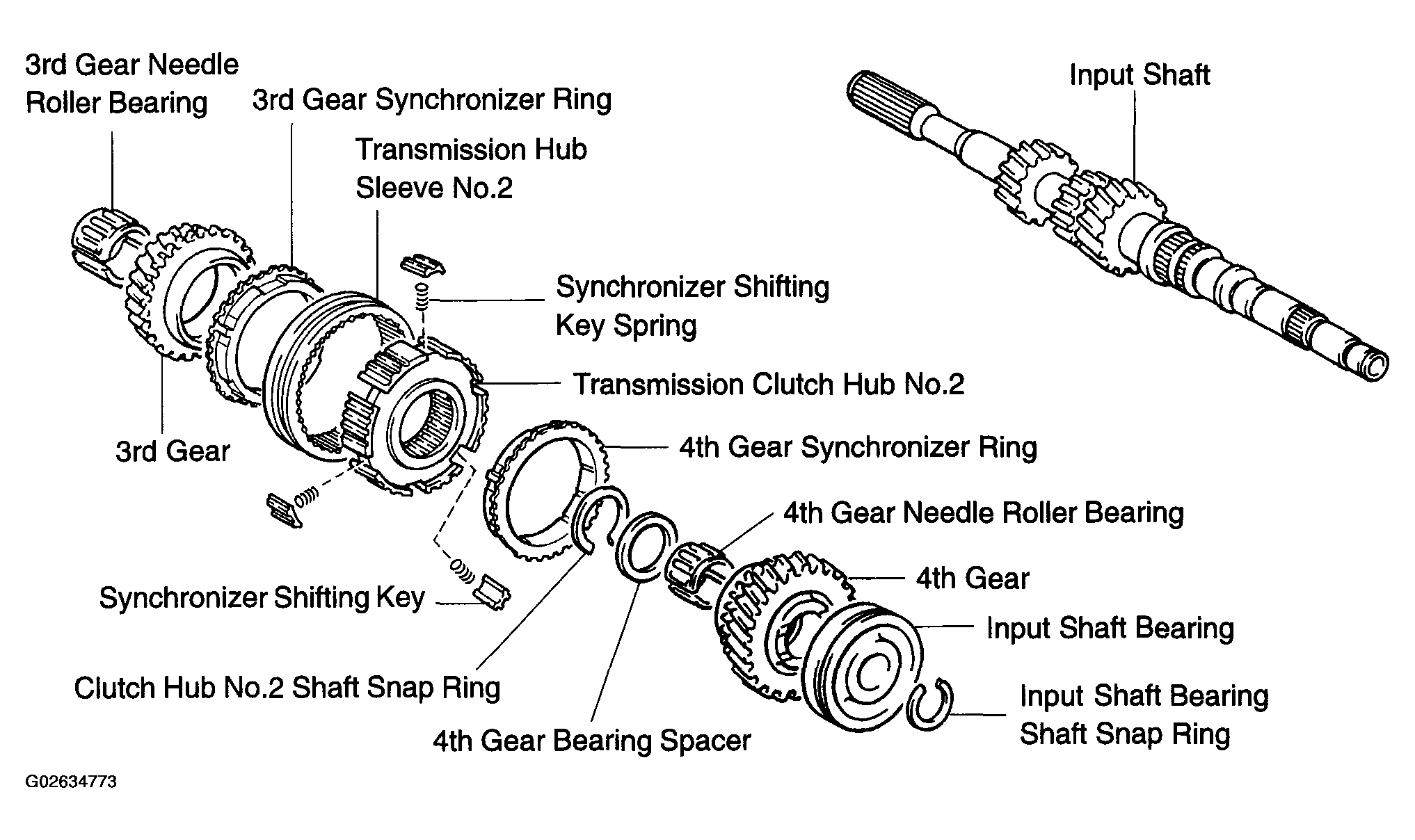

Fig 1: Identifying Components Input Shaft Assy

G02634773

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
