Home >> Toyota >> 2005 >> Matrix Base, FWD, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transmission >> Input Shaft ASSY (C59) >> Components

Input Shaft ASSY (C59): Components

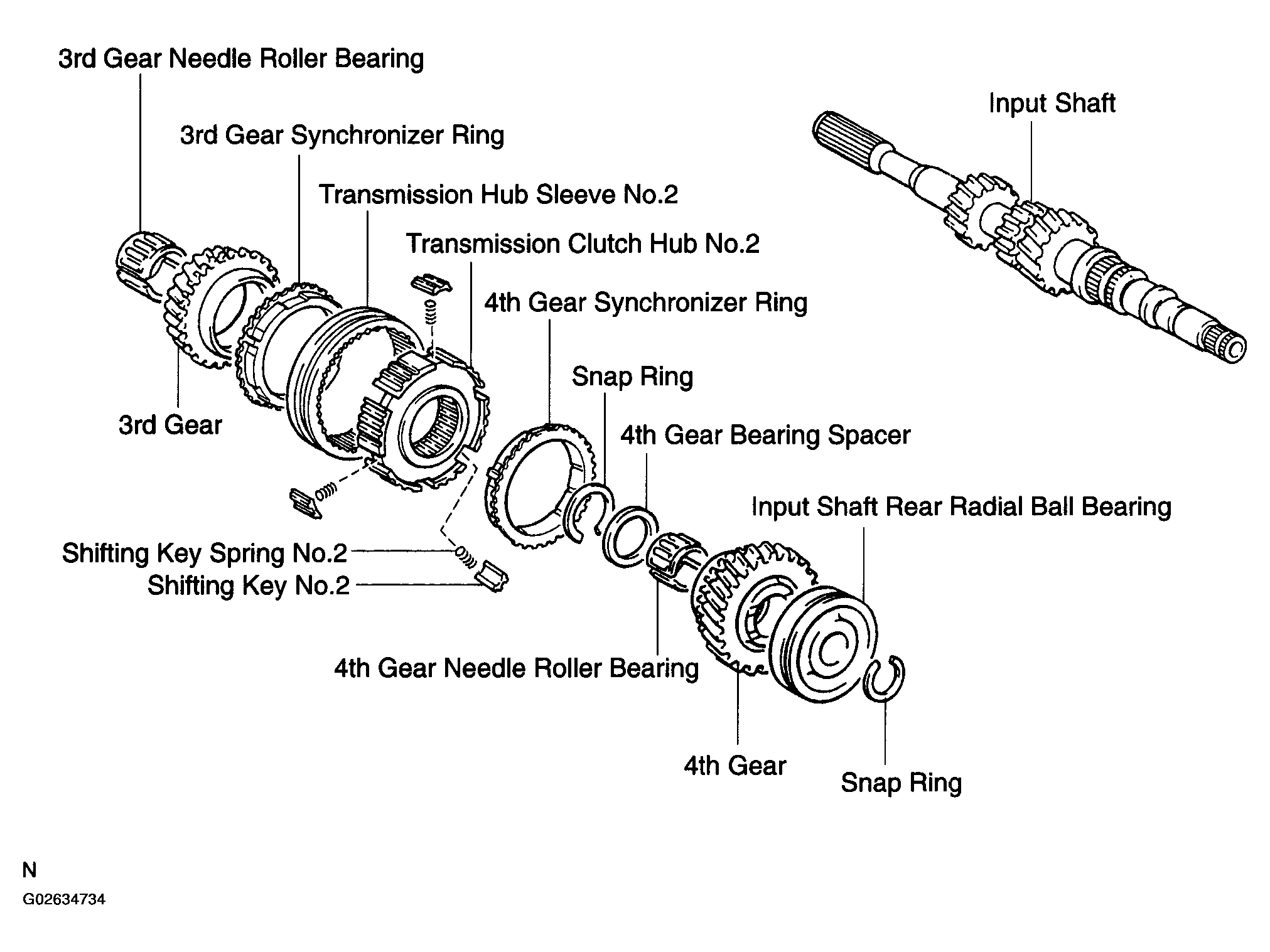

Fig 1: Identifying Components Of Input Shaft Assy

G02634734

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
