Automatic Transmission / Trans: Preparation

SST (Special Service Tools)

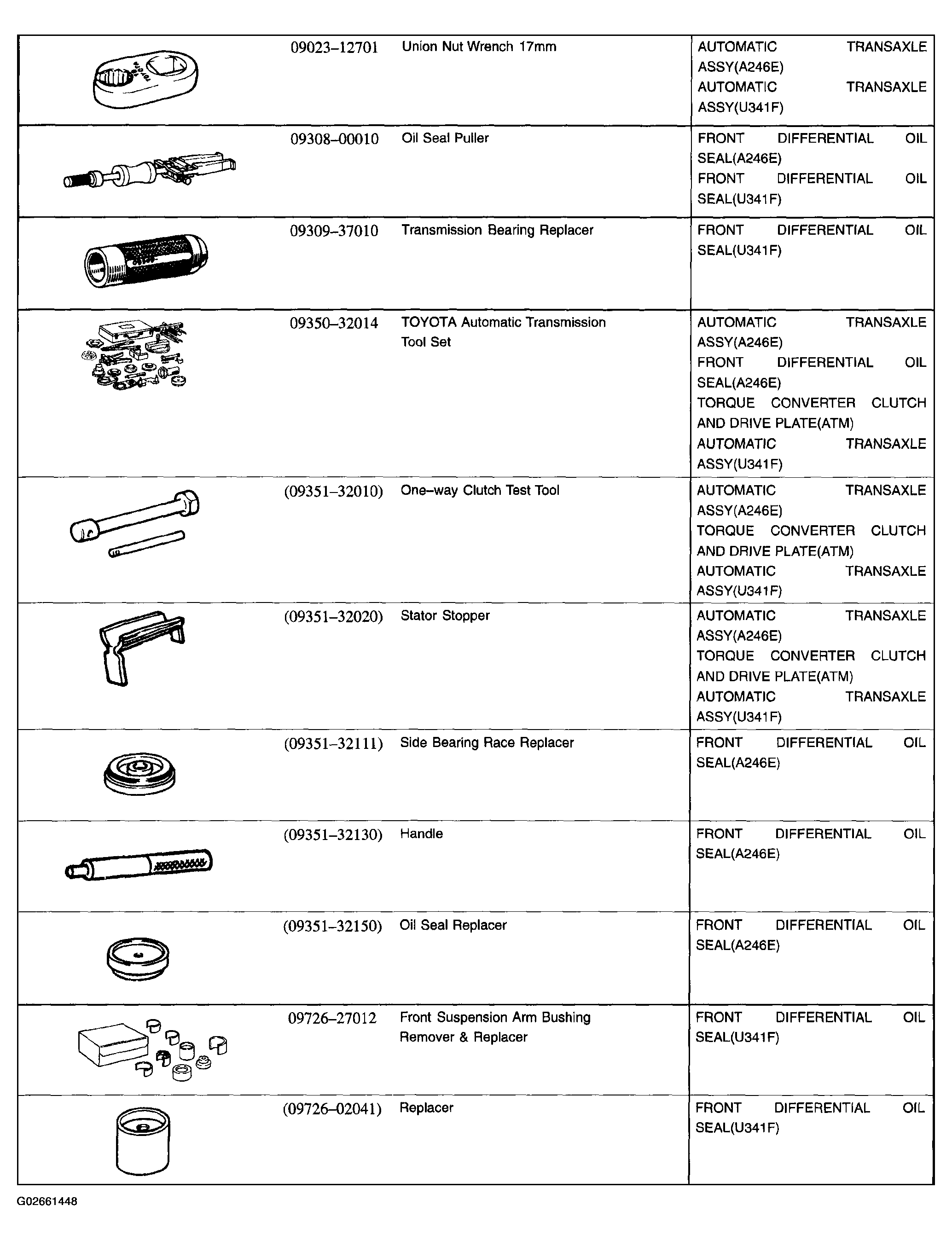

Fig 1: Special Service Tools Description Chart (Automatic Transmission) (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

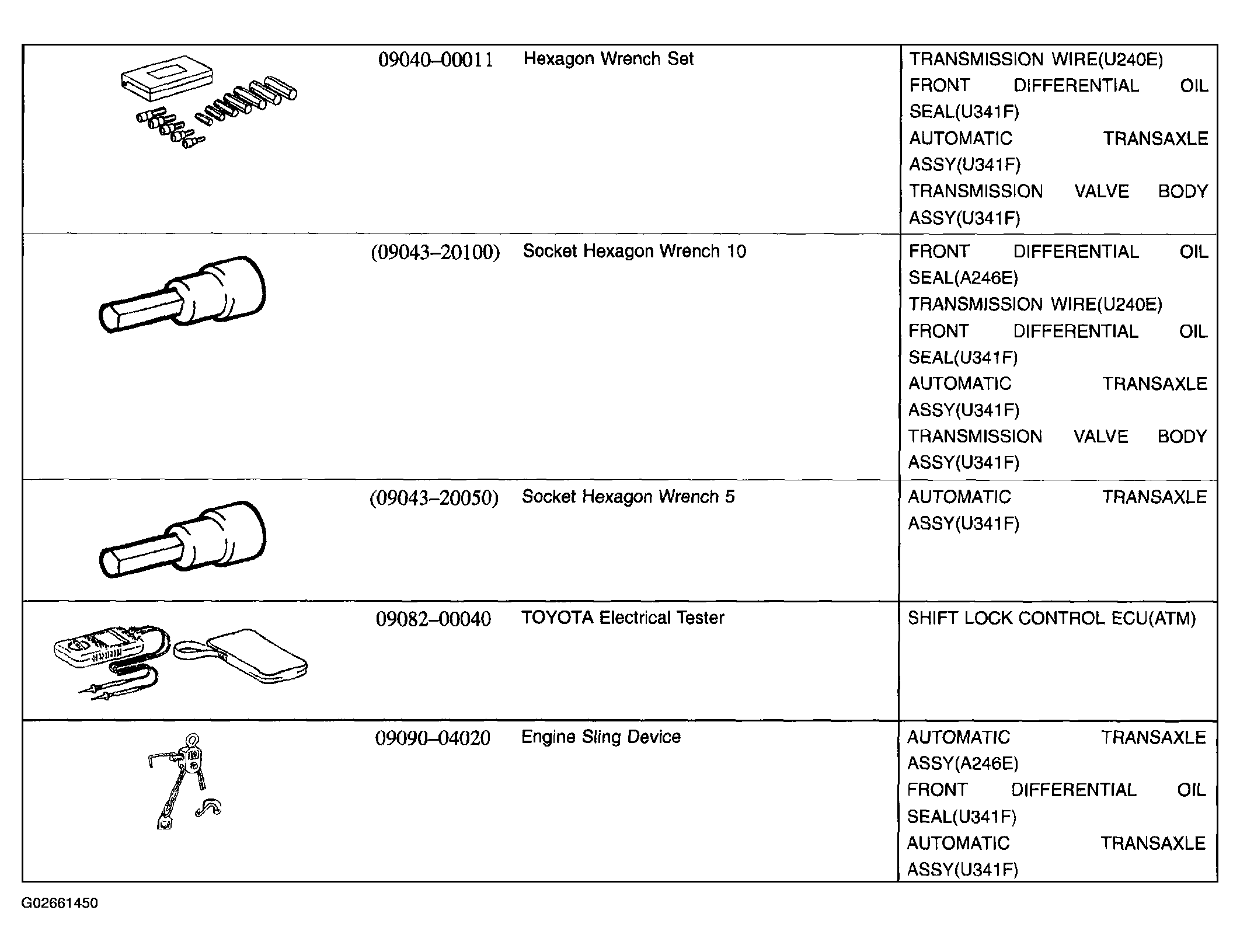

Fig 2: Special Service Tools Description Chart (Automatic Transmission) (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

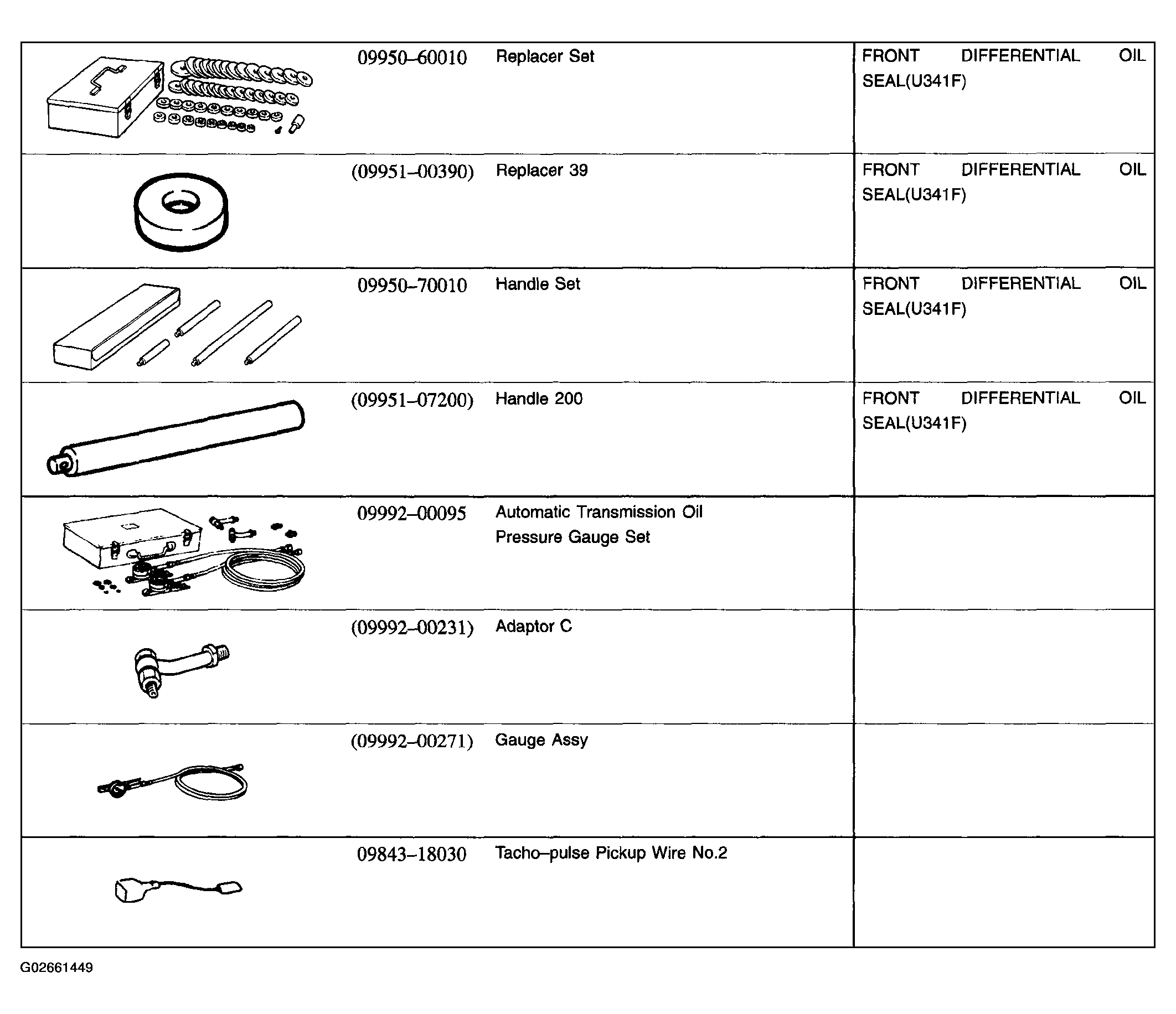

Fig 3: Recommended Tools Description Chart (Automatic Transmission)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

EQUIPMENT DETAILS

Straight edge	Torque converter clutch
Vernier calipers	Torque converter clutch
Dial indicator or dial indicator with magnetic base	Drive plate
Torque wrench
Engine sling device	Automatic transaxle assy
Slide calipers	Automatic transaxle assy, Front differential oil seal
Chain block	Automatic transaxle assy

Lubricant

LUBRICANT CLASSIFICATION

Item	Capacity	Classification
A246E: Automatic transaxle fluid		ATF Type T-IV
Dry fill	7.3 liters (7.7 US qts, 6.4 lmp.qts)
Drain and refill	3.0 liters (3.2 US qts, 2.6 lmp.qts)
U341F: Automatic transaxle fluid		ATF Type T-IV
Dry fill	6.88 liters (7.3 US qts, 6.1 lmp.qts)
Drain and refill	2.9 liters (3.1 US qts, 2.6 lmp.qts)

SSM (Special Service Materials)

SPECIAL SERVICE MATERIALS DETAILS

08833-00070

"Adhesive 1324," THREE BOND 1324 or equivalent
