Throttle Body ASSY (1ZZ-FE (Ff)): Components

Fig 1: Exploded View Of Throttle Body Assy Components (1 Of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

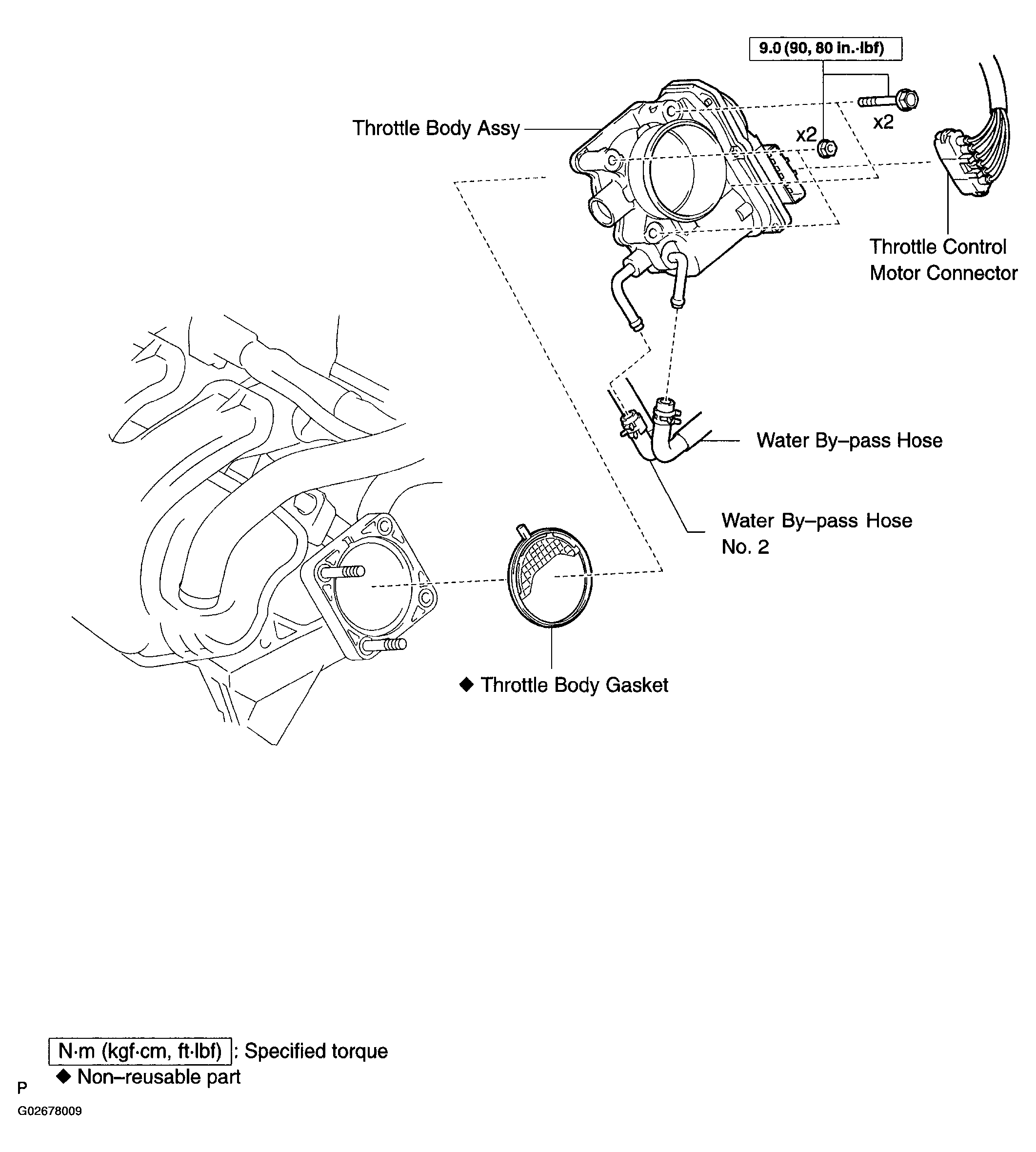

Fig 2: Exploded View Of Throttle Body Assy Components (2 Of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
