Stereo Component Amplifier ASSY: Replacement

HINT:

• See COMPONENTS .
• Installation is in the reverse order of removal.

1. DISCONNECT BATTERY NEGATIVE TERMINAL (SEE  SUPPLEMENTAL RESTRAINT SYSTEM  )
2. REMOVE FRONT SEAT (PASSENGER SEAT POSITION) (SEE  OVERHAUL  )
3. REMOVE STEREO COMPONENT AMPLIFIER ASSY
   1. Remove the 3 bolts and stereo component amplifier assy.

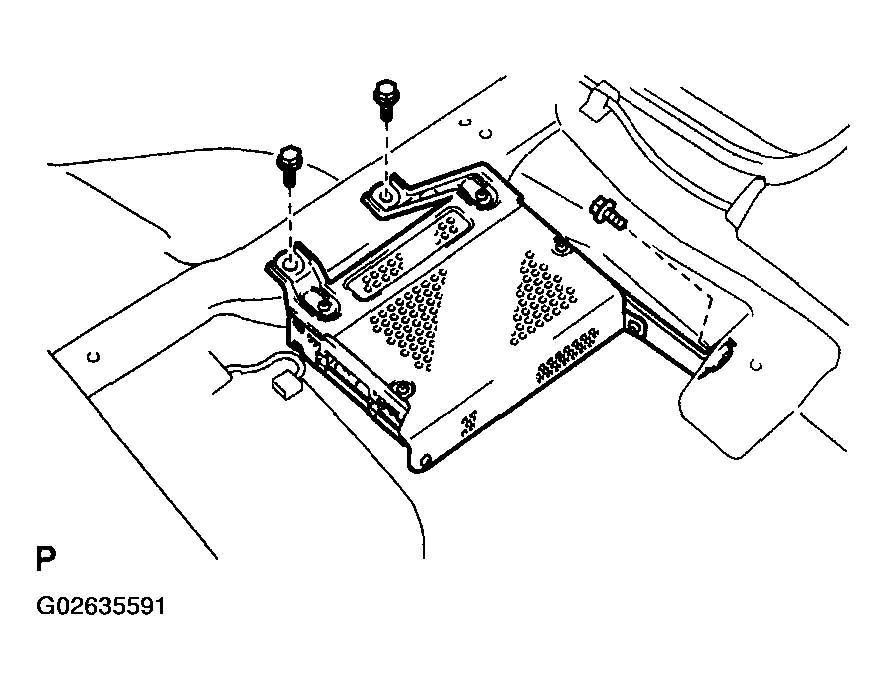

   Fig 1: Removing Bolts And Stereo Component Amplifier Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL FRONT SEAT (PASSENGER SEAT POSITION) (SEE  OVERHAUL  )
