Navigation Antenna ASSY: Replacement

HINT:

• See COMPONENTS .
• Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT PANEL SUB-ASSY UPPER (SEE  REPLACEMENT  )

   HINT:

   Refer to the instructions for removal of the instrument panel sub-assy upper.

2. REMOVE NAVIGATION ANTENNA ASSY
   1. Disconnect the connector, remove the navigation antenna cord sub-assy.
   2. Remove the 2 screws and navigation antenna assy from the defroster nozzle assy.

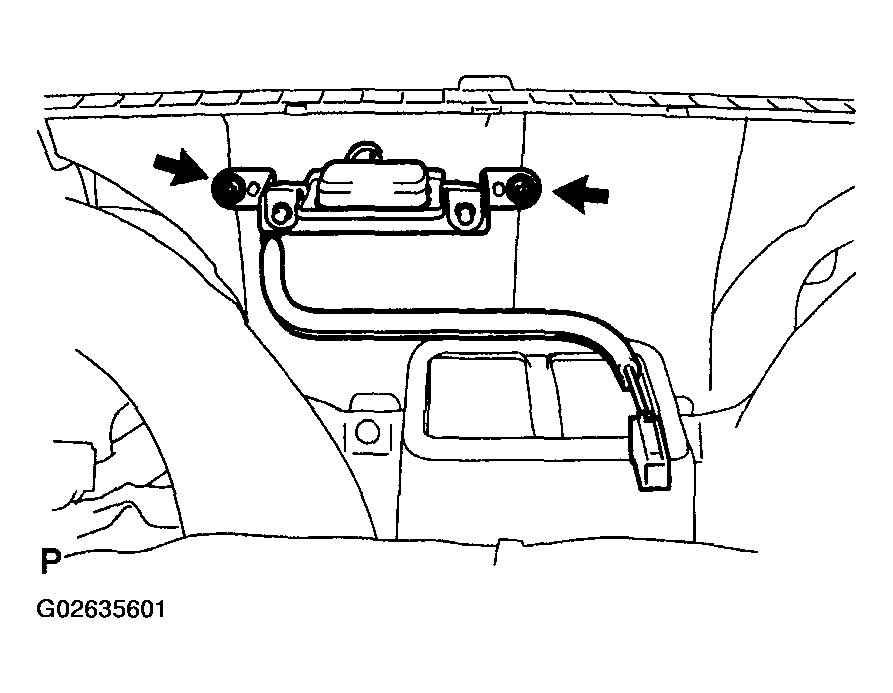

   Fig 1: Removing 2 Screws And Navigation Antenna Assy From Defroster Nozzle Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL INSTRUMENT PANEL SUB-ASSY UPPER (SEE  REPLACEMENT  )
