Front No.2 Speaker ASSY: Replacement

HINT:

• See COMPONENTS .
• Installation is in the reverse order of removal.

1. REMOVE FRONT DOOR PULL HANDLE LH (SEE  OVERHAUL  )
2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSY (W/POWER WINDOW) (SEE  OVERHAUL  )
3. REMOVE FRONT ARMREST BASE PANEL UPPER LH (W/O POWER WINDOW) (SEE  OVERHAUL  )
4. REMOVE FRONT DOOR WINDOW REGULATOR HANDLE ASSY (W/O POWER WINDOW) (SEE  OVERHAUL  )
5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSY LH (SEE  OVERHAUL  )
6. REMOVE FRONT NO.2 SPEAKER ASSY
   1. Disconnect the connector.
   2. Remove the 2 nuts and front No.2 speaker assy from the front door panel.

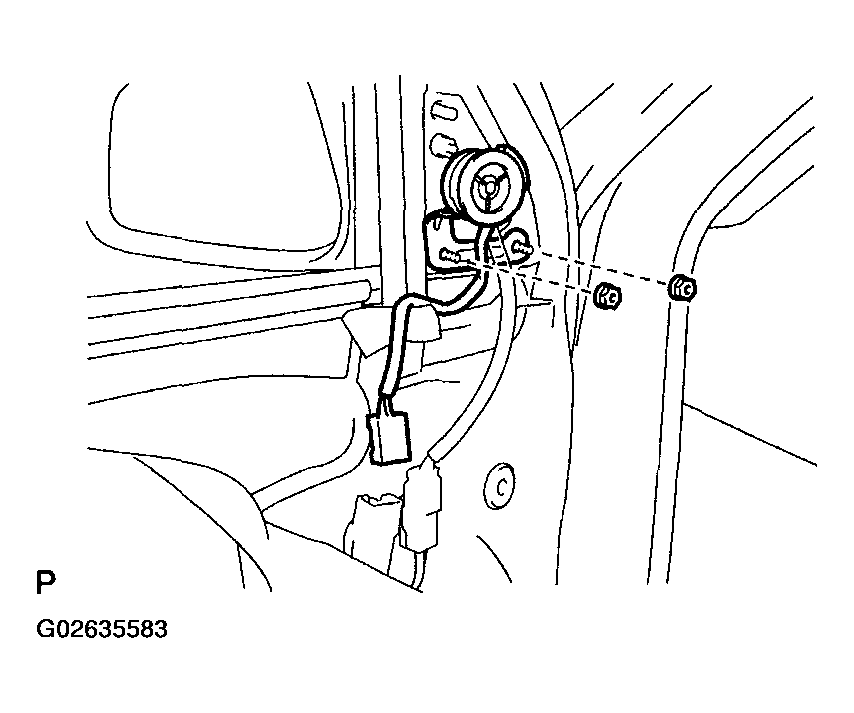

   Fig 1: Removing 2 Nuts And Front No.2 Speaker Assy From Front Door Panel

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL FRONT NO.2 SPEAKER ASSY
   1. Install the front No.2 speaker assy with the 2 nuts.

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

   2. Connect the connector.
