Center Stop Lamp ASSY: Replacement

HINT:

Installation is in the reverse order of removal.

1. REMOVE CENTER STOP LAMP ASSY
   1. Remove the 2 clips and center stop lamp cover.

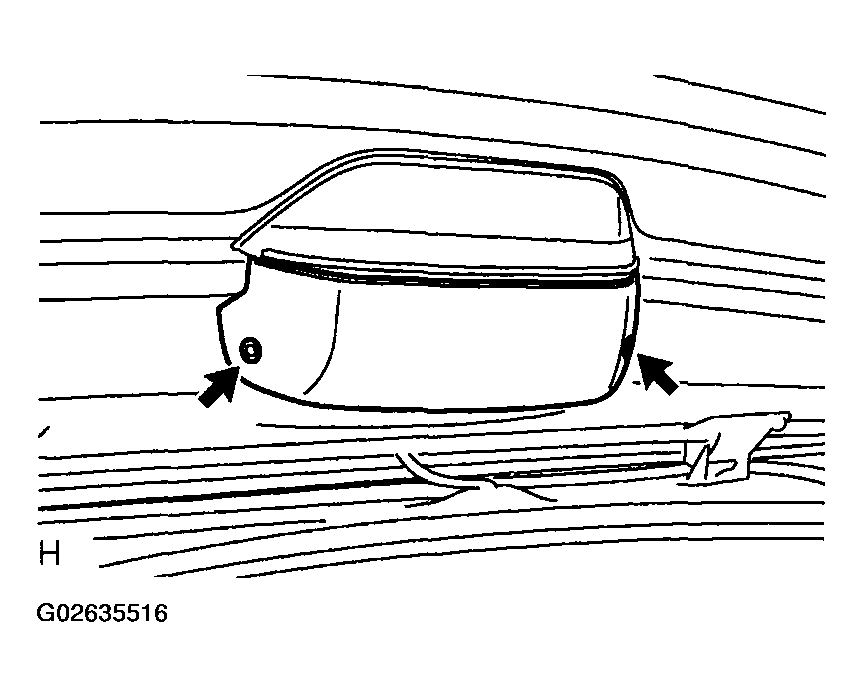

      Fig 1: Removing Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the 2 nuts.
   3. Disconnect the connector and remove the center stop lamp assy.

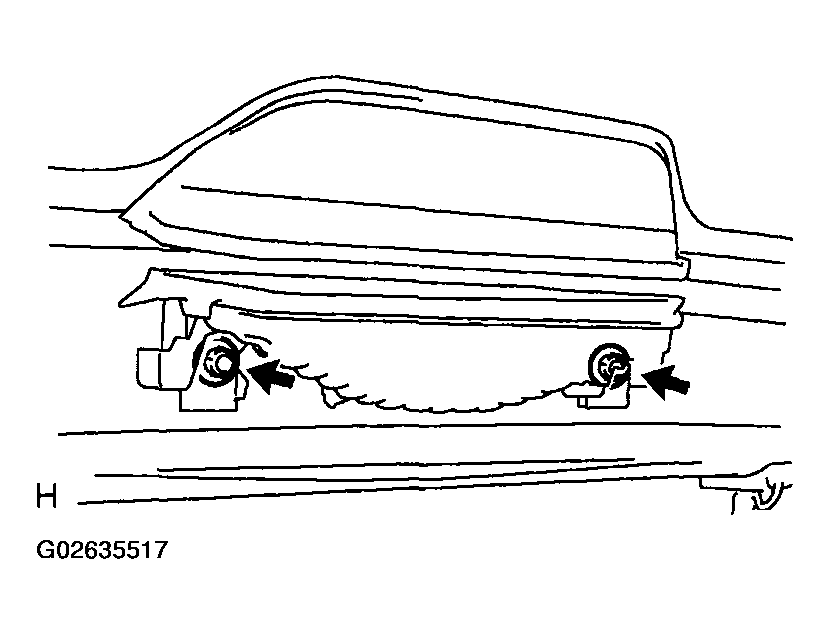

      Fig 2: Removing Nuts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
