DTC P0325, P0327, P0328: Knock Sensor 1 Circuit Low/High Input (Bank 1 Or Single Sensor): Wiring Diagram

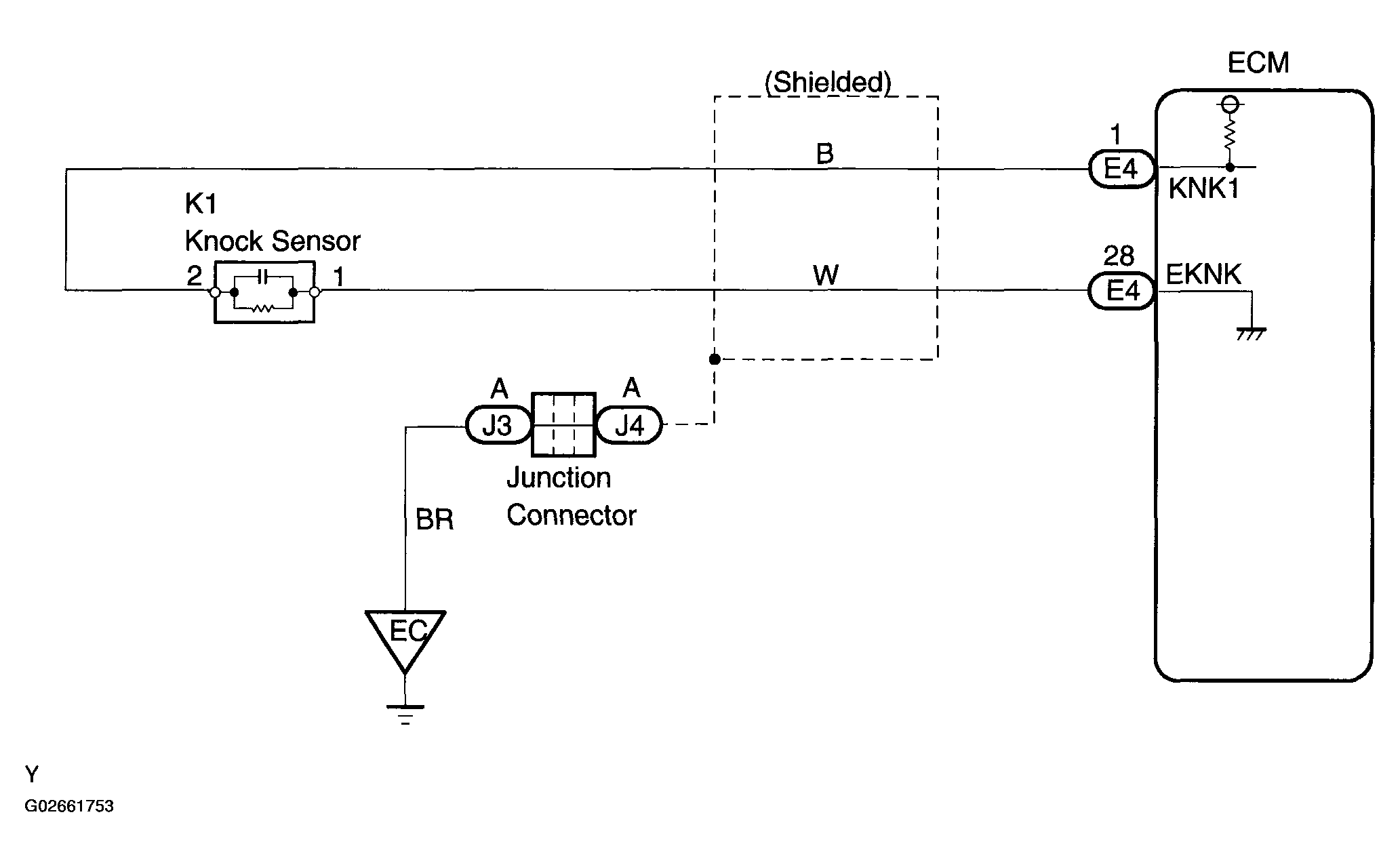

Fig 1: Knock Sensor 1 Circuit Diagram
G02661753Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
