Map Disc Cannot Be Inserted: Wiring Diagram

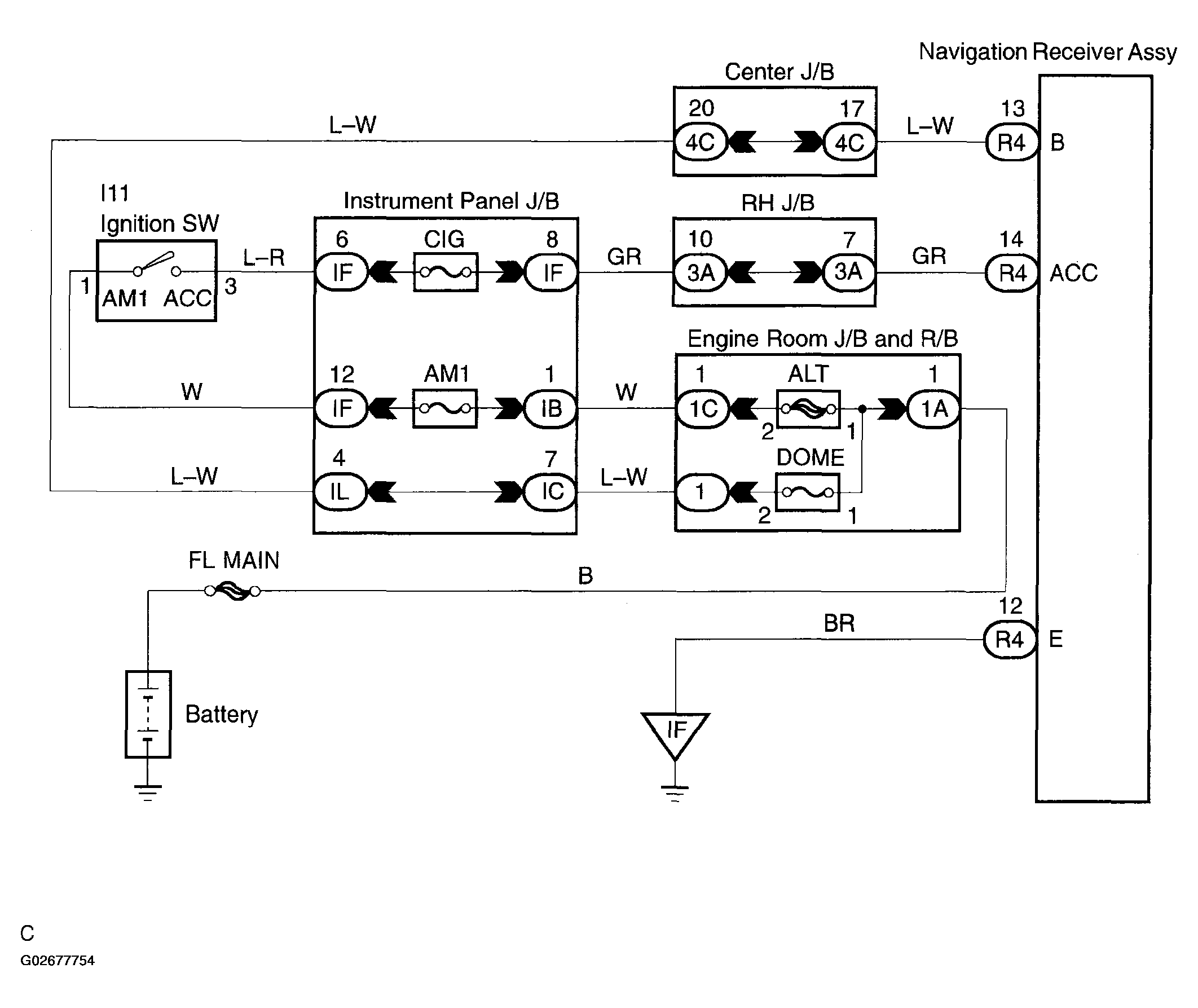

Fig 1: Wiring Diagram - Navigation Receiver Assy (MAP Disc Cannot Be Inserted)

G02677754

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
