Rear Seat Belt: Components

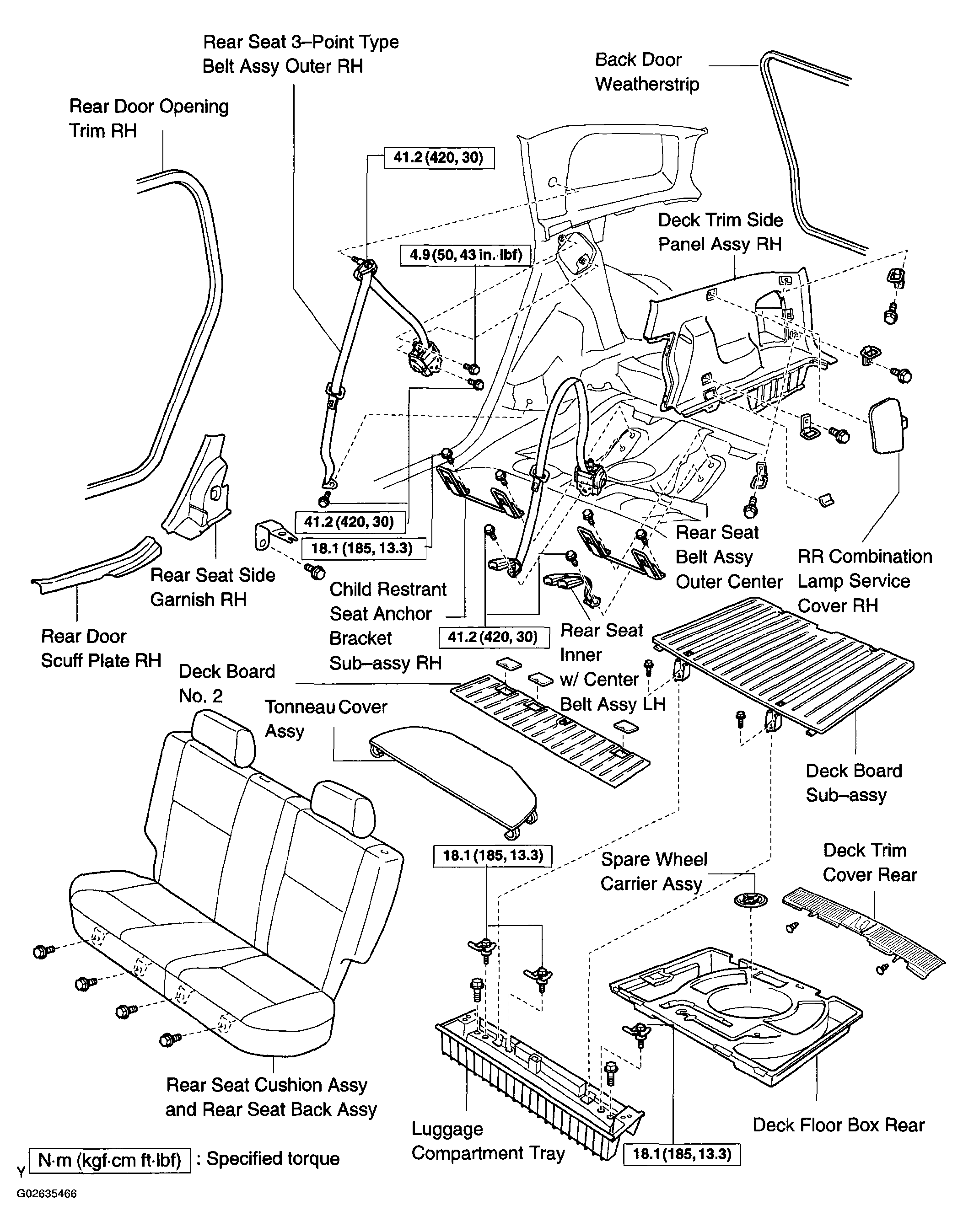

Fig 1: Replacement Components Rear Seat Belt With Torque Specifications
G02635466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
