Front Seat Belt With PRETENSIONER: Components

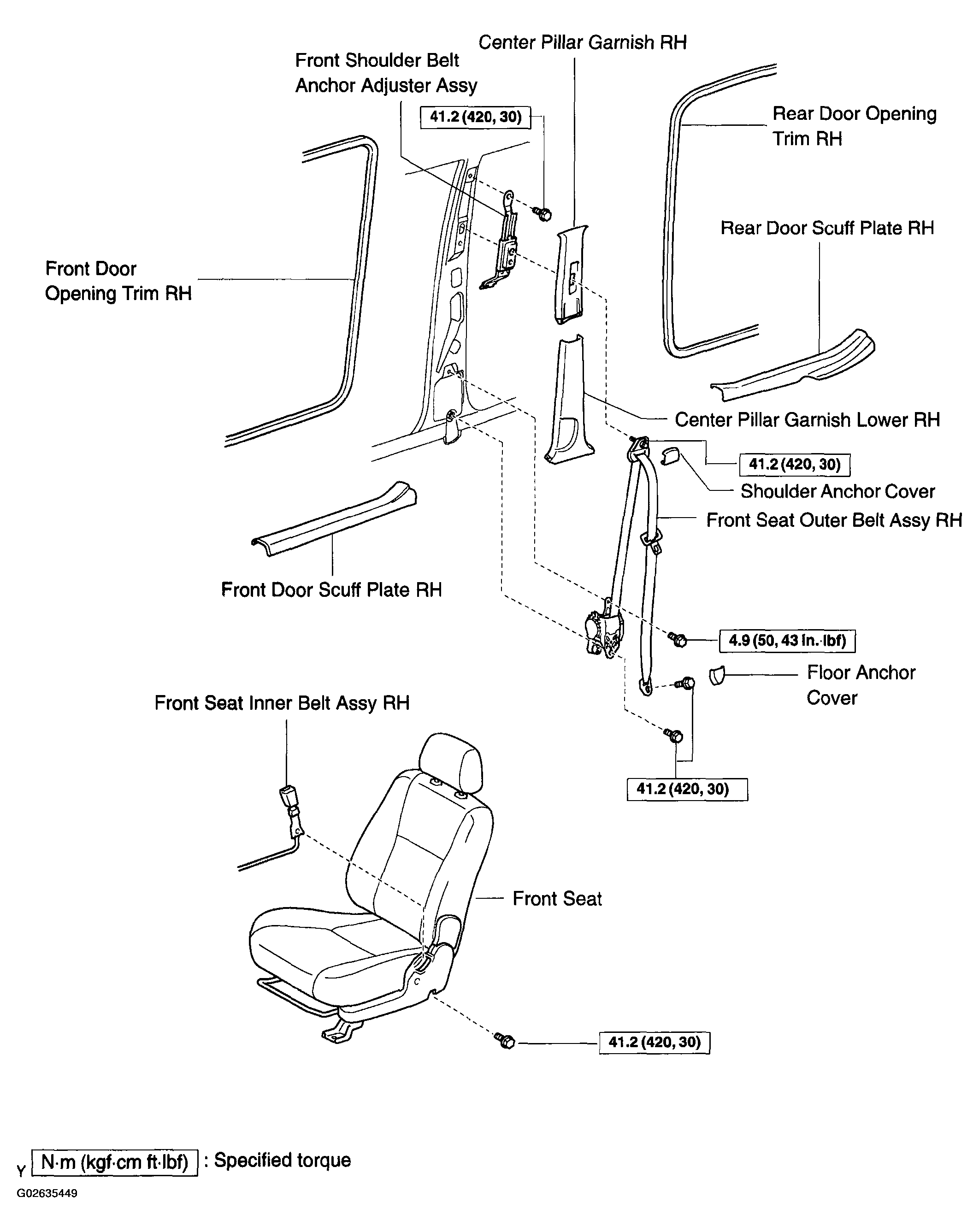

Fig 1: Replacement Components Seat Belt With Torque Specifications

G02635449

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
