OEM General Information: Preparation: Clutch: Preparation

SST

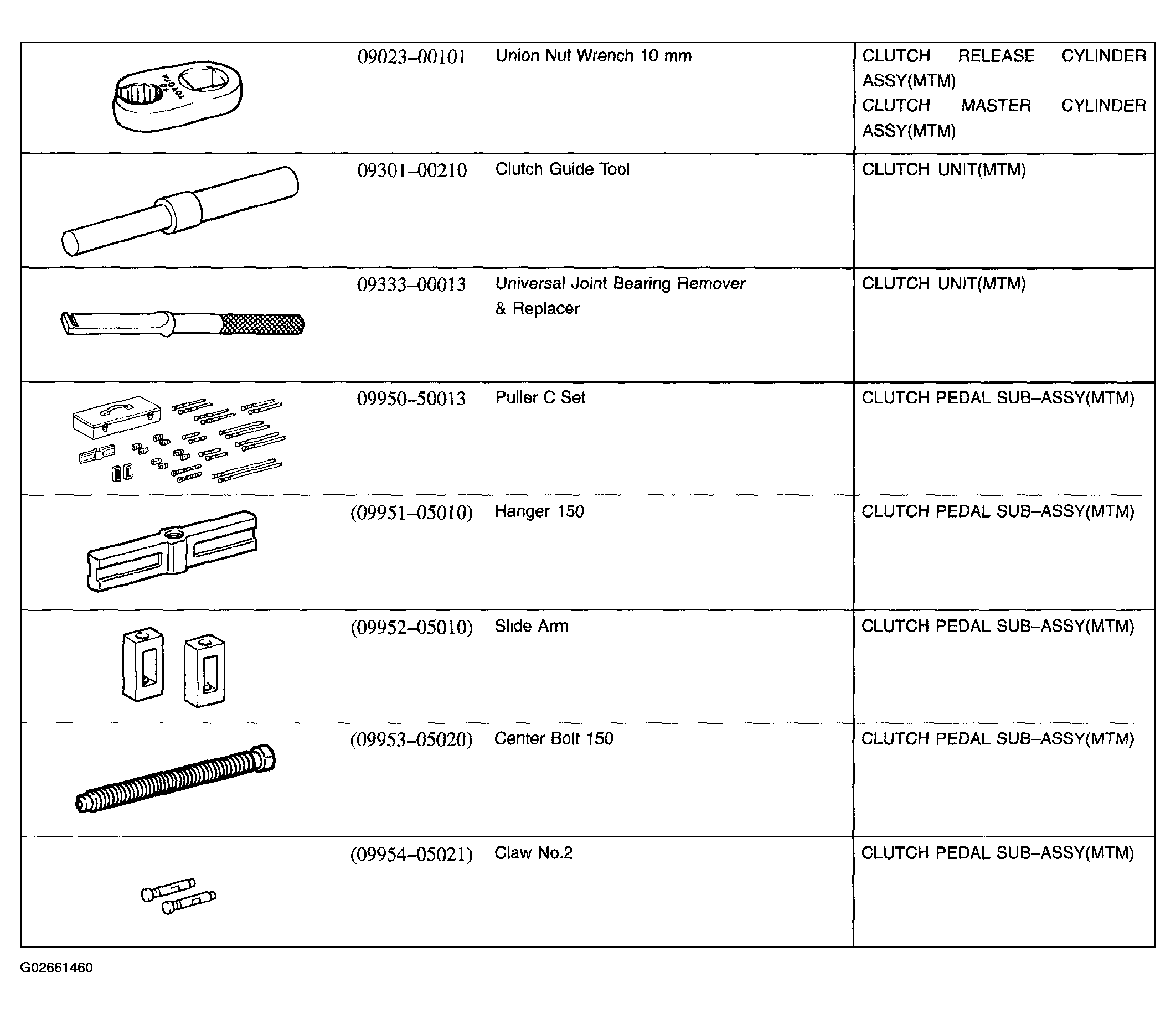

Fig 1: Special Service Tools Description Chart (Clutch)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

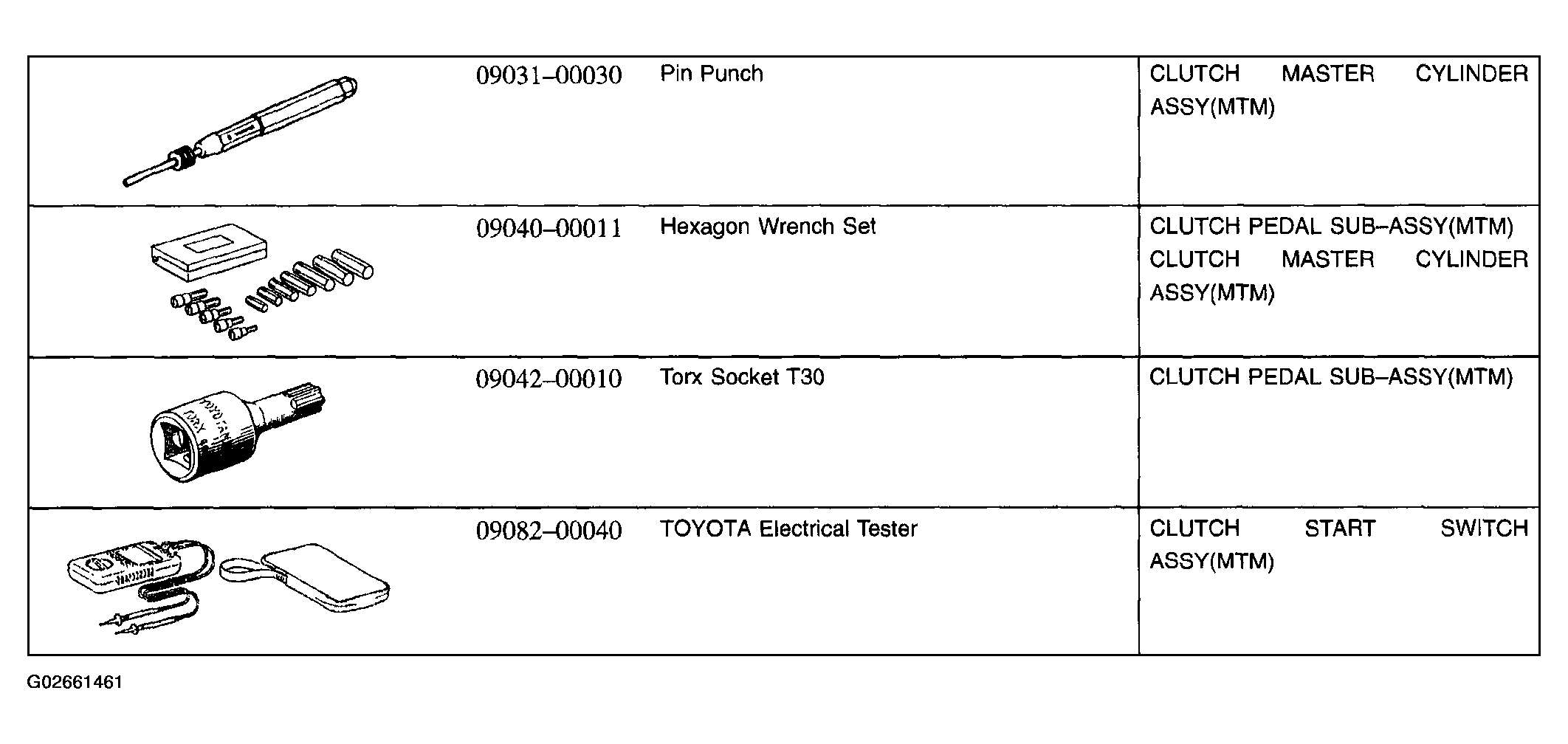

Fig 2: Recommended Tools Description Chart (Clutch) (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

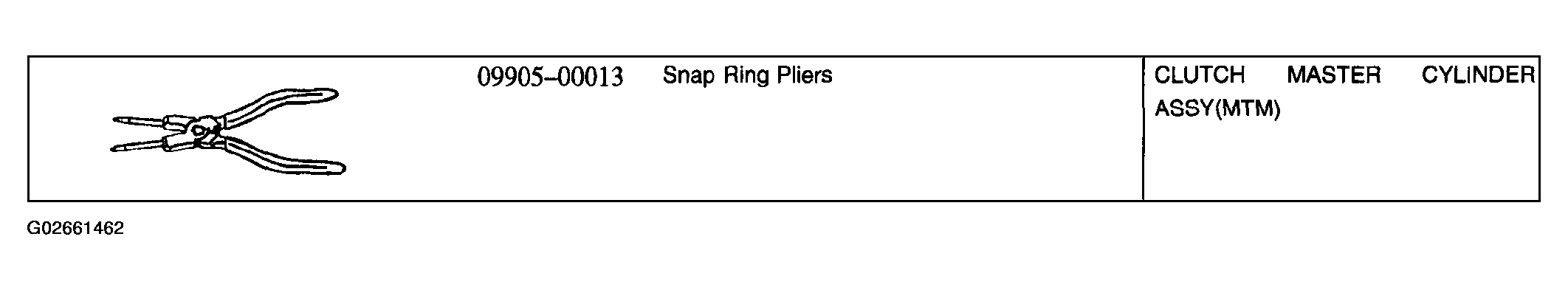

Fig 3: Recommended Tools Description Chart (Clutch) (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

EQUIPMENT DETAILS

Vernier calipers
Dial indicator with magnetic base
Torque wrench

Lubricant

LUBRICANT CLASSIFICATION

Item	Capacity	Classification
Brake fluid	-	SAE J1703 or FMVSS No. 116 DOT3
