Generator ASSY (1ZZ-FE/2ZZ-GE): Components

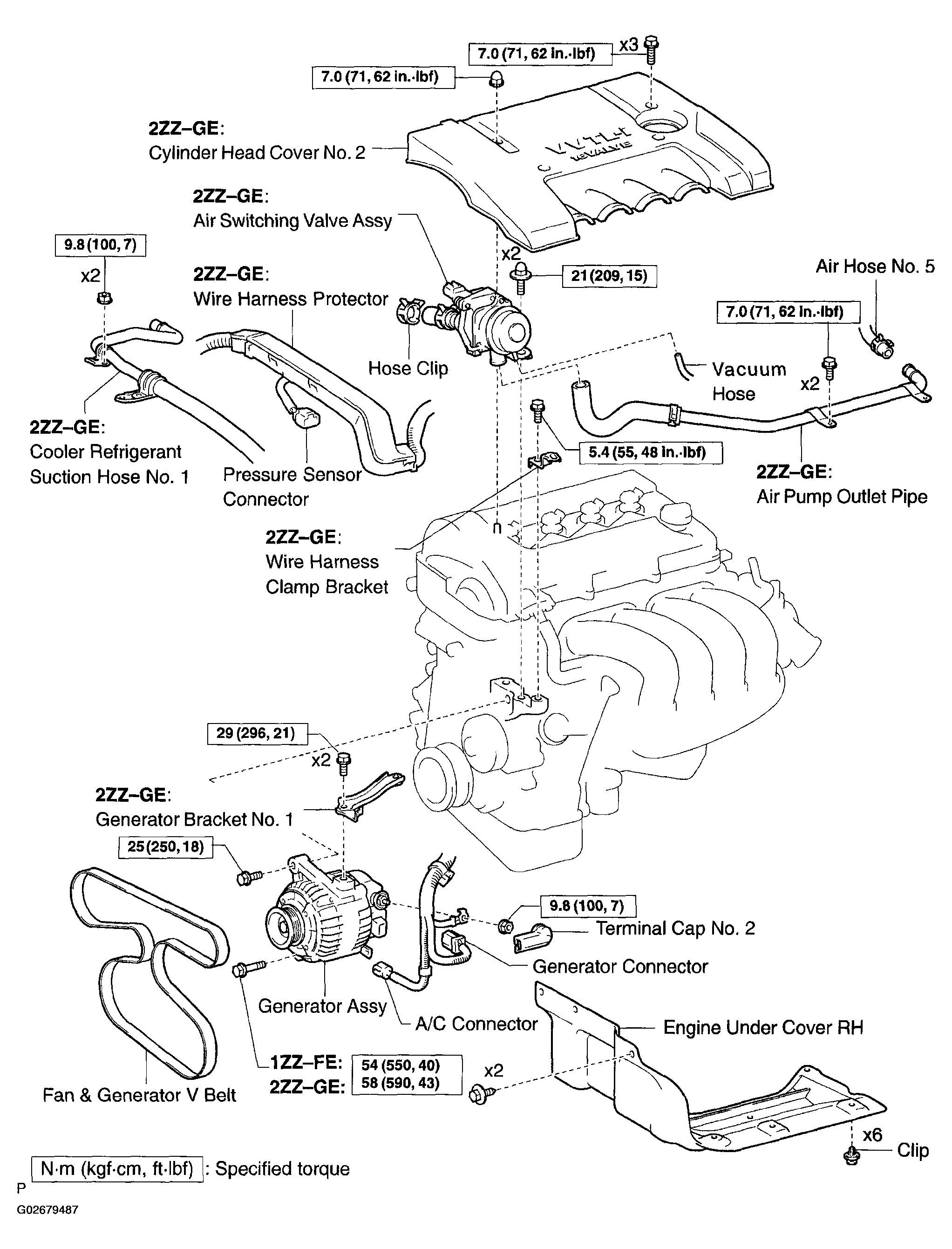

Fig 1: Generator Assy Replacement Components - 1ZZ-FE/2ZZ-GE With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

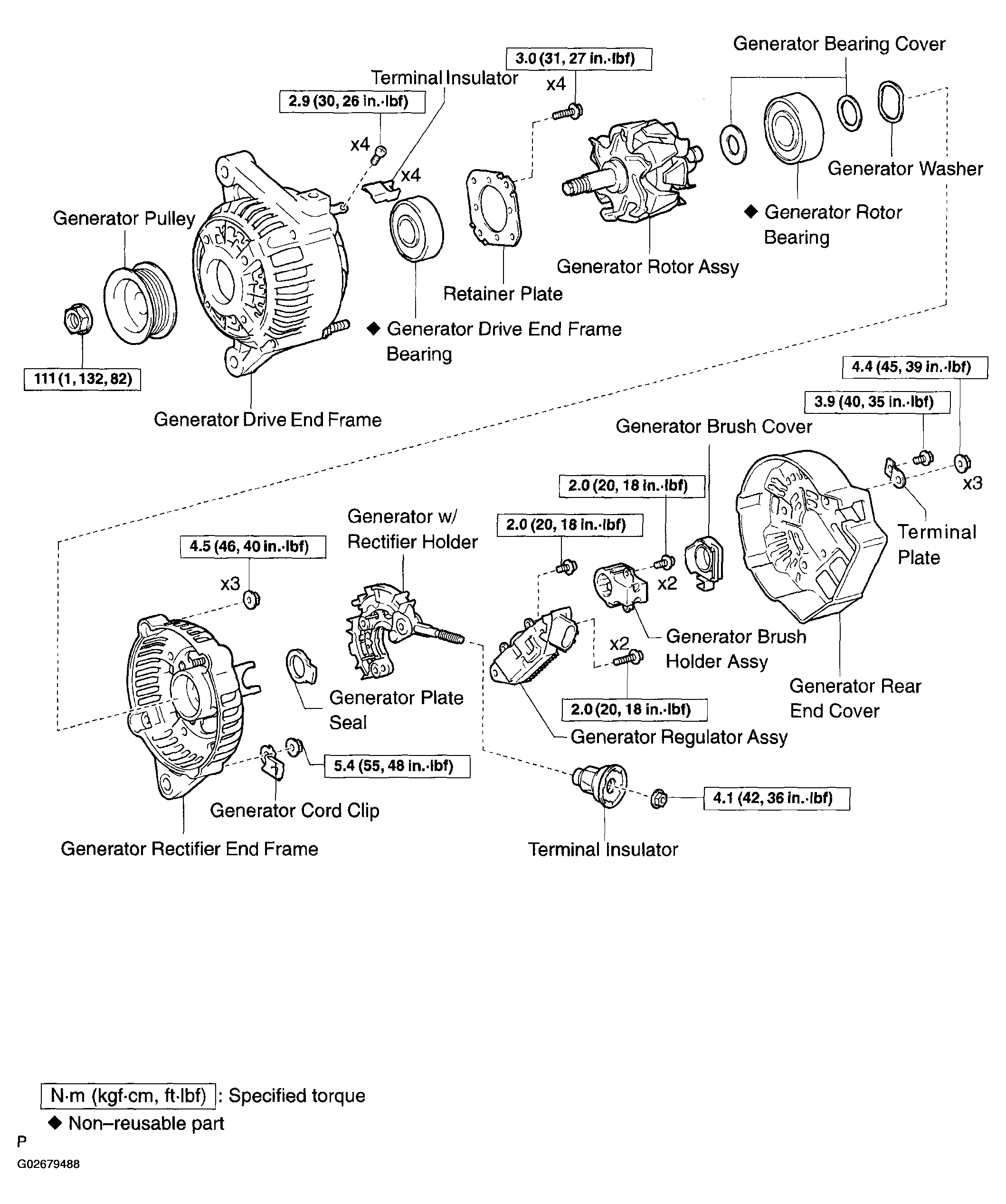

Fig 2: Generator Assy Replacement Components - 1ZZ-FE/2ZZ-GE With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
