Front Suspension System: Repair

HINT: This is a flow chart for vehicle pull.

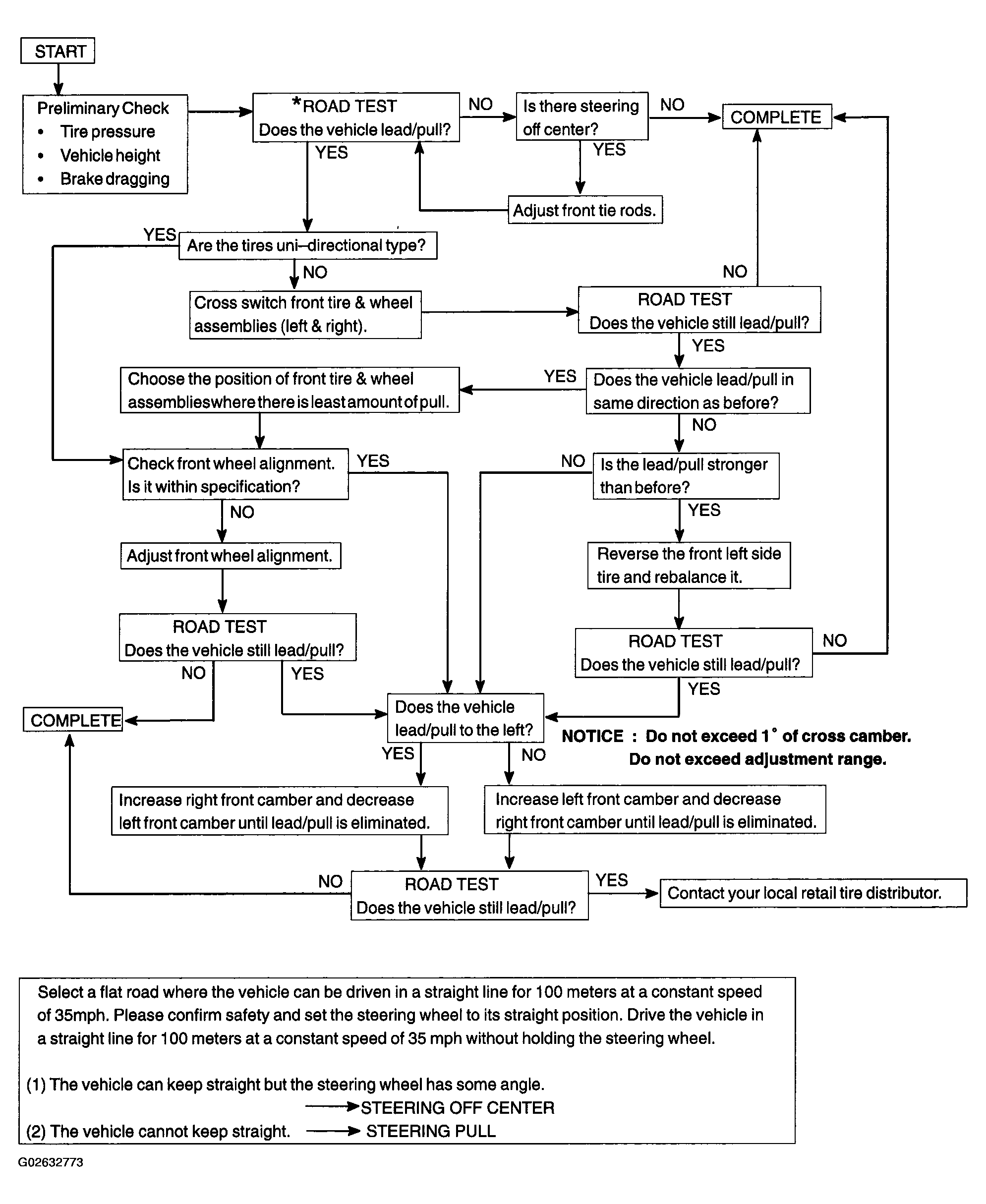

Fig 1: Vehicle Pulling Diagnostic Flow Chart

G02632773

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
