Transmission Control Cable ASSY (ATM): Replacement

PRECAUTION (SEE ON-VEHICLE INSPECTION )
SEPARATE BATTERY NEGATIVE TERMINAL
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (SEE REPLACEMENT )
REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CTR (SEE REPLACEMENT )
REMOVE INSTRUMENT PANEL BOX (SEE REPLACEMENT )
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (SEE REPLACEMENT )
REMOVE AIR BAG SENSOR ASSY CENTER (SEE REPLACEMENT )
SEPARATE OXYGEN SENSOR CONNECTOR
1. Remove the foot rest.
2. Pull up the floor carpet.
3. Disconnect the oxygen sensor connector.
REMOVE FLOOR PANEL BRACE FRONT
1. Remove the 2 nuts and floor panel brace.
REMOVE EXHAUST PIPE ASSY FRONT (SEE REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY )
REMOVE FRONT FLOOR HEAT INSULATOR NO. 1
1. Remove the 3 nuts and heat insulator.
REMOVE AIR CLEANER ASSEMBLY WITH HOSE
REMOVE TRANSMISSION CONTROL CABLE ASSY
1. Remove the nut and disconnect control cable from control shaft lever.
2. Remove the clip and disconnect the control cable from the bracket.

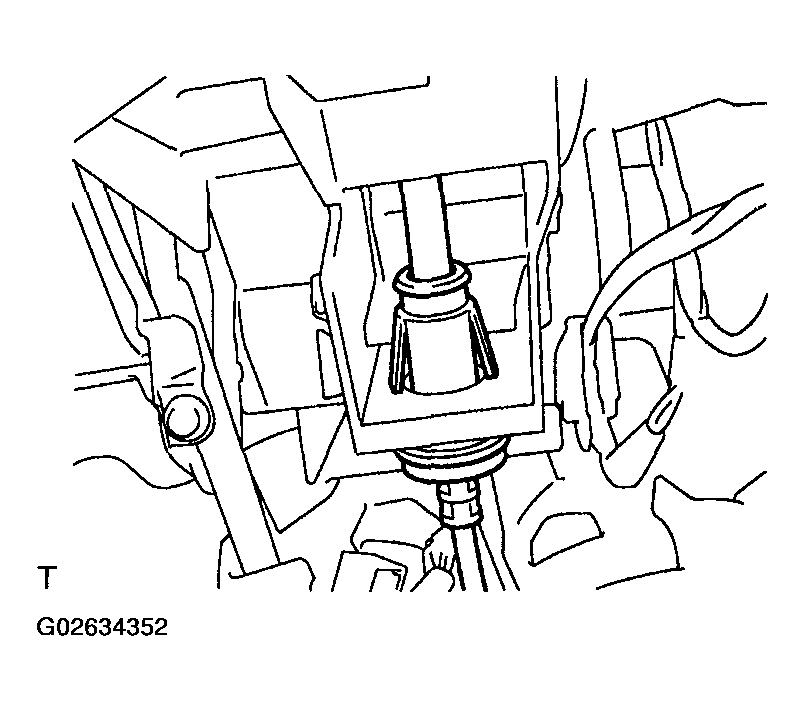

  Fig 1: Disconnecting Control Cable From Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the control cable from control cable support.

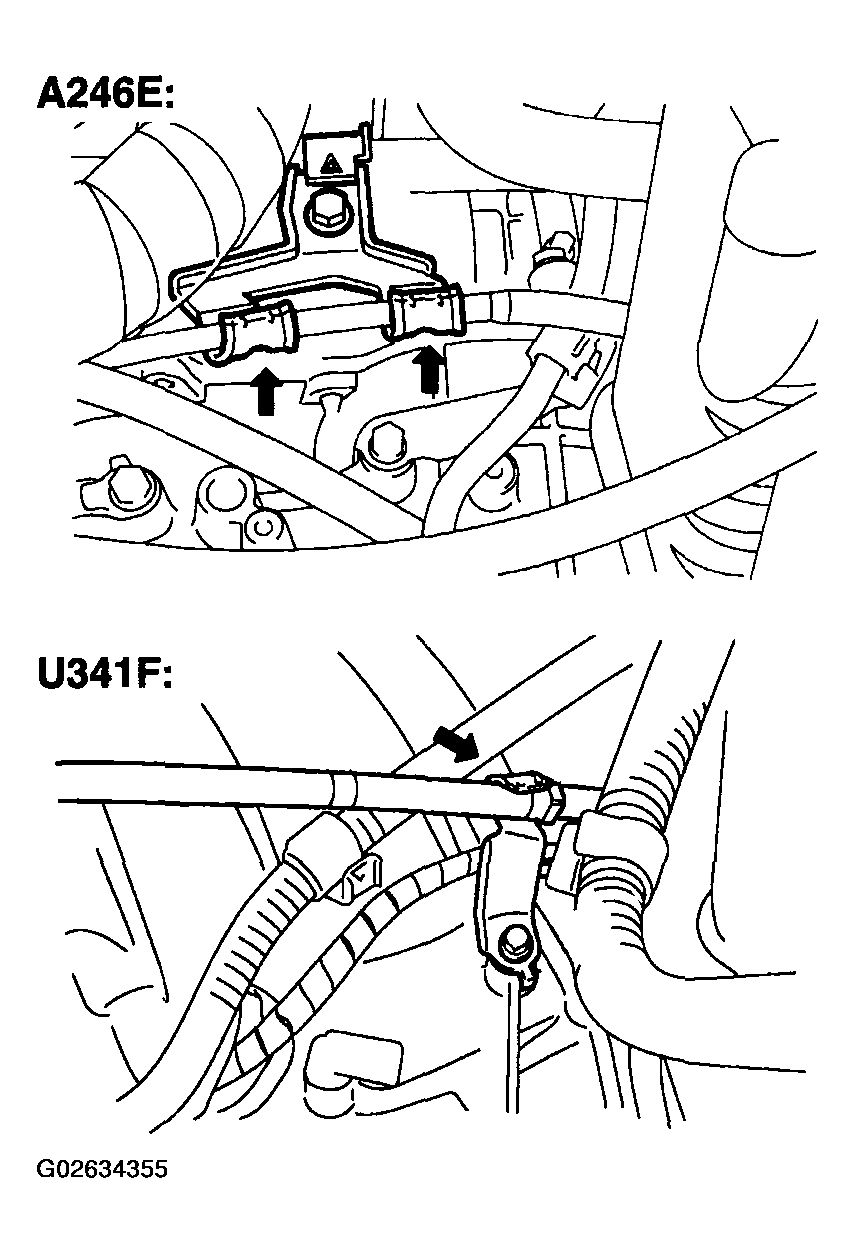

  Fig 2: Disconnecting Control Cable From Control Cable Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 2 nuts and separate the control cable from the body.

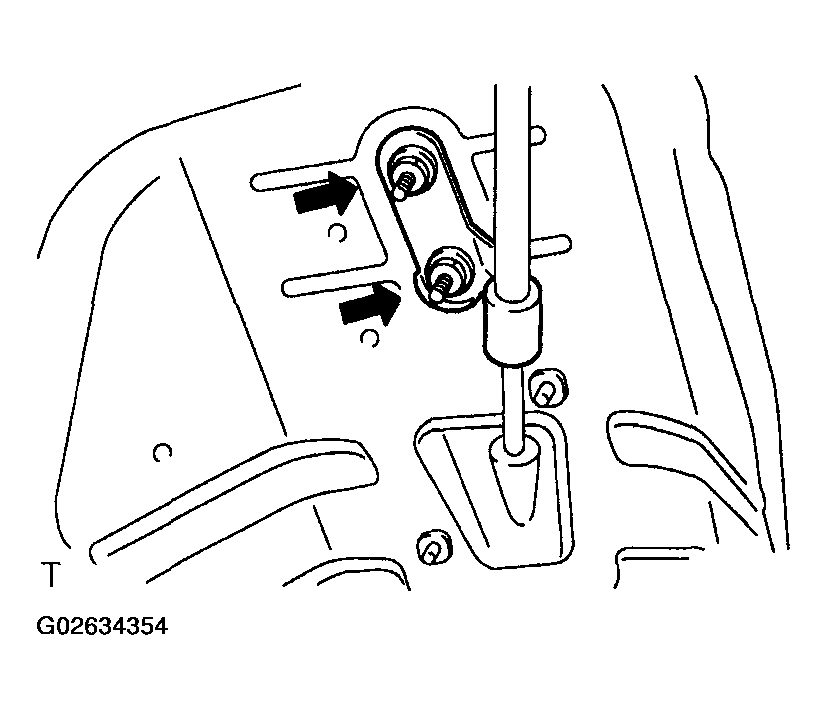

  Fig 3: Separating Control Cable From Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the cable end from the floor shift assy.

  Fig 4: Removing Cable End From Floor Shift Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Using a screwdriver, disconnect the control cable from the shift lever plate.
  HINT: Tape up the screwdriver tip before use.

  Fig 5: Disconnecting Control Cable From Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Remove the 2 bolts.
8. Pull out the control cable assy from the body.
9. Remove the retainer from the shift cable.
INSTALL TRANSMISSION CONTROL CABLE ASSY
1. Install the retainer to the shift cable.
2. Pull in the control cable assy to the body.

  Fig 6: Pulling Out Control Cable Assy From Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 2 bolts.
  Torque: 5.0 N.m (50 kgf.cm, 44 in.lbf)

  Fig 7: Installing Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the control cable to the shift lever plate.

  Fig 8: Installing Control Cable To Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the control cable end to the floor shift assy.
  HINT: Install it with the uneven surface facing up.

  Fig 9: Connecting Control Cable End To Floor Shift Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install the control cable with the 2 nuts to the body.
  Torque: 5.0 N.m (50 kgf.cm, 44 in.lbf)

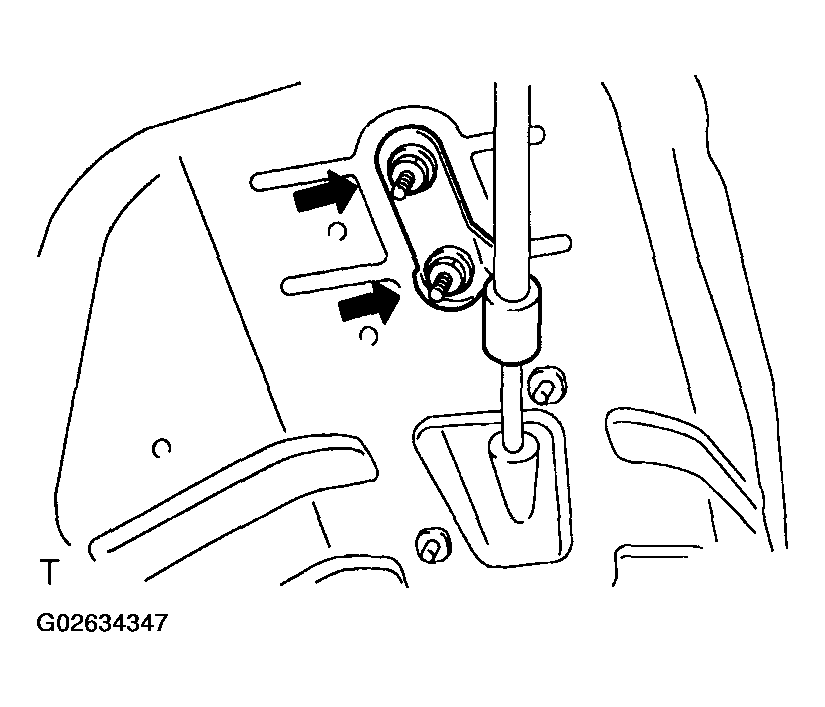

  Fig 10: Installing Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Connect the control cable to the control cable support.
8. Temporarily install the control cable to the control shaft lever with nut.

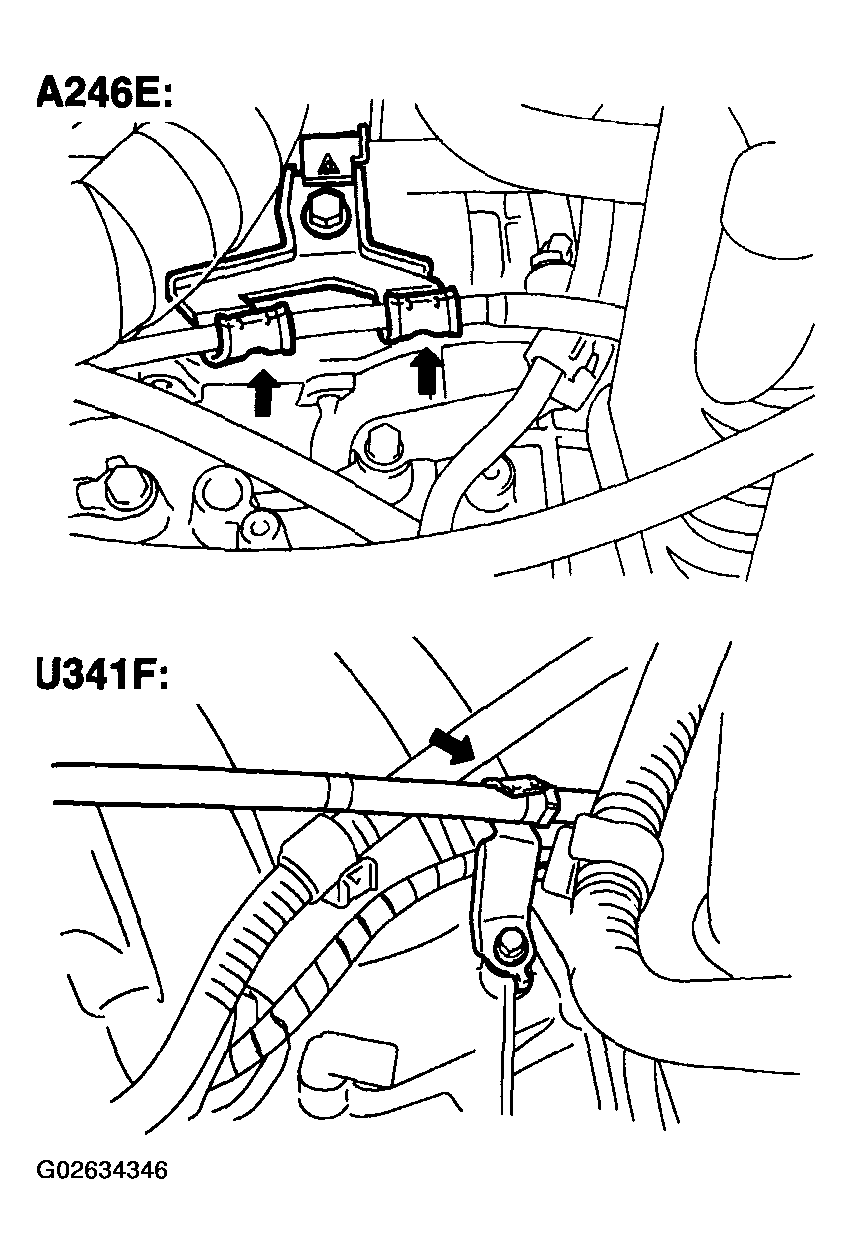

  Fig 11: Connecting Control Cable To Control Cable Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Install the control cable with the clip to the bracket.
NOTE: Insert the cable securely.

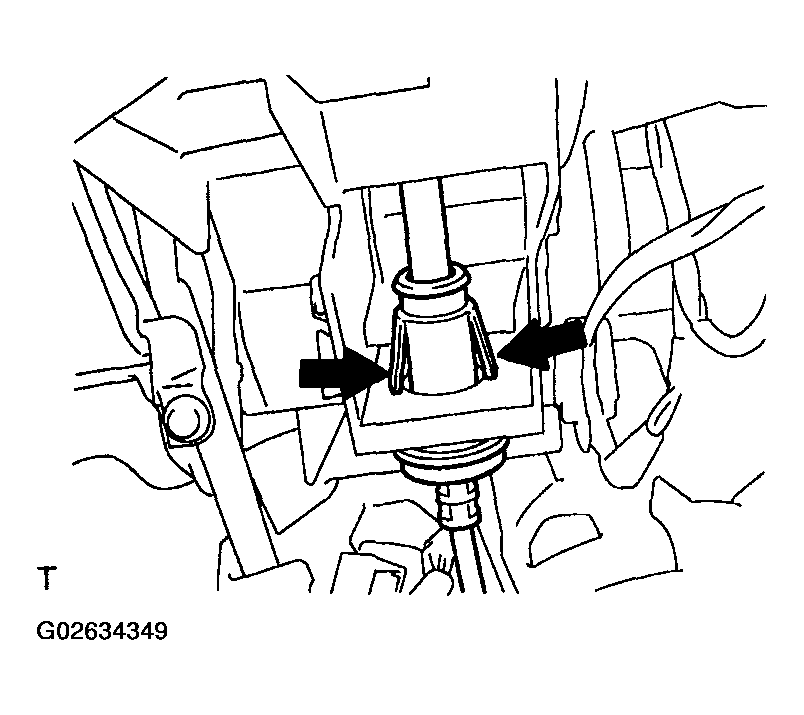

Fig 12: Installing Control Cable With Clip To Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER ASSEMBLY WITH HOSE
Torque: 7.0 N.m (71 kgf.cm, 62 in.lbf)
INSTALL FRONT FLOOR HEAT INSULATOR NO. 1
1. Install the heat insulator with the 3 nuts.
  Torque: 5.0 N.m (50 kgf.cm, 44 in.lbf)
INSTALL EXHAUST PIPE ASSY FRONT (SEE REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY )
INSTALL FLOOR PANEL BRACE FRONT
1. Install the floor panel brace with the 2 nuts.
  Torque: 30 N.m (302 kgf.cm, 22 ft.lbf)
INSTALL OXYGEN SENSOR CONNECTOR
1. Connect the oxygen sensor connector.
2. Install the floor carpet and foot rest.
INSTALL AIR BAG SENSOR ASSY CENTER
SST 09249-63010
ADJUST SHIFT LEVER POSITION (SEE ADJUSTMENT )
INSPECT SHIFT LEVER POSITION (SEE ADJUSTMENT )
INSPECT SRS WARNING LIGHT
