Automatic Transaxle ASSY (U341F): Components

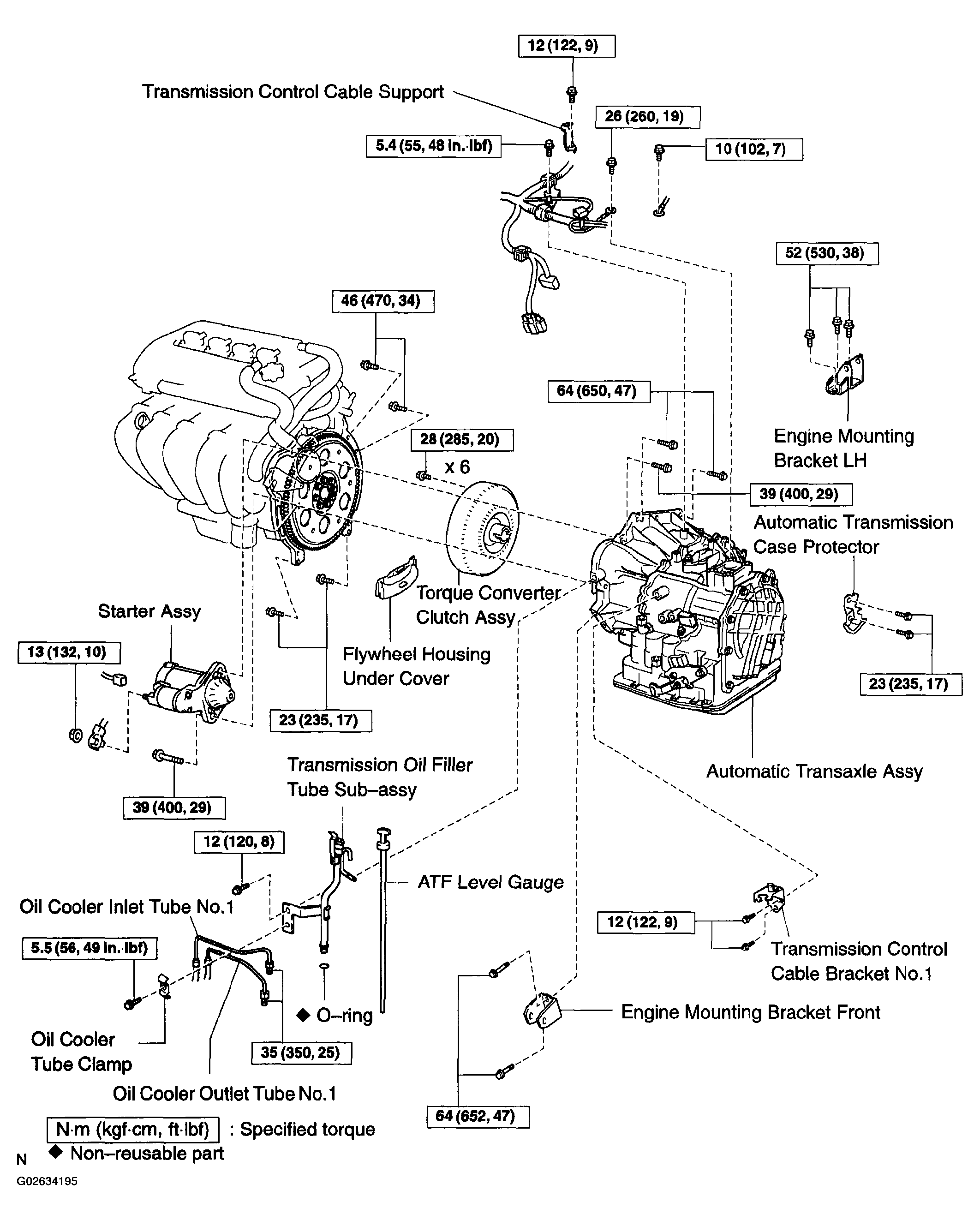

Fig 1: Automatic Transaxle Assy (U341F) Replacement Components With Torque Specifications

G02634195

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
