Lower Ball Joint ASSY Front LH: Replacement

HINT: COMPONENTS: See FRONT SUSPENSION .

1. INSPECT LOWER BALL JOINT ASSY FRONT LH
   1. Jack up front side of the vehicle.
   2. Check the rattle of the lower ball joint assy front LH.

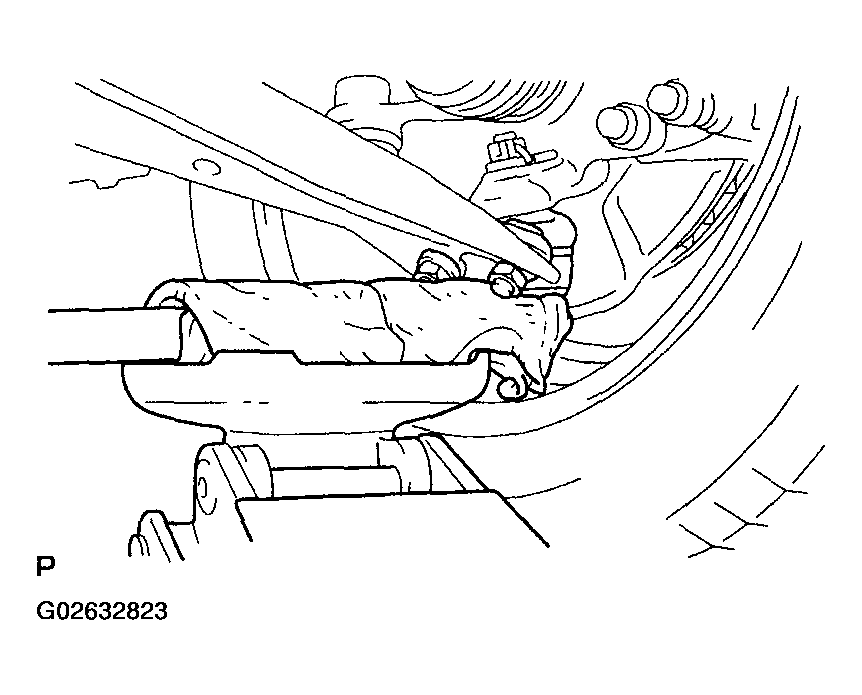

   Fig 1: Jacking Up Front Side Of Vehicle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE FRONT WHEEL
3. REMOVE FRONT AXLE HUB LH NUT (See  OVERHAUL OVERHAUL  )

   SST 09930-00010

4. DISCONNECT SPEED SENSOR FRONT LH (W/ABS) (See  OVERHAUL OVERHAUL  )
5. SEPARATE TIE ROD END SUB-ASSY LH (See  OVERHAUL OVERHAUL  )

   SST 09628-62011

6. SEPARATE FRONT SUSPENSION ARM SUB-ASSY LOWER NO.1 LH (See  OVERHAUL OVERHAUL  )
7. SEPARATE FRONT AXLE ASSY LH (See  OVERHAUL OVERHAUL  )
8. REMOVE LOWER BALL JOINT ASSY FRONT LH
   1. Remove the cotter pin and castle nut.
   2. Using SST, remove the lower ball joint assy from the steering knuckle LH.

      SST 09628-62011

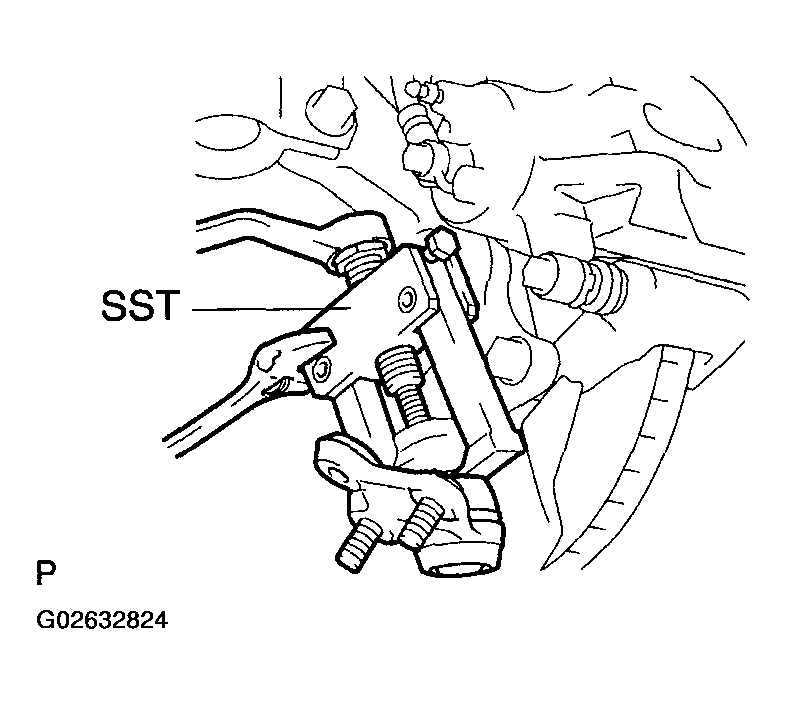

      Fig 2: Removing Lower Ball Joint Assy From Steering Knuckle LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. INSPECT LOWER BALL JOINT ASSY FRONT LH
   1. As shown in the illustration, flip the ball joint stud back and forth 5 times, before installing the nut.
   2. Using a torque wrench, turn the nut continuously at a rate of 3 - 5 seconds per 1 turn and take the torque reading on the 5th turn.

      Turning torque:

      0.98 - 4.9 N.m (10-50 kgf.cm, 8.7 - 43 in. lbf)

      Fig 3: Checking Tightening Torque

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. INSTALL LOWER BALL JOINT ASSY FRONT LH
    1. Install the lower ball joint assy front LH to the steering knuckle LH, tighten the castle nut.

       Torque: 103 N.m (1050 kgf.cm, 76 ft.lbf)

    2. Install a new cotter pin.
11. INSTALL FRONT AXLE ASSY LH (See  OVERHAUL OVERHAUL  )
12. INSTALL FRONT SUSPENSION ARM SUB-ASSY LOWER NO.1 LH (See  OVERHAUL OVERHAUL  )
13. INSTALL TIE ROD END SUB-ASSY LH (See  OVERHAUL OVERHAUL  )
14. INSTALL SPEED SENSOR FRONT LH (W/ABS) (See  OVERHAUL OVERHAUL  )
15. INSTALL FRONT AXLE HUB LH NUT (See  OVERHAUL OVERHAUL  )

    SST 09931-00020

16. INSTALL FRONT WHEEL

    Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

17. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT (See  FRONT WHEEL ALIGNMENT  )
18. CHECK ABS SPEED SENSOR SIGNAL (W/ABS) (See  DTC CHECK/CLEAR  )
