Vane Pump ASSY: Components

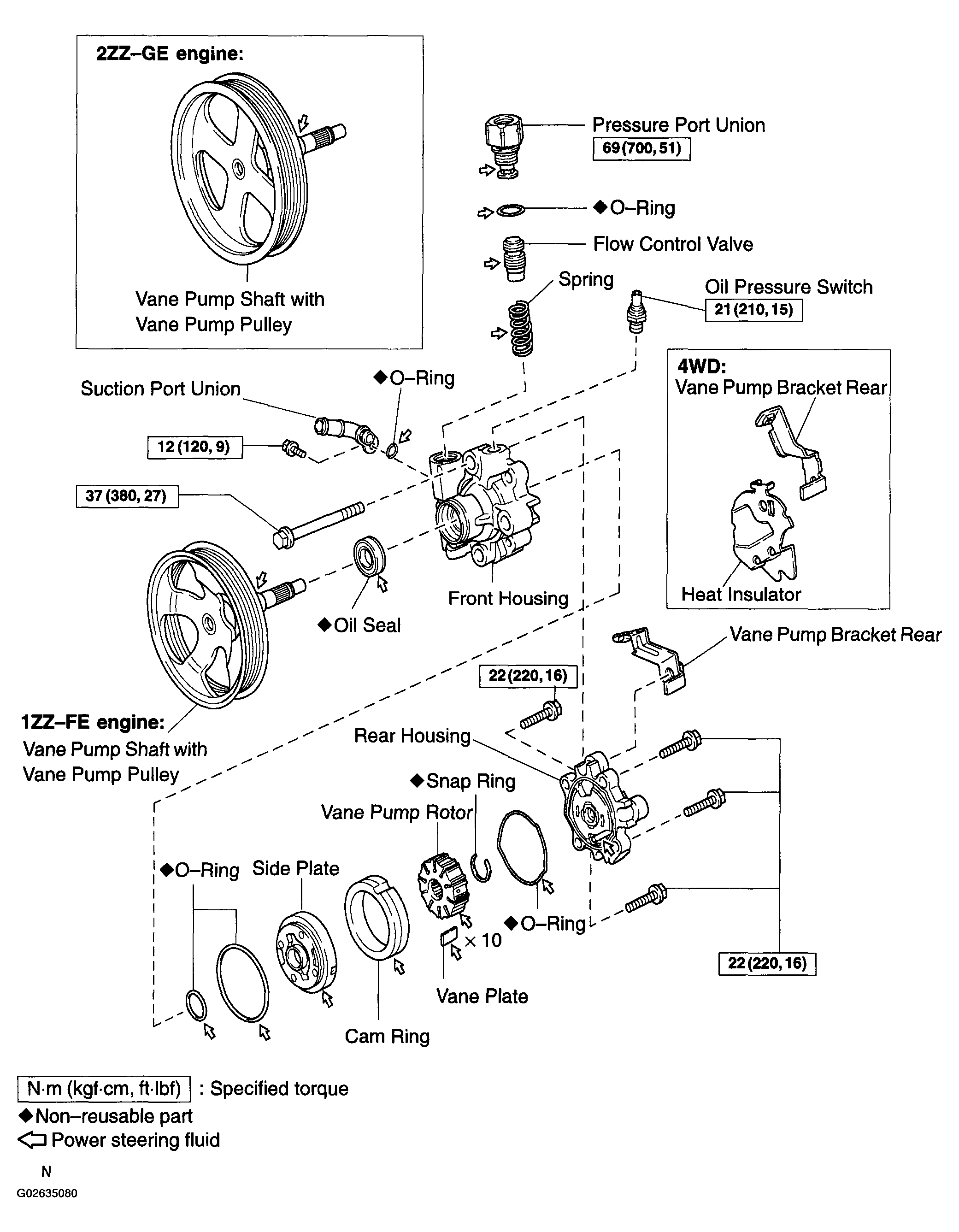

Fig 1: Vane Pump Assy Replacement Components With Torque Specifications

G02635080

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
