Horn Button ASSY
>>
Components
Horn Button ASSY: Components

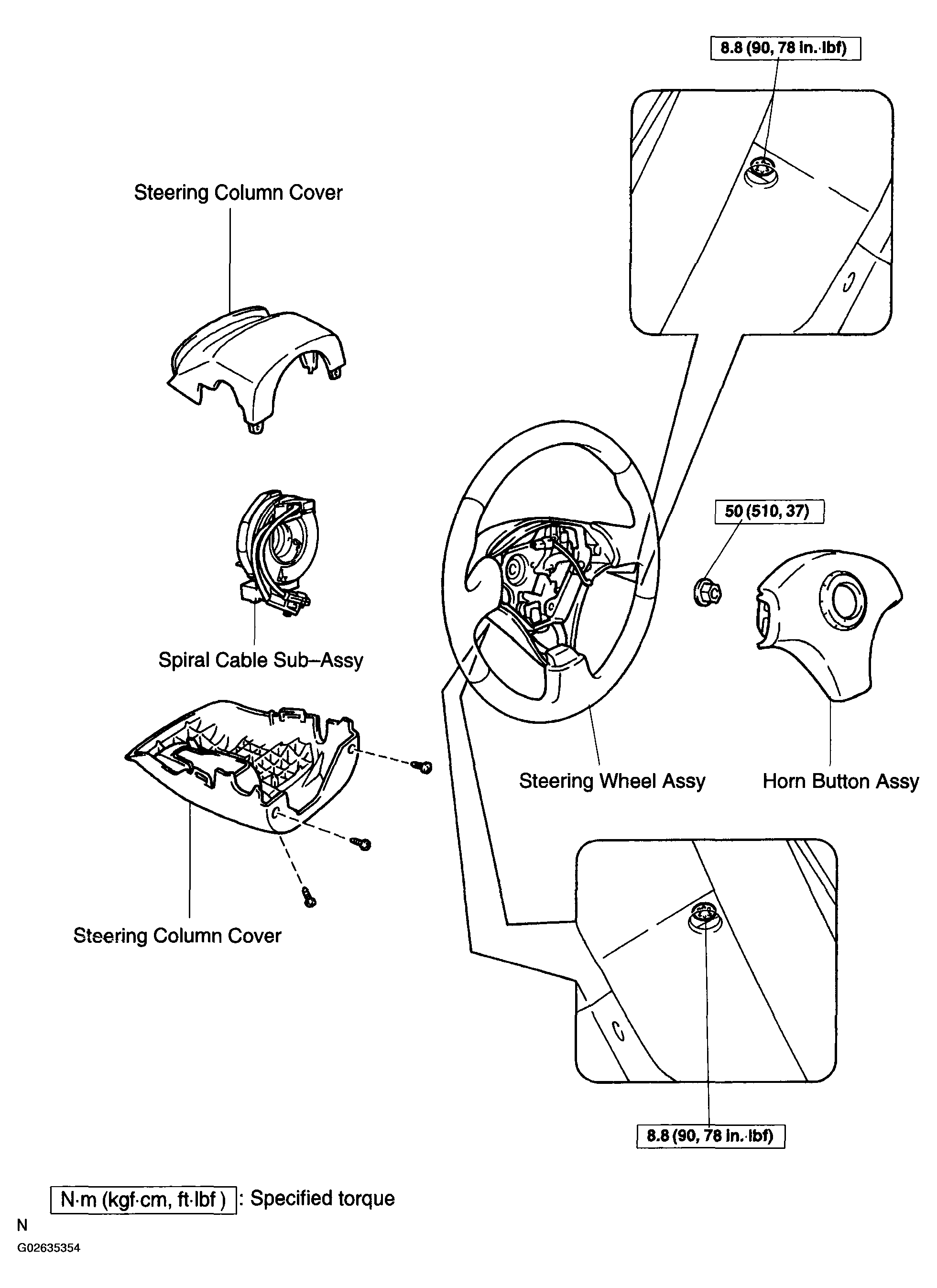

Fig 1: Horn Button Assy Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
