Home >> Toyota >> 2005 >> Matrix Base, 4WD >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Restraint System >> Airbag Sensor Front LH >> Components

Airbag Sensor Front LH: Components

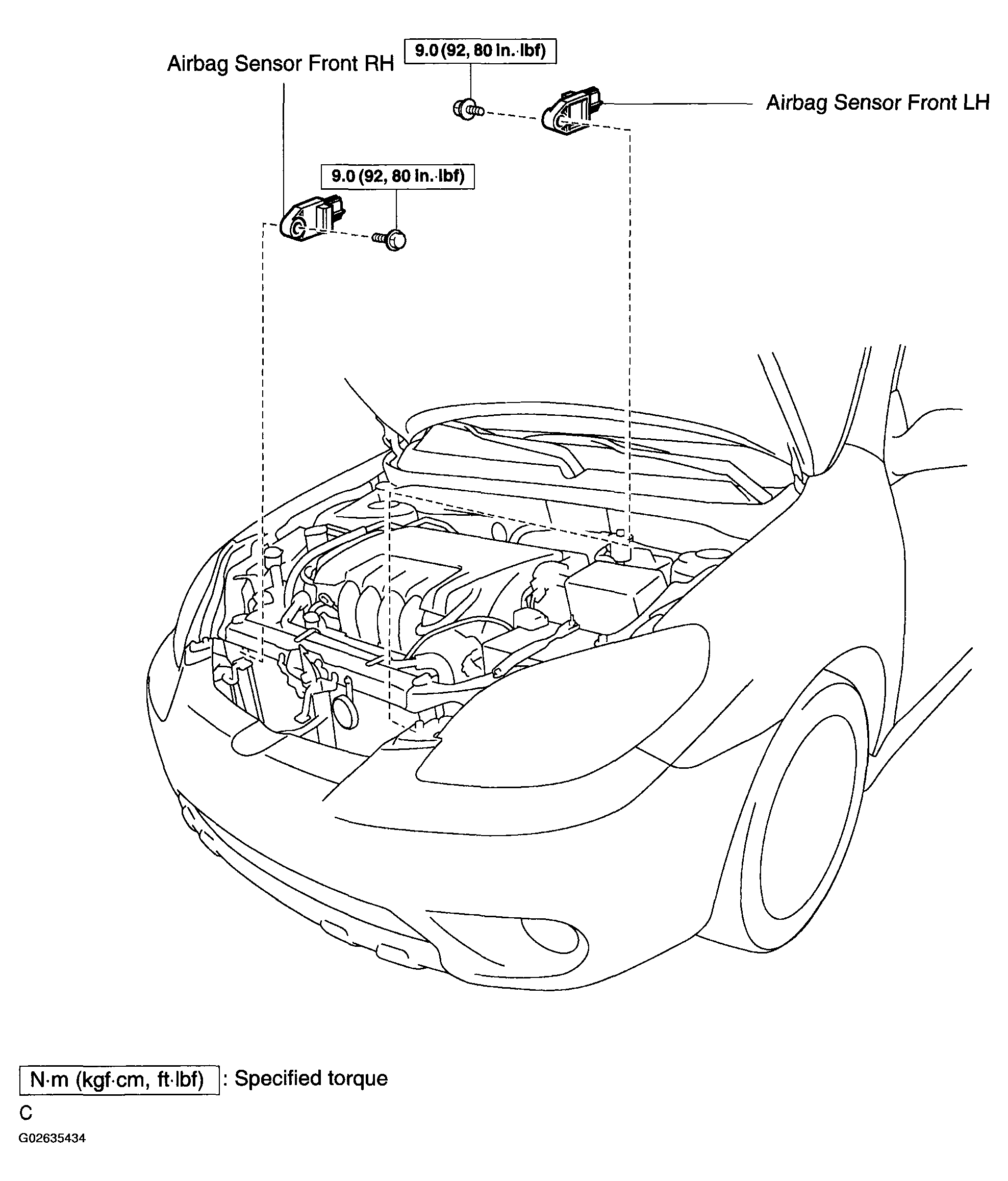

Fig 1: Airbag Sensor Front LH Replacement Components With Torque Specifications

G02635434

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
