Engine Mechanical: Preparation

SST

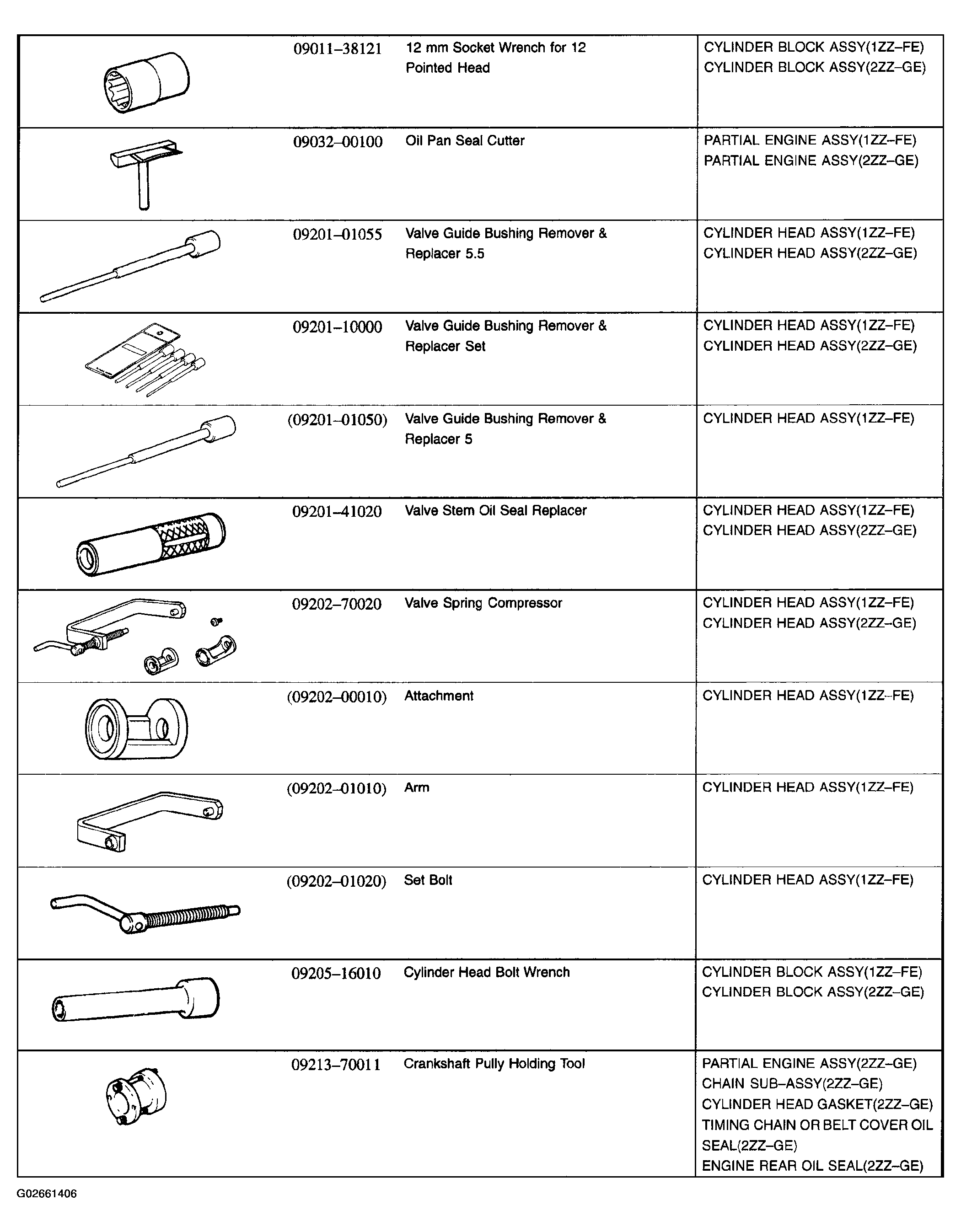

Fig 1: Special Service Tools Description Chart (Engine Mechanical) (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

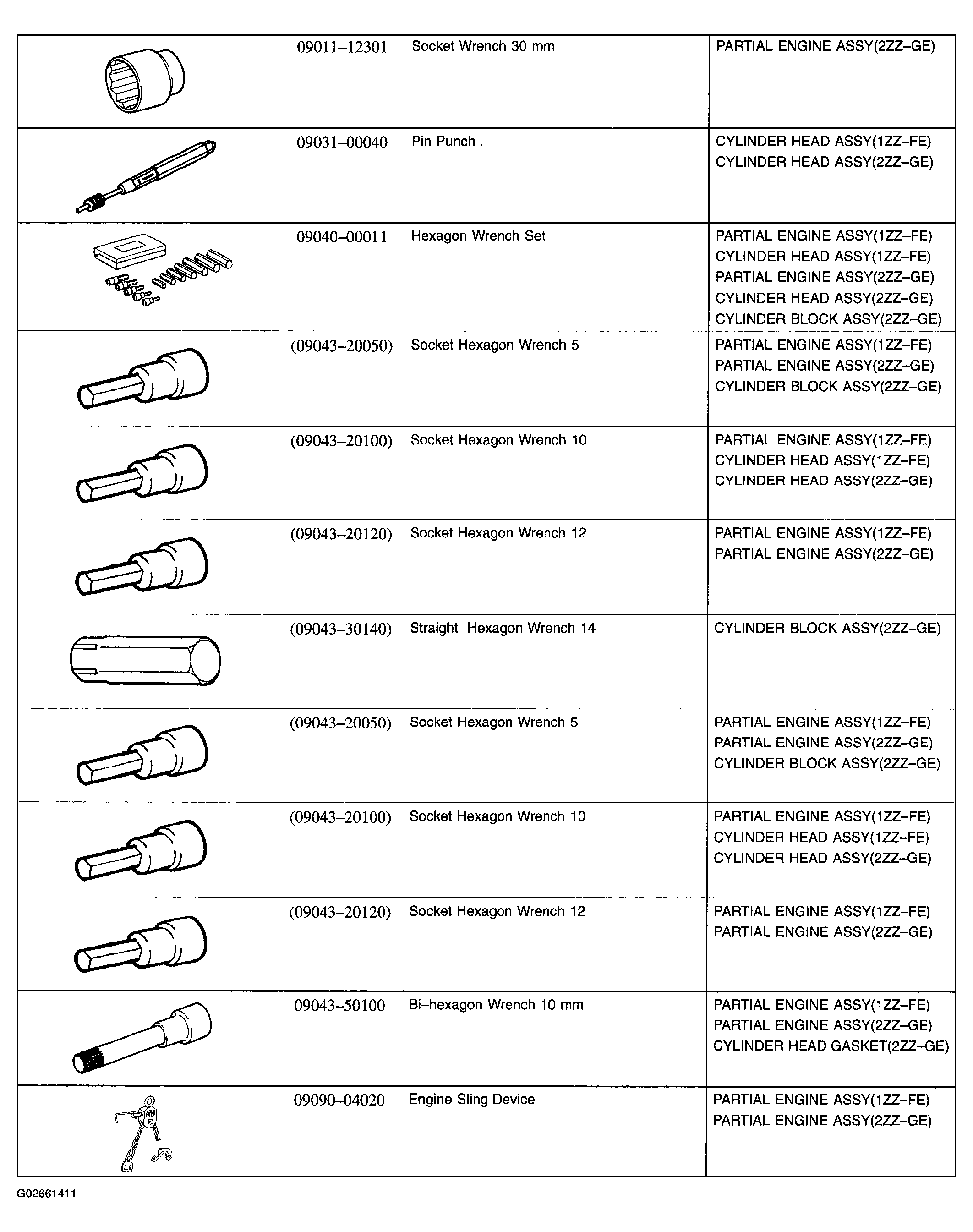

Fig 2: Special Service Tools Description Chart (Engine Mechanical) (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

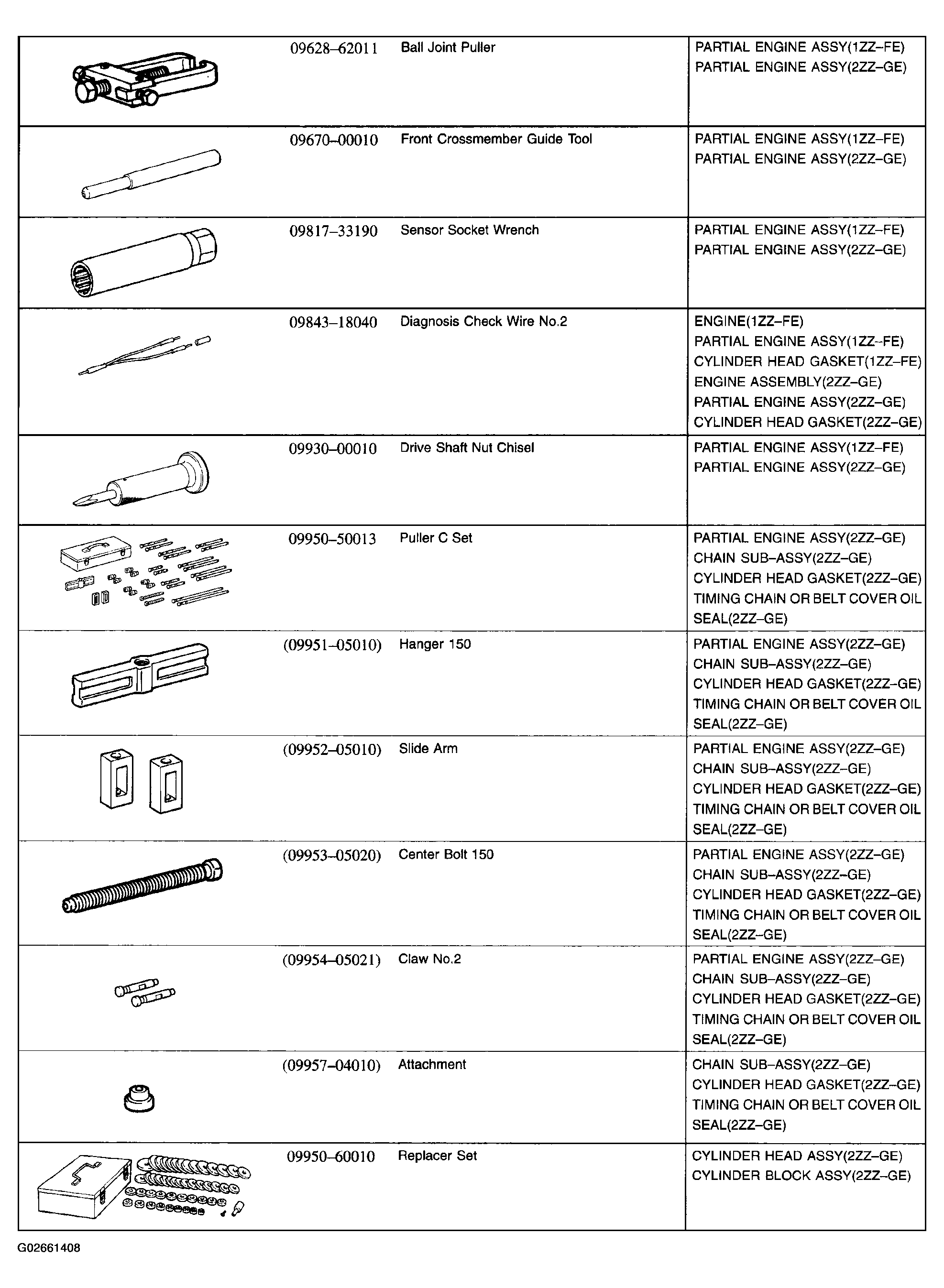

Fig 3: Special Service Tools Description Chart (Engine Mechanical) (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Special Service Tools Description Chart (Engine Mechanical) (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

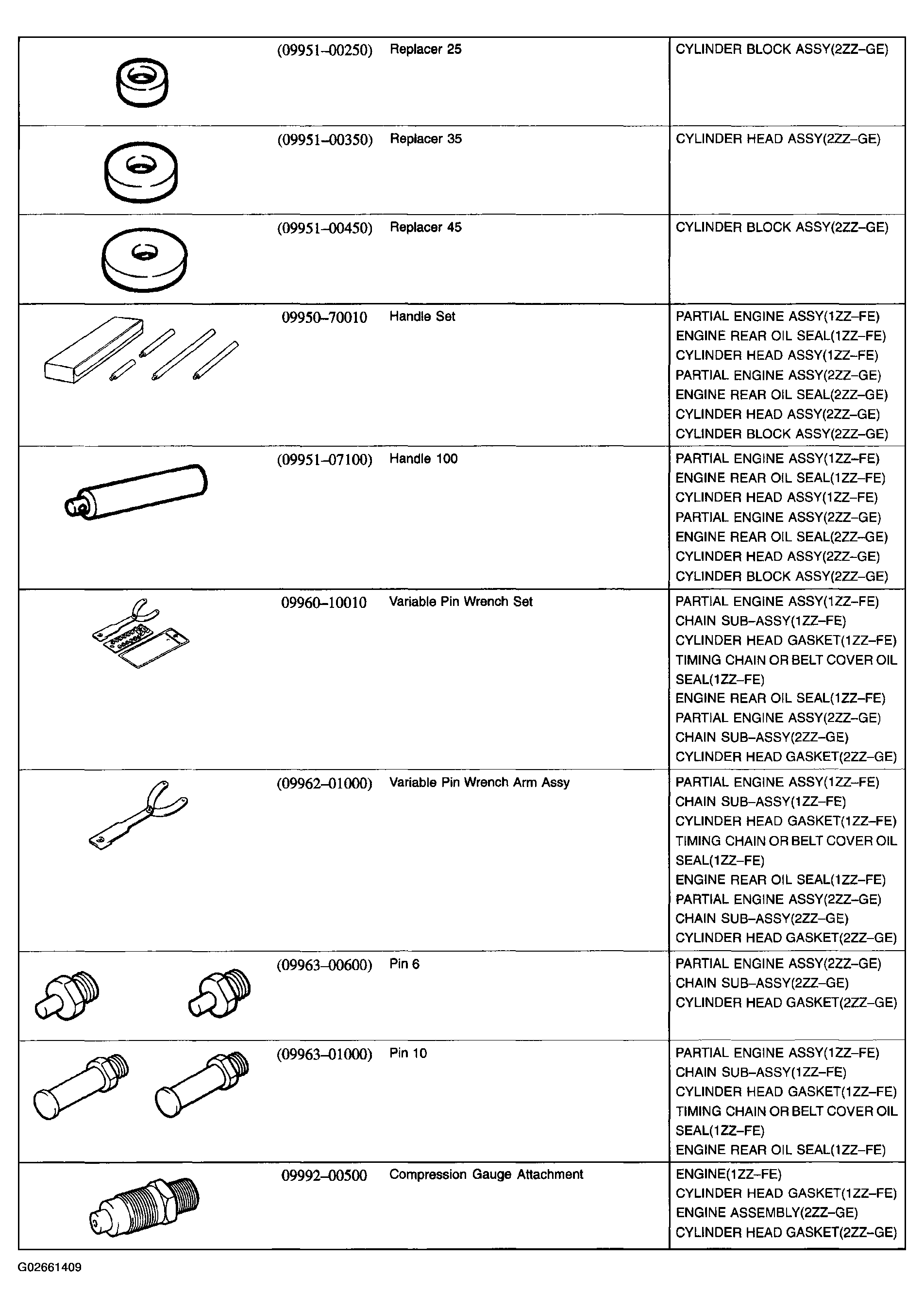

Fig 5: Special Service Tools Description Chart (Engine Mechanical) (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

Fig 6: Recommended Tools Description Chart (Engine Mechanical) (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Recommended Tools Description Chart (Engine Mechanical) (2 Of 2)

SSM

SPECIAL SERVICE MATERIALS DETAILS

08826-00080	Seal Packing Black or equivalent (FIPG)	VALVE CLEARANCE(1ZZ-FE) PARTIAL ENGINE ASSY(1ZZ-FE) CHAIN SUB-ASSY(1ZZ-FE) CAMSHAFT(1ZZ-FE) CYLINDER HEAD GASKET(1ZZ-FE) CYLINDER BLOCK ASSY(1ZZ-FE) VALVE CLEARANCE(2ZZ-GE) PARTIAL ENGINE ASSY(2ZZ-GE) CHAIN SUB-ASSY(2ZZ-GE) CAMSHAFT(2ZZ-GE) CYLINDER HEAD GASKET(2ZZ-GE) CYLINDER BLOCK ASSY(2ZZ-GE)
08826-00100	"Seal Packing 1282B," THREE BOND 1282B or equivalent (FIPG)	PARTIAL ENGINE ASSY(1ZZ-FE) PARTIAL ENGINE ASSY(2ZZ-GE) CYLINDER HEAD GASKET(2ZZ-GE)
08833-00070	"Adhesive 1324," THREE BOND 1324 or equivalent	PARTIAL ENGINE ASSY(1ZZ-FE) ENGINE REAR OIL SEAL(1ZZ-FE) PARTIAL ENGINE ASSY(2ZZ-GE) CYLINDER HEAD ASSY(2ZZ-GE) CYLINDER BLOCK ASSY(2ZZ-GE)
08833-00080	Adhesive 1344 THREE BOND 1344 LOCTITE 242 or equivalent	CYLINDER BLOCK ASSY(1ZZ-FE) PARTIAL ENGINE ASSY(2ZZ-GE) CYLINDER BLOCK ASSY(2ZZ-GE)

Equipment

EQUIPMENT DETAILS (1 OF 2)

Reamer
V-block
Piston ring expander
Valve seat cutter
Micrometer
Dial indicator
Spring tension gauge
Feeler gauge
CO/HC meter
Cylinder gauge
Precision straight edge
Radiator cap tester
Steel square
Straight edge
Torque wrench
Vernier calipers
Dial indicator with magnetic base
Alignment tester
Toe-in gauge
Spring tension gauge
Slide calipers
Sandpaper(#400)
Piston heater

EQUIPMENT DETAILS (2 OF 2)
