Throttle Body ASSY (1ZZ-FE (4WD)): Components: Notes

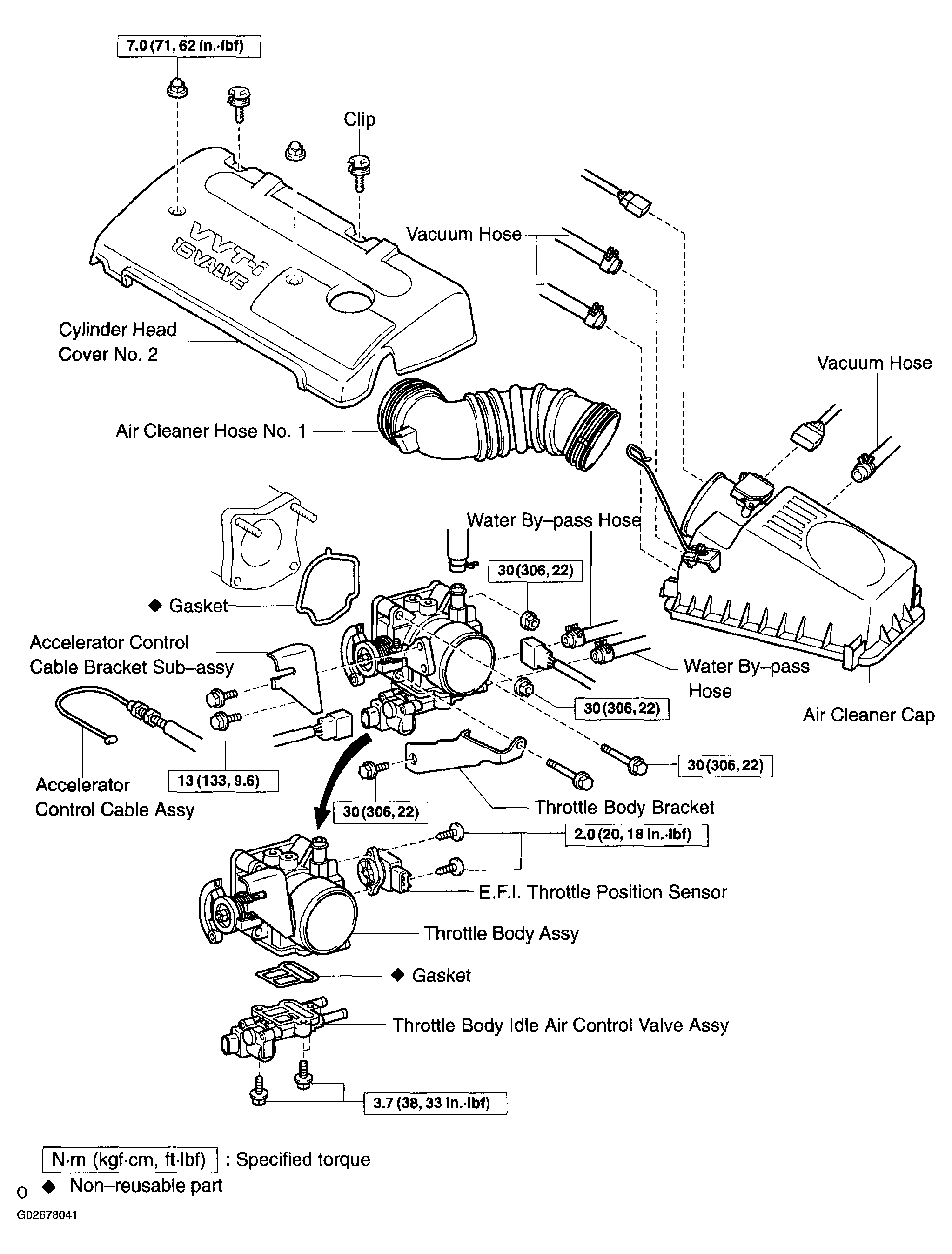

Fig 1: Removing Throttle Body Components With Torque Specifications

G02678041

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
