2UZ-FE 4.7L
HO2S HEATER BANK 1 SENSOR 2
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $42 | $90 | Multiply by 0.001 (A) | Maximum sensor heater current | Minimum test limit | Maximum test limit |
HO2S HEATER BANK 2 SENSOR 2
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $46 | $90 | Multiply by 0.001 (A) | Maximum sensor heater current | Minimum test limit | Maximum test limit |
THERMOSTAT
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $E1 | $E8 | Multiply by 0.1 (°C) | ECT sensor output when estimated ECT reached to malfunction criteria | Malfunction criterion | Maximum test limit |
HO2S BANK 1 SENSOR 2
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $02 | $07 | Multiply by 0.001 (V) | Minimum sensor voltage | Minimum test limit | Maximum test limit |
| $02 | $08 | Multiply by 0.001 (V) | Maximum sensor voltage | Minimum test limit | Maximum test limit |
| $02 | $8F | Multiply by 0.001 (g) | Maximum oxygen storage capacity | 0 | Maximum test limit |
HO2S BANK 2 SENSOR 2
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $06 | $07 | Multiply by 0.001 (V) | Minimum sensor voltage | Minimum test limit | Maximum test limit |
| $06 | $08 | Multiply by 0.001 (V) | Maximum sensor voltage | Minimum test limit | Maximum test limit |
| $06 | $8F | Multiply by 0.001 (g) | Maximum oxygen storage capacity | 0 | Maximum test limit |
MISFIRE MONITOR - ALL CYLINDERS
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $A1 | $OB | Multiply by 1 (time) | Exponential Weighted Moving Average misfire counts for last 10 driving cycles - total | 0 | 65535 |
| $A1 | $OC | Multiply by 1 (time) | Misfire counts for last and current driving cycles - total | 0 | 65535 |
MISFIRE MONITOR - CYLINDER 1
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $A2 | $0B | Multiply by 1 (time) | Exponential Weighted Moving Average misfire counts for last 10 driving cycles - total | 0 | 65535 |
| $A2 | $OC | Multiply by 1 (time) | Misfire counts for last and current driving cycles - total | 0 | 65535 |
MISFIRE MONITOR - CYLINDER 2
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $A3 | $OB | Multiply by 1 (time) | Exponential Weighted Moving Average misfire counts for last 10 driving cycles - total | 0 | 65535 |
| $A3 | $OC | Multiply by 1 (time) | Misfire counts for last and current driving cycles - total | 0 | 65535 |
MISFIRE MONITOR - CYLINDER 3
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $A4 | $OB | Multiply by 1 (time) | Exponential Weighted Moving Average misfire counts for last 10 driving cycles - total | 0 | 65535 |
| $A4 | $0C | Multiple by 1 (time) | Misfire counts for last and current driving cycles - total | 0 | 65535 |
MISFIRE MONITOR - CYLINDER 4
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $A5 | $OB | Multiply by 1 (time) | Exponential Weighted Moving Average misfire counts for last 10 driving cycles - total | 0 | 65535 |
| $A5 | $OC | Multiply by 1 (time) | Misfire counts for last and current driving cycles - total | 0 | 65535 |
MISFIRE MONITOR - CYLINDER 5
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $A6 | $OB | Multiply by 1 (time) | Exponential Weighted Moving Average misfire counts for last 10 driving cycles - total | 0 | 65535 |
| $A6 | $OC | Multiply by 1 (time) | Misfire counts for last and current driving cycles - total | 0 | 65535 |
MISFIRE MONITOR - CYLINDER 6
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $A7 | $OB | Multiply by 1 (time) | Exponential Weighted Moving Average misfire counts for last 10 driving cycles - total | 0 | 65535 |
| $A7 | $OC | Multiply by 1 (time) | Misfire counts for last and current driving cycles - total | 0 | 65535 |
MISFIRE MONITOR - CYLINDER 7
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $A8 | $OB | Multiply by 1 (time) | Exponential Weighted Moving Average misfire counts for last 10 driving cycles - total | 0 | 65535 |
| $A8 | $OC | Multiply by 1 (time) | Misfire counts for last and current driving cycles - total | 0 | 65535 |
MISFIRE MONITOR - CYLINDER 8
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $A9 | $OB | Multiply by 1 (time) | Exponential Weighted Moving Average misfire counts for last 10 driving cycles - total | 0 | 65535 |
| $A9 | $OC | Multiply by 1 (time) | Misfire counts for last and current driving cycles-total | 0 | 65535 |
CATALYST BANK 1 - ACTIVE A/F CONTROL METHOD
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $21 | $A9 | Multiply by 0 0003 (no dimension) | Oxygen storage capacity of catalyst | Minimum test limit for catalyst | Maximum test limit for catalyst |
CATALYST BANK 2 - ACTIVE A/F CONTROL METHOD
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $22 | $A9 | Multiply by 0 0003 (no dimension) | Oxygen storage capacity of catalyst | Minimum test limit for catalyst | Maximum test limit for catalyst |
SECONDARY AIR INJECTION (AIR) SYSTEM
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $71 | $E1 | Multiply by 0.01 (kPa) | Test value of AIR amount insufficient | Minimum test limit | Maximum test limit |
| $71 | $E2 | Multiply by 0 01 (kPa) | Test value of AIR pump stuck ON | Minimum test limit | Maximum test limit |
| $71 | $E3 | Multiply by 0 01 (kPa) | Test value of AIR pump stuck OFF | Minimum test limit | Maximum test limit |
| $71 | $E9 | Multiply by 0 01 (kPa) | Test value of AIR control valve ON | Minimum test limit | Maximum test limit |
| $71 | $E5 | Multiply by 0 01 (kPa) | Test value of AIR control valve OFF | Minimum test limit | Maximum test limit |
| $71 | $E6 | Multiply by 0.01 (kPa) | Test value of AIR pressure change for AIR valve | Minimum test limit | Maximum test limit |
| $71 | $E7 | Multiply by 0.01 (kPa) | Test value of AIR pressure change for AIR VSV bank 1 | Minimum test limit | Maximum test limit |
| $71 | $E5 | Multiply by 0.01 (kPa) | Test value of AIR pressure change for AIR VSV bank 2 | Minimum test limit | Maximum test limit |
| $71 | $E5 | Multiply by 0.01 (kPa) | Test value of AIR pressure pulsation for AIR VSV when AIR pressure is low | Minimum test limit | Maximum test limit |
A/F SENSOR BANK 1 SENSOR 1
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $05 | $91 | Multiply by 0 003906 (mA) | A/F current | Minimum test limit | Maximum test limit |
A/F SENSOR BANK 2 SENSOR 1
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $05 | $91 | Multiply by 0 003906 (mA) | A/F current | Minimum test limit | Maximum test limit |
A/F SENSOR BANK 1 SENSOR
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $01 | $8E | Multiply by 0.0003 (no dimension) | Response rate deterioration level for A/F | Malfunction criterion | FF |
A/F SENSOR BANK 2 SENSOR 1
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit |
|---|---|---|---|---|---|
| $05 | $8E | Multiply by 0.0003 (no dimension) | Response rate deterioration level for A/F sensor | Malfunction criterion | FF |

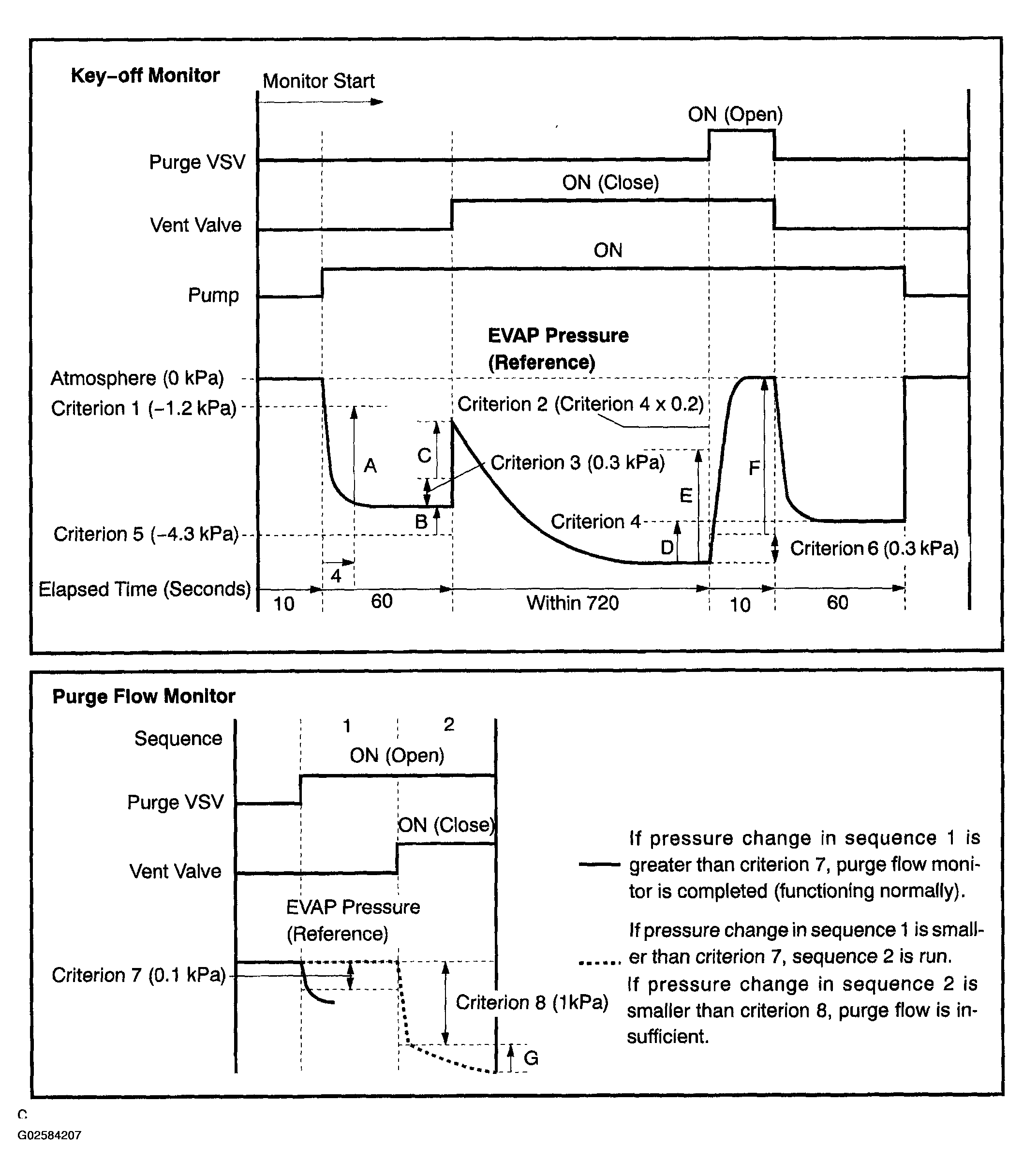

EVAP-KEY-OFF MONITOR
| MID | TID | Scaling | Description of Test Value | Minimum Test Limit | Maximum Test Limit | ||
|---|---|---|---|---|---|---|---|
| $3D | $C9 | Multiply by 0.01 (kPa) | Test value for small leak (P0456): Refer to pressure D(1). |
Minimum test limit for small leak | Maximum test limit for small leak | ||
| $3D | $CA | Multiply by 0.01 (kPa) | Test value for gross leak (Po455): Refer to pressure E(1). |
Minimum test limit for gross leak | Maximum test limit for gross leak | ||
| $3D | $CA | Multiply by 0.01 (kPa) | Test value for vacuum pump stuck OFF (p2401): Refer to pressure A(1). |
Minimum test limit for vacuum pump stuck OFF | Maximum test limit for vacuum pump stuck OFF | ||
| $3D | $CD | Multiply by 0.01 (kPa) | Test value for vacuum pump stuck ON (P2402): Refer to pressure A(1). |
Minimum test limit for vacuum pump stuck ON | Maximum test limit for vacuum pump stuck ON | ||
| $3D | $CE | Multiply by 0.01 (kPa) | Test vacuum for vent valve stuck OFF (vent) (P2420): Refer to pressure C(1). |
Minimum test limit for vent valve stuck ON | Maximum test limit for vent valve stuck ON | ||
| $3D | $CF | Multiply by 0.01 (kPa) | Test value for vent valve stuck ON (closed) (p2419): Refer to pressure A(1). |
Minimum test limit for vent valve stuck OFF | Maximum test limit for vent valve stuck OFF | ||
| $3D | $D0 | Multiply by 0.01 (kPa) | Test value for 0.02 inch orifice low flow (P043E): Refer to pressure B(1). |
Minimum test limit for 0.02 inch orifice low flow | Maximum test limit for 0.02 inch orifice low flow | ||
| $3D | $D1 | Multiply by 0.01 (kPa) | Test value for 0.02 inch orifice high flow (P043F): Refer to pressure A(1). |
Minimum test limit for 0.02 inch orifice high flow | Maximum test limit for 0.02 inch orifice high flow | ||
| $3D | $D4 | Multiply by 0.01 (kPa) | Test value for purge VSV stuck close (P0441): Refer to pressure F(1). |
Minimum test limit for purge VSV stuck close | Maximum test limit for purge VSV stuck close | ||
| $3D | $D5 | Multiply by 0.01 (kPa) | Test value for purge VSV stuck open (P0441): Refer to pressure E(1). |
Minimum test limit for purge VSV stuck open | Maximum test limit for purge VSV stuck open | ||
| $3D | $D76 | Multiply by 0.01 (kPa) | Test value for purge flow (P0441): Refer to pressure G(1). |
Minimum test limit for purge flow | Maximum test limit for purge flow | ||
|
|||||||
