Fuel Suction W/Pump & Gauge Tube ASSY (Ff): Components: Notes

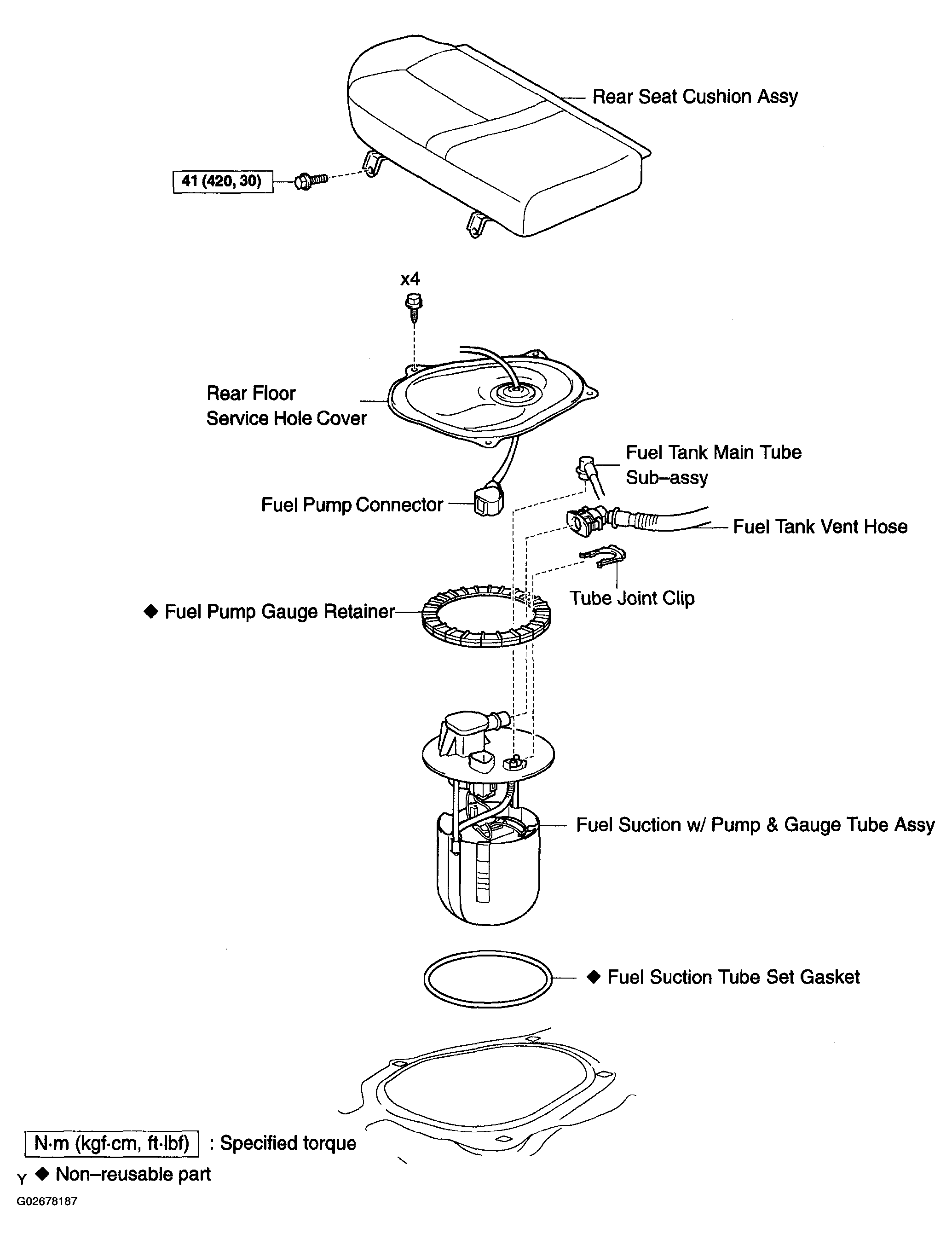

Fig 1: Exploded View Of Fuel Suction W/Pump & Gauge Tube Assy [FF] With Torque Specifications
G02678187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

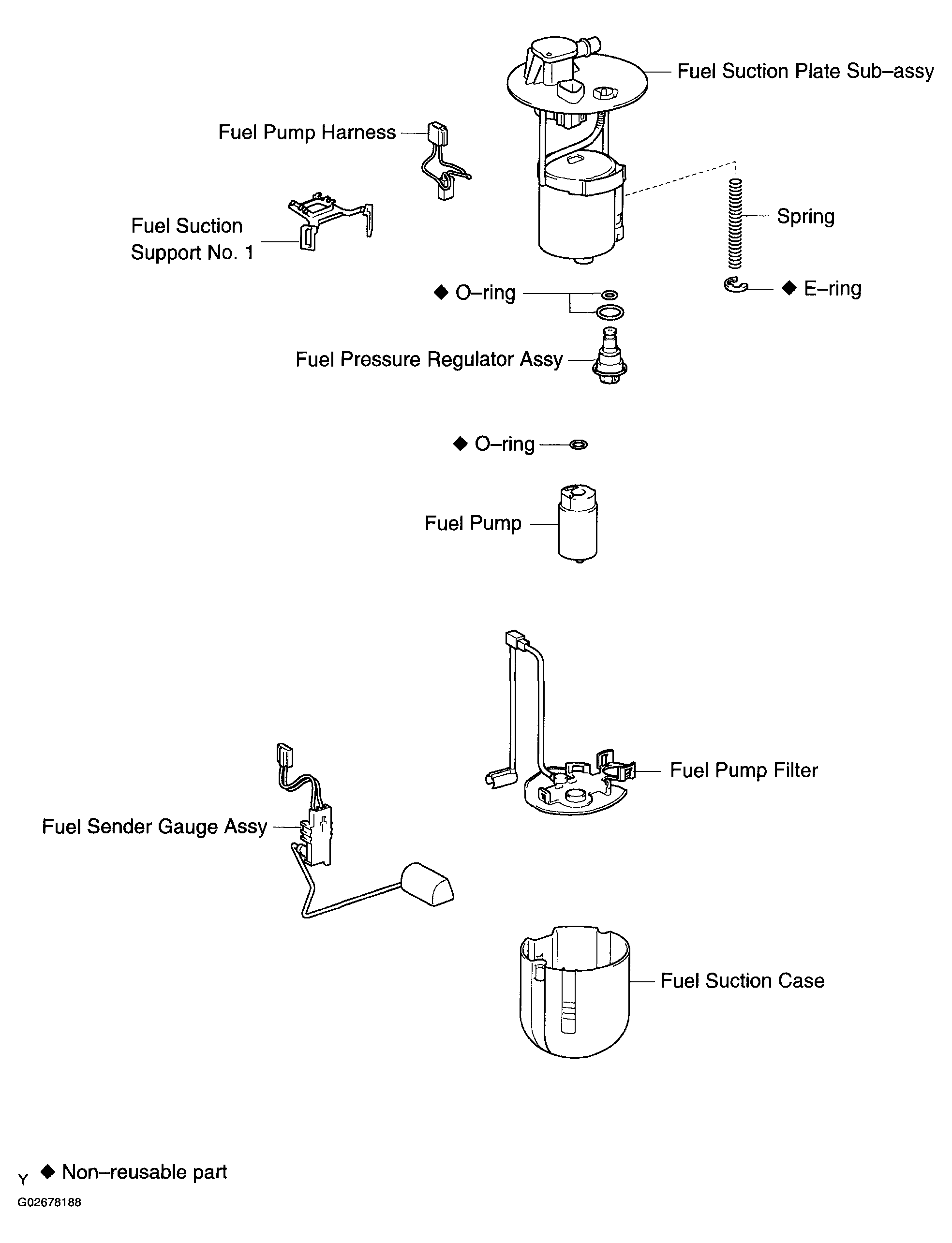

Fig 2: Exploded View Of Fuel Suction W/Pump & Gauge Tube Assy [FF]
G02678188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
