Oil Pump ASSY (1ZZ-FE): Components

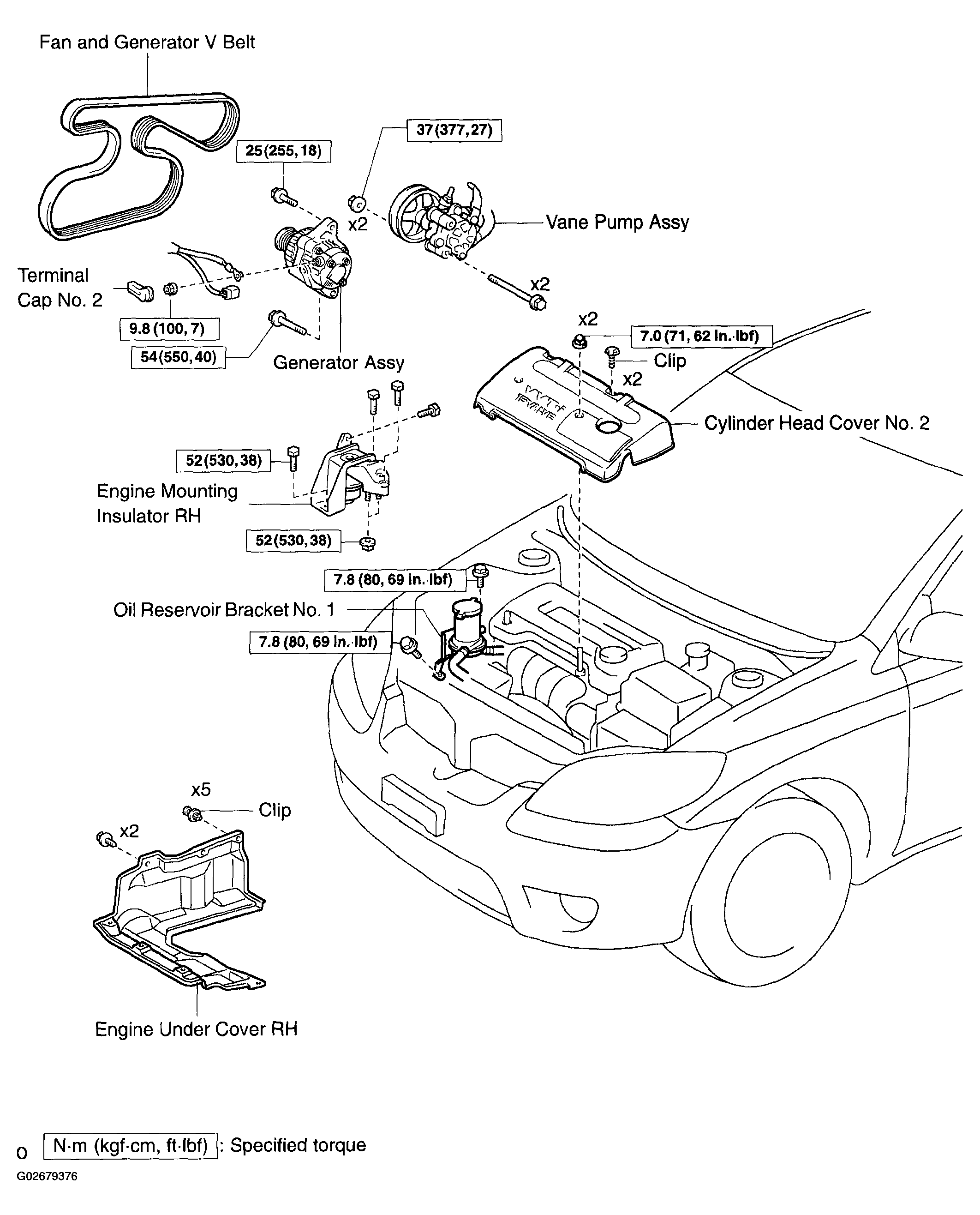

Fig 1: Oil Pump Assy Replacement Components (1ZZ-FE) With Torque Specifications (1 Of 4)
G02679376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

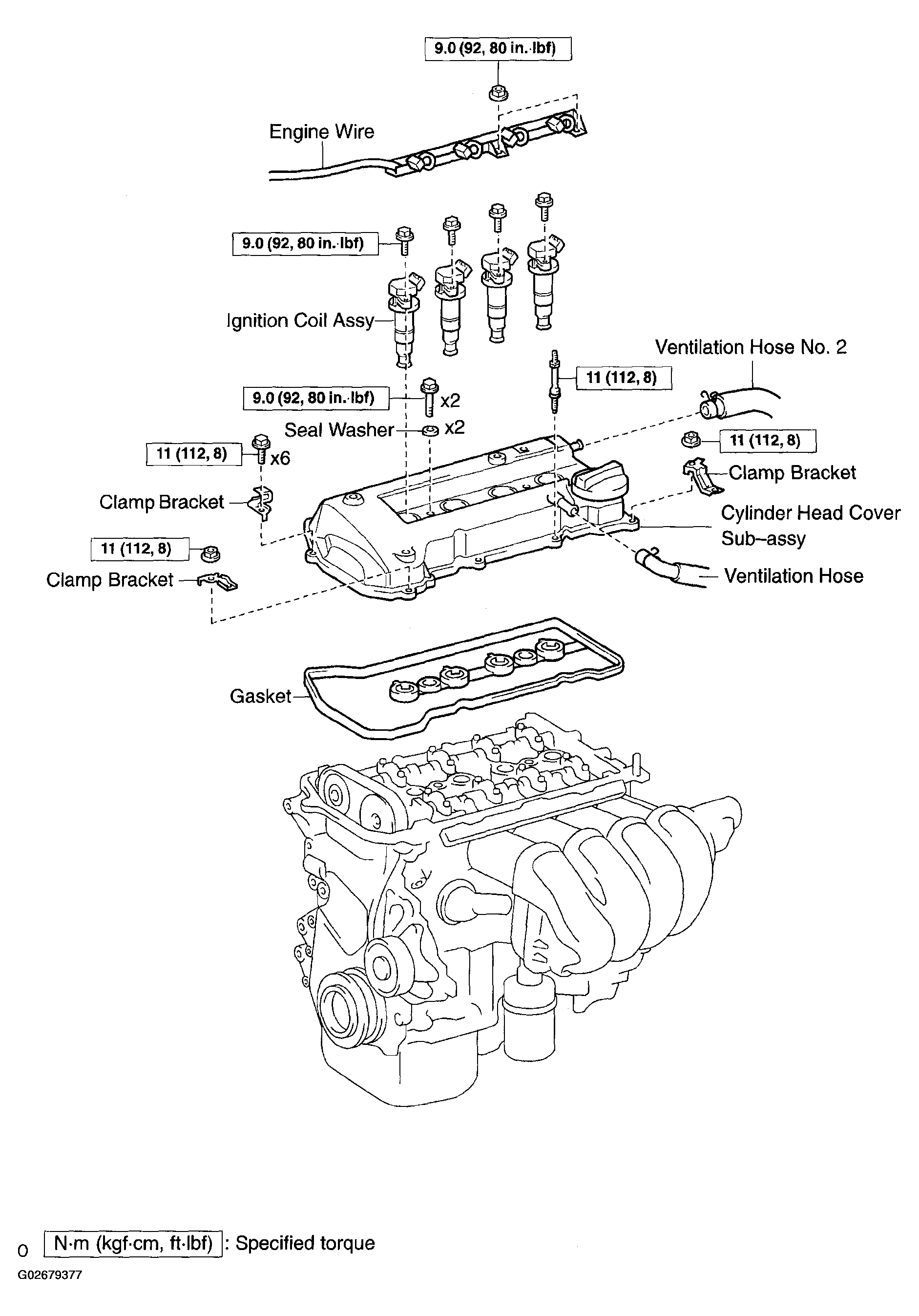

Fig 2: Oil Pump Assy Replacement Components (1ZZ-FE) With Torque Specifications (2 Of 4)
G02679377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

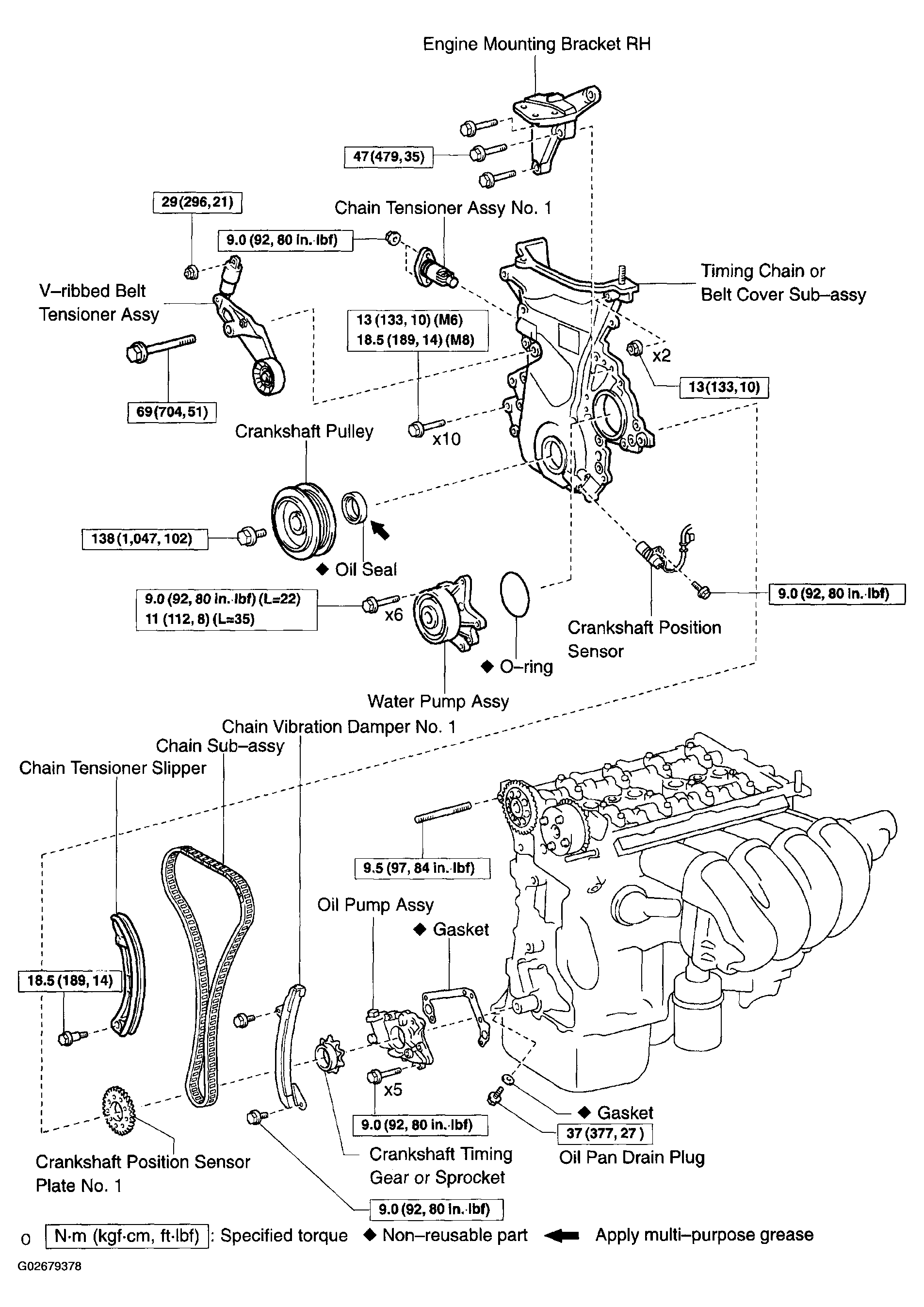

Fig 3: Oil Pump Assy Replacement Components (1ZZ-FE) With Torque Specifications (3 Of 4)
G02679378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

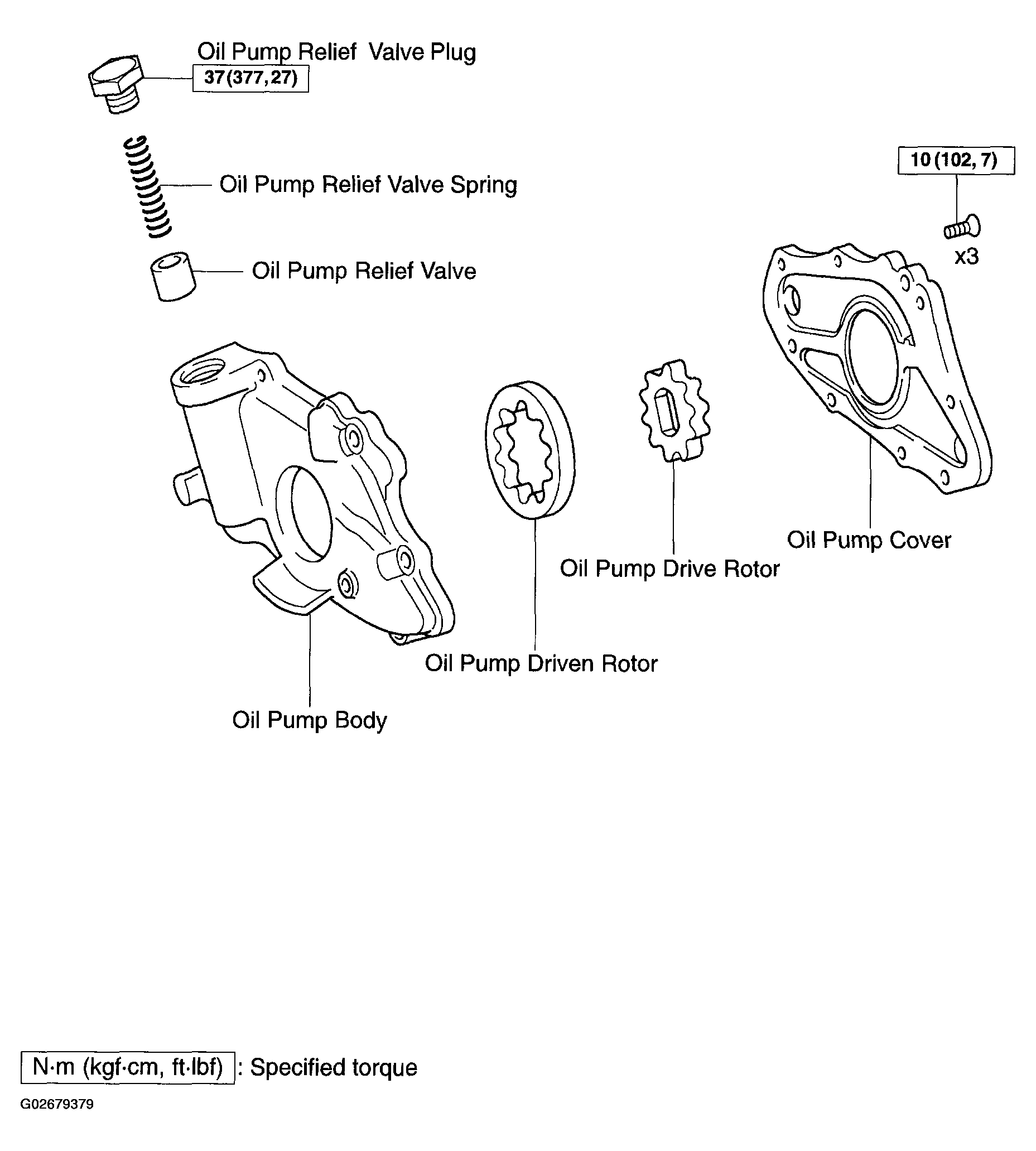

Fig 4: Oil Pump Assy Replacement Components (1ZZ-FE) With Torque Specifications (4 Of 4)
G02679379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
