On-Vehicle Inspection

1. Warm up the engine, then stop the engine and wait for 5 minutes.
2. Check that the engine oil level is between the low level and full level marks on the level gage.

If low, check for leakage and add oil up to the full level mark.

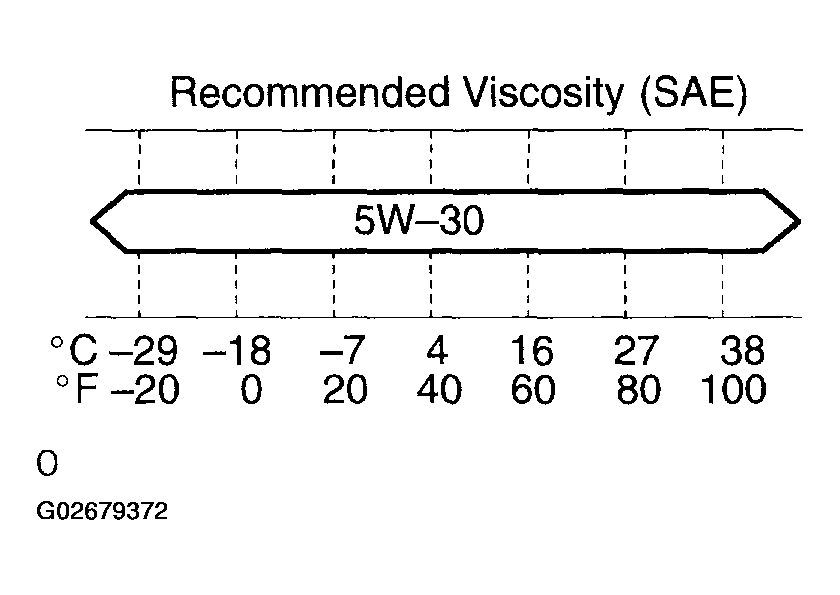

Fig 1: Identifying Engine Oil Viscosity (SAE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check the oil for deterioration, entry of water, discoloring or thinning.

   If the quality is visibly poor, replace the oil.

   1. Oil grade:
   2. Use API grade SL "Energy-Conserving", or ILSAC multigrade engine oil.
   3. SAE 5W-30 is the best choice for good fuel economy, and good starting in cold weather.
   4. If SAE 5W-30 is not available, SAE 10W-30 may be used.
   5. However, it should be replaced with SAE 5W-30 at the next oil replacement.

1. Disconnect the oil pressure switch connector.
2. Using a deep socket wrench 24 mm, remove the oil pressure switch.

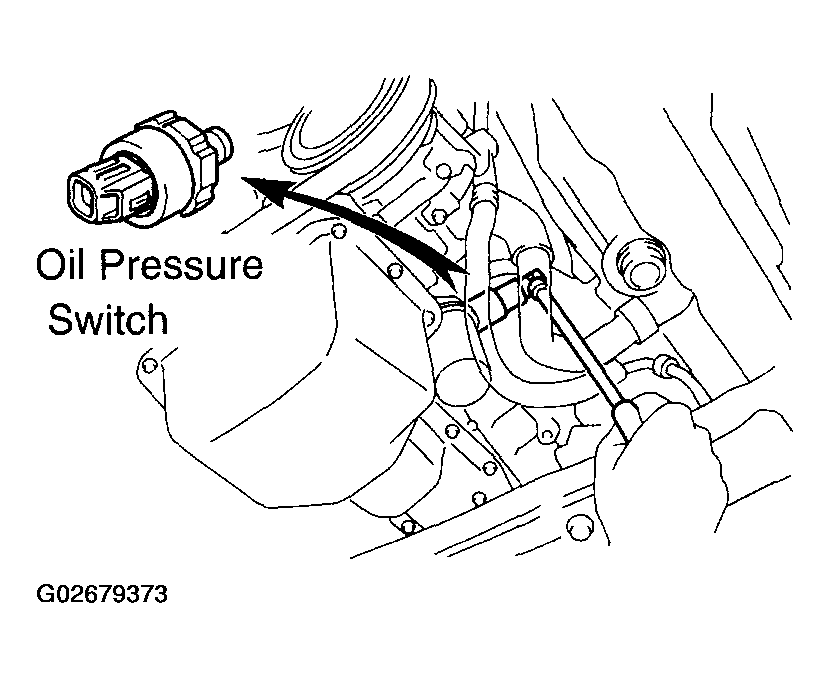

   Fig 2: Removing Oil Pressure Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the oil pressure gauge.
4. Warm up the engine.
5. Inspect the oil pressure.
   OIL PRESSURE SPECIFICATION



   At idle	29 kPa (0.3 kgf/cm2, 4.3 psi) or more
   At 3,000 RPM	294 to 539 kPa (3.0 to 5.5 kgf/cm2, 43 to 78 psi)

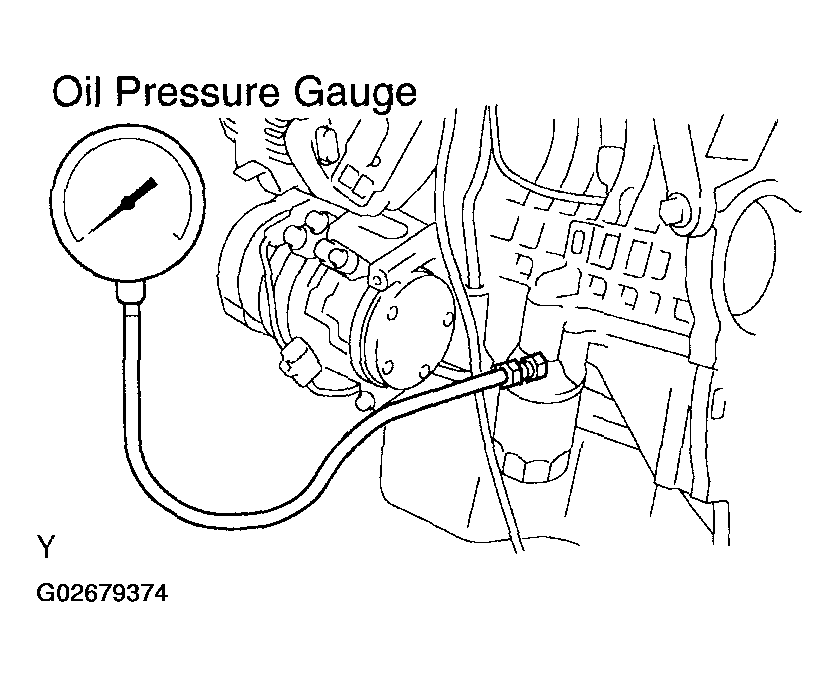

   Fig 3: Installing Oil Pressure Gauge

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Apply adhesive to 2 or 3 threads of the oil pressure switch.

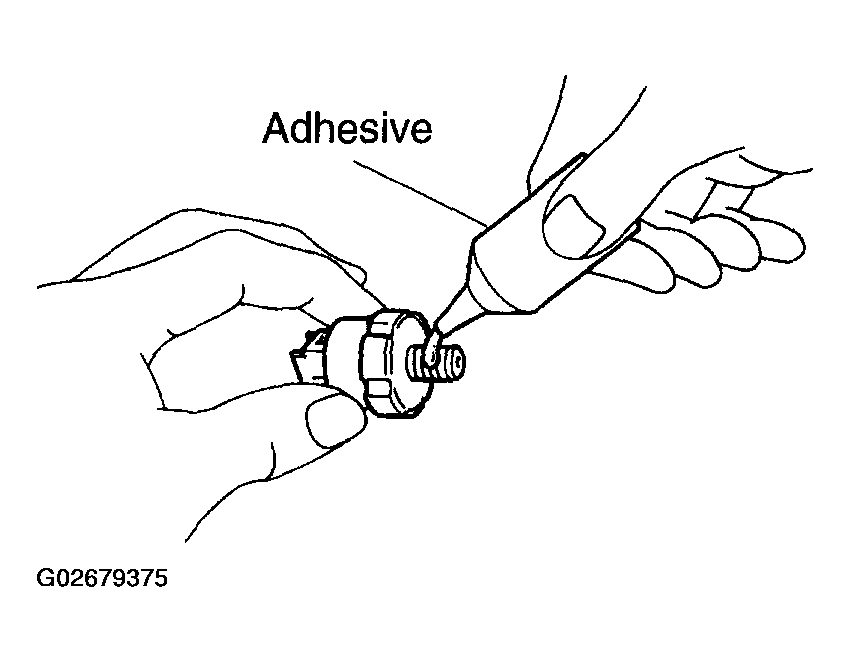

   Fig 4: Applying Adhesive To Threads Of Oil Pressure Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Adhesive:

   Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

7. Using a deep socket wrench 24 mm, install the oil pressure switch.

   Torque: 15 N.m (153 kgf.cm, 11 ft.lbf)

   NOTE: Do not start the engine within 1 hour of Installation.
8. Connect the oil pressure switch connector.
9. Check for the engine oil leaks.
