Abs Relay Block

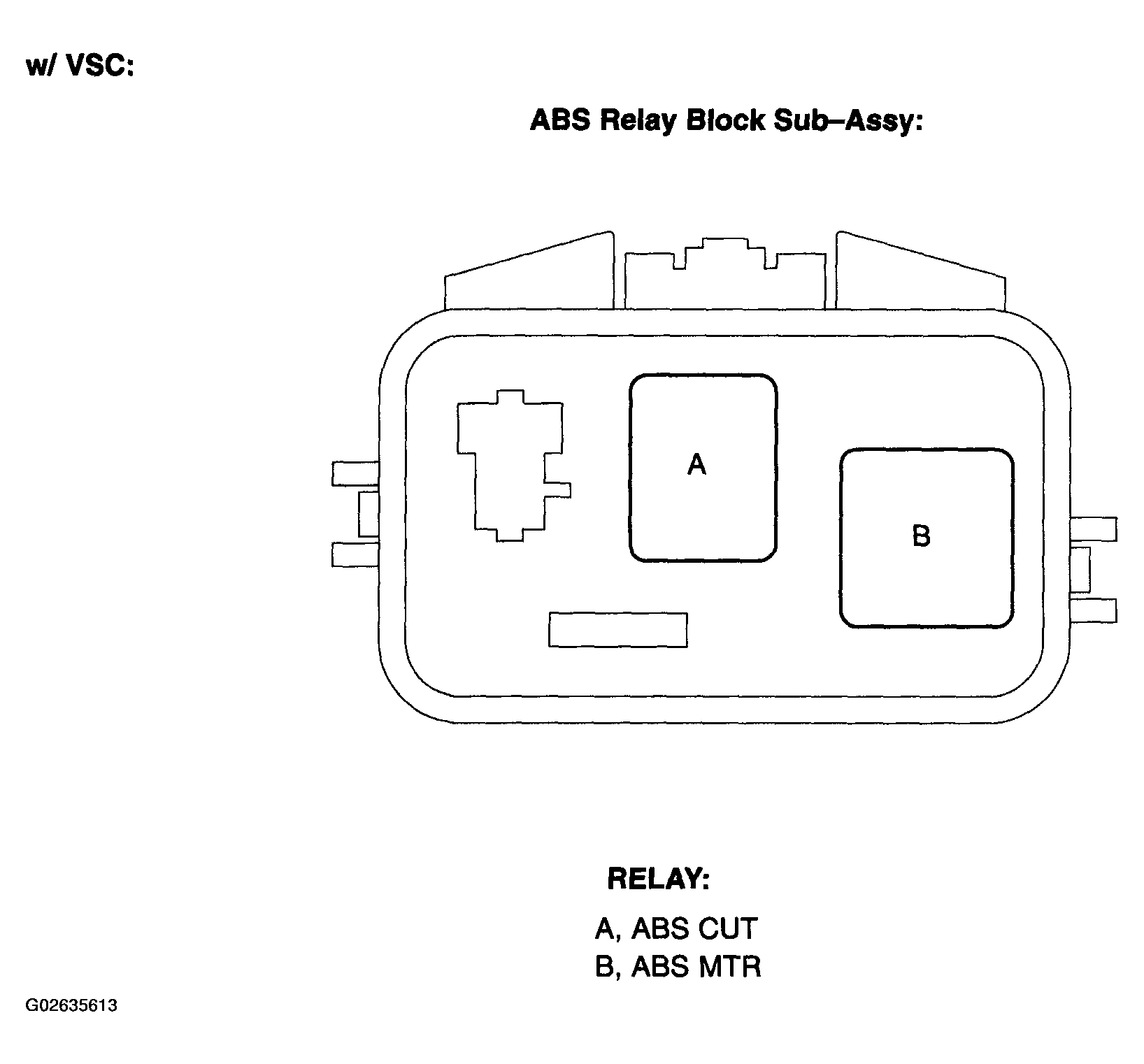

The ABS relay block is located in the left rear of the engine compartment. See Figure.
ABS RELAY BLOCK RELAY IDENTIFICATION
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| A | ABS CUT Relay |
| B | ABS MTR Relay |
The ABS relay block is located in the left rear of the engine compartment. See Figure.
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| A | ABS CUT Relay |
| B | ABS MTR Relay |
