Sliding Roof: Components

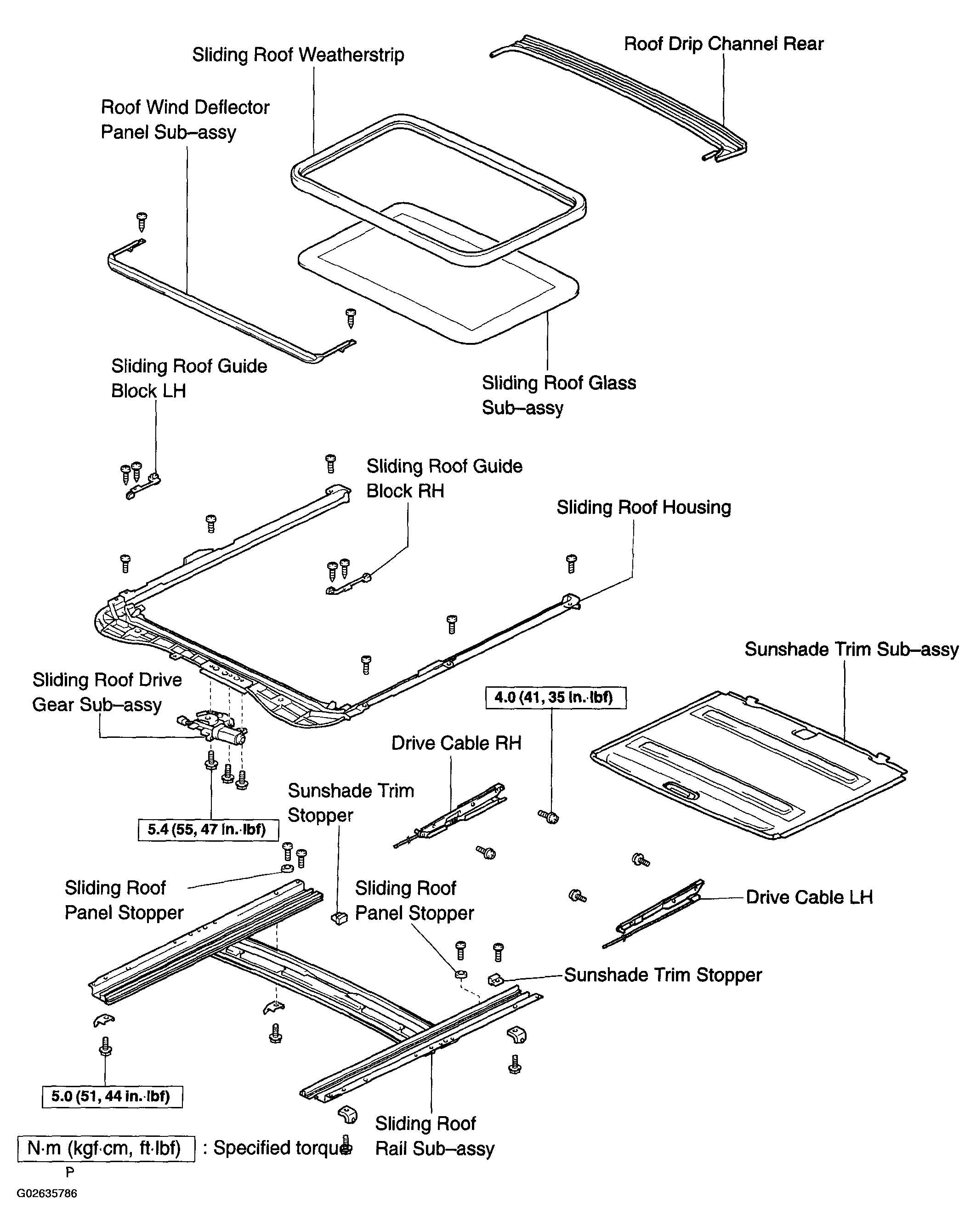

Fig 1: Sliding Roof Replacement Components With Torque Specifications
G02635786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
