Home >> Toyota >> 2005 >> Matrix Base, 4WD >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat >> Rear Seat >> Components

Rear Seat: Components

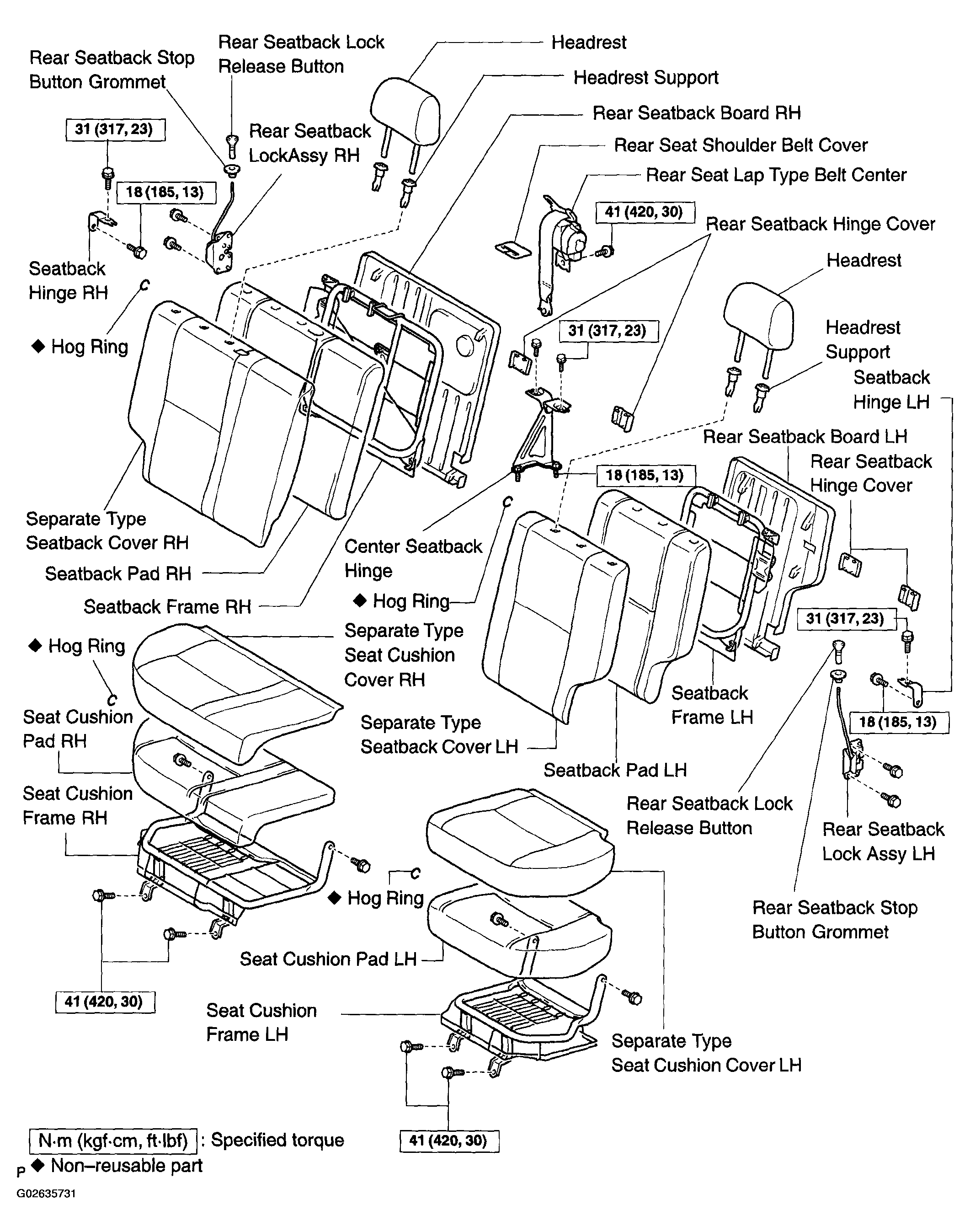

Fig 1: Replacement Components Of Rear Seat With Torque Specifications

G02635731

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
