Front Seat RH: Components

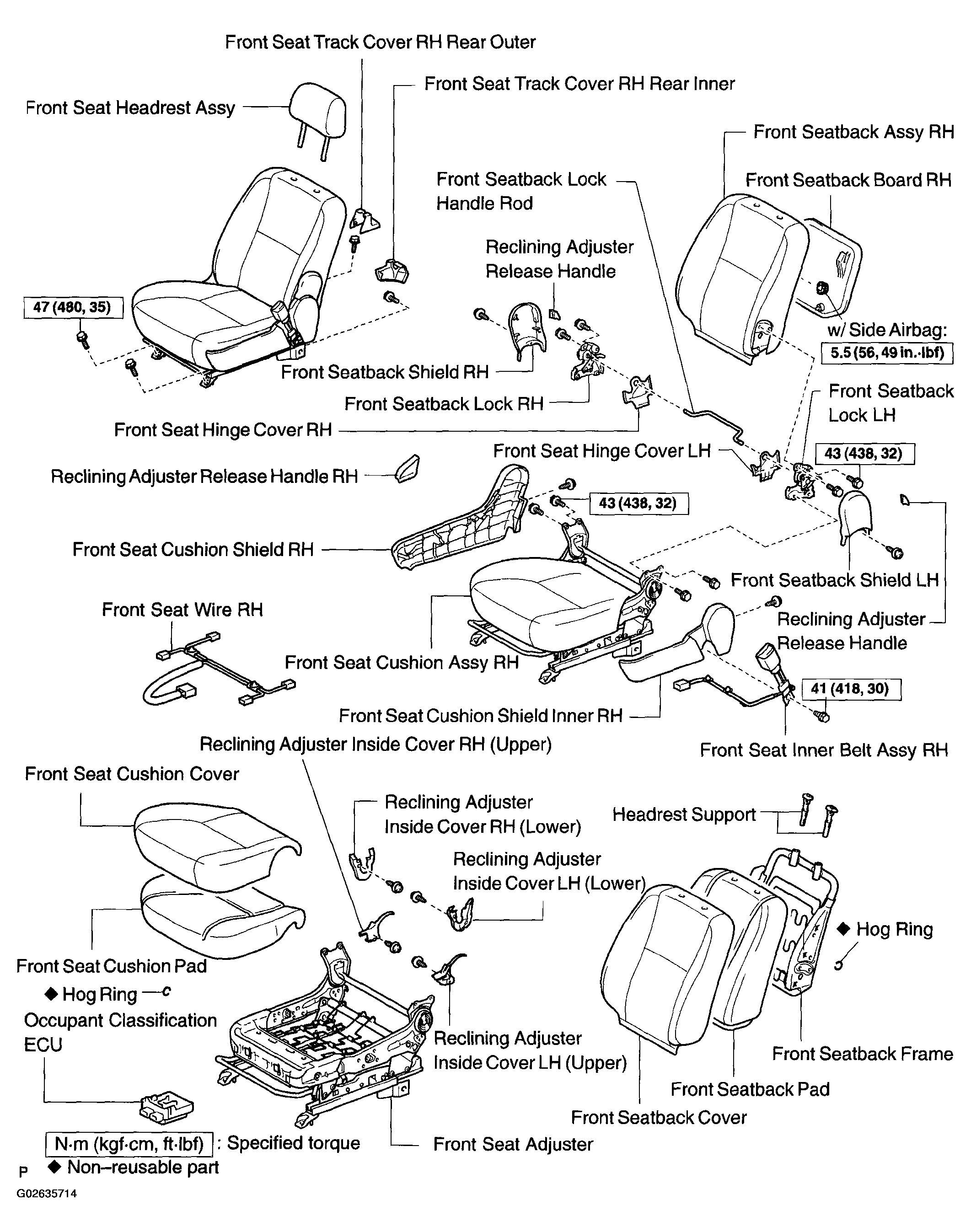

Fig 1: Replacement Components Of Front Seat RH With Torque Specifications

G02635714

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
