Home >> Toyota >> 2005 >> Matrix Base, 4WD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> TOYOTA Vehicle Intrusion Protection System - Diagnostics >> Location

TOYOTA Vehicle Intrusion Protection System - Diagnostics: Location

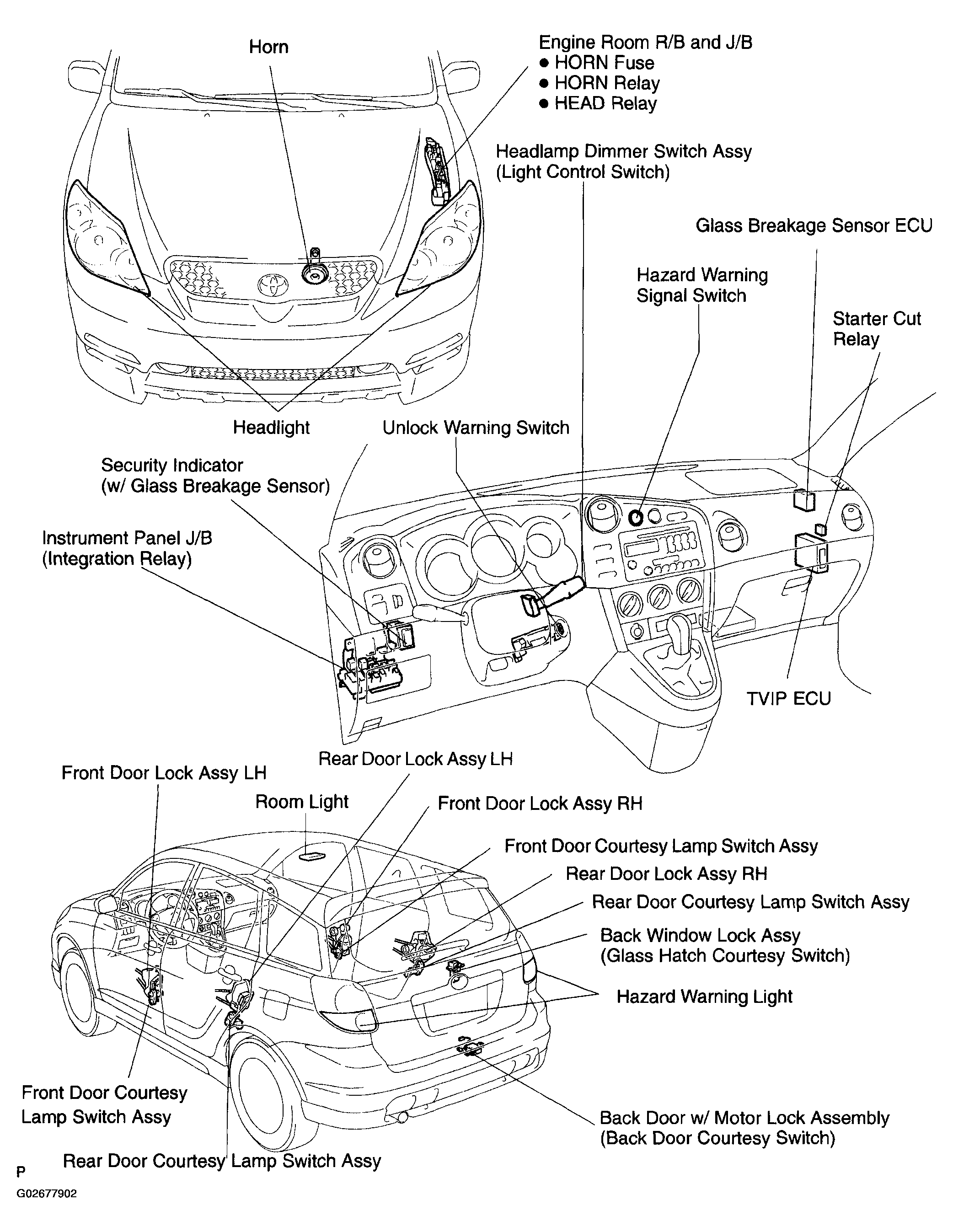

Fig 1: Locating Toyota Vehicle Instruction Protection System Components

G02677902

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
