Power Door Lock - Diagnostics: Location

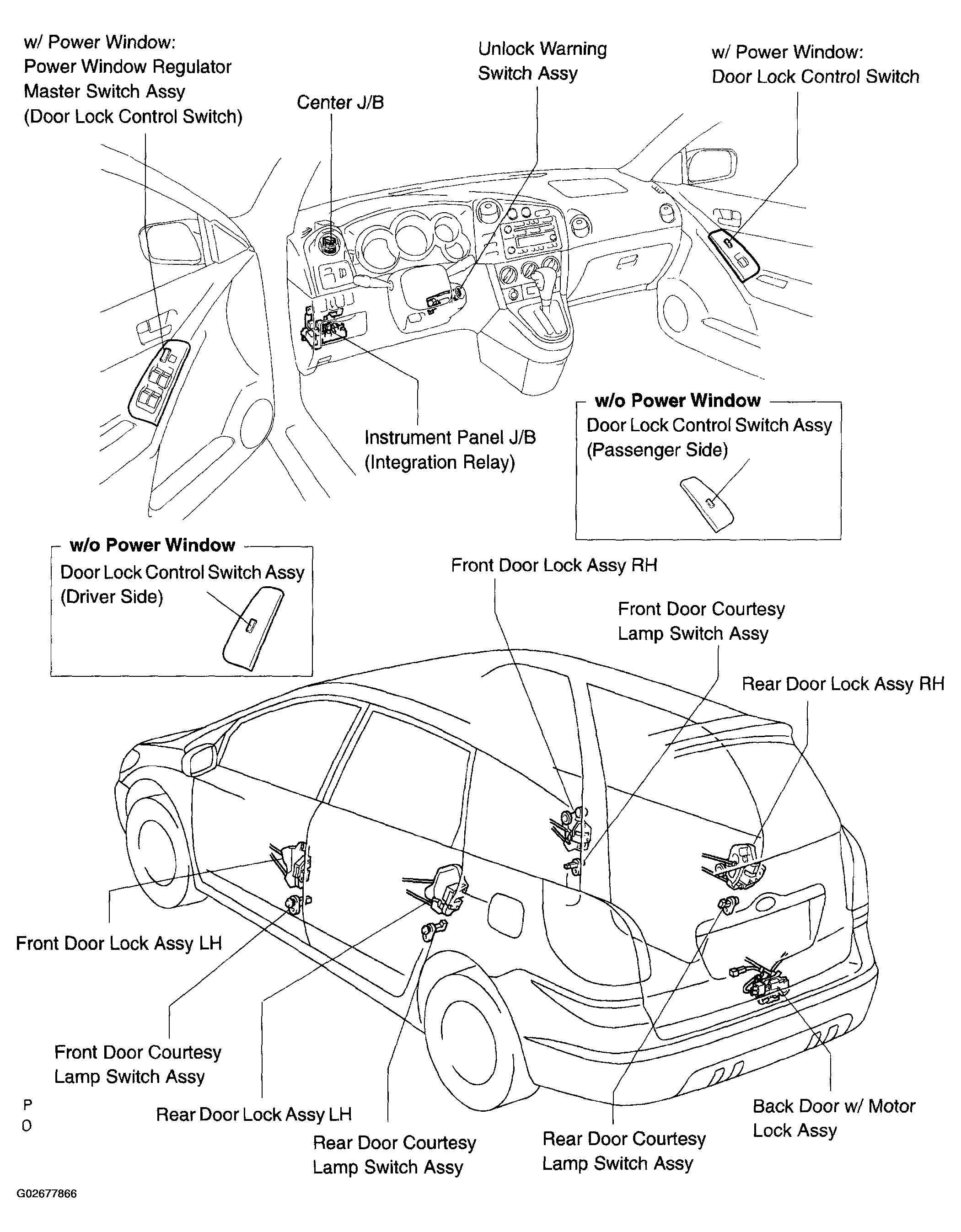

Fig 1: Identifying Power Door Lock Control System Components Location

G02677866

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
