Wiper Rubber LH: Replacement

  1. REMOVE FR WIPER BLADE LH
    1. Remove the front wiper blade LH from the front wiper arm LH.
    NOTE: Do not fold down the front wiper arm with the front wiper blade removed from it.
  2. REMOVE WIPER RUBBER LH
    1. Remove the front wiper rubber LH from the front wiper blade.
    2. Remove the 2 wiper rubber backing plates from the wiper rubber LH.
  3. INSTALL WIPER RUBBER LH
    1. Install the 2 wiper rubber backing plates to the wiper rubber LH.
      NOTE: Install the backing plate in the correct direction.

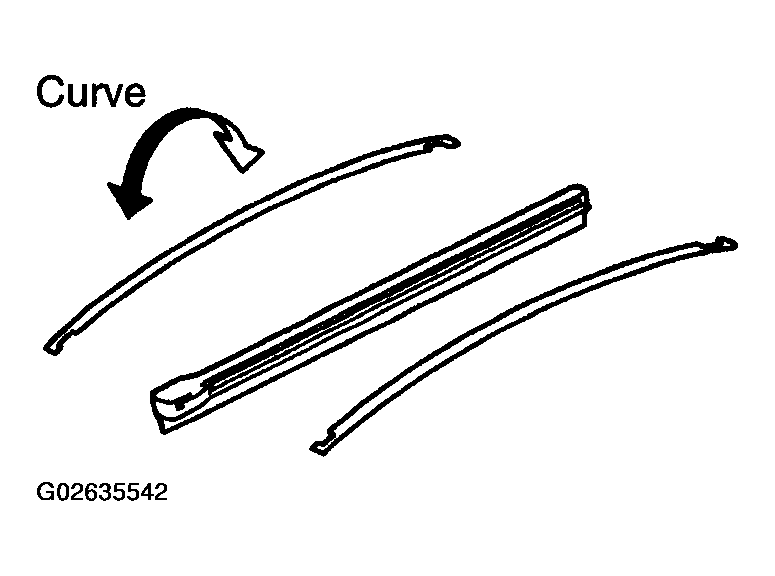

      Fig 1: Installing Wiper Rubber
      G02635542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the wiper rubber LH so that the head part (Larger side) of the wiper rubber faces the arm axle side.
      NOTE: Push the front wiper blade into the grooves of the wiper rubber to engage it completely.

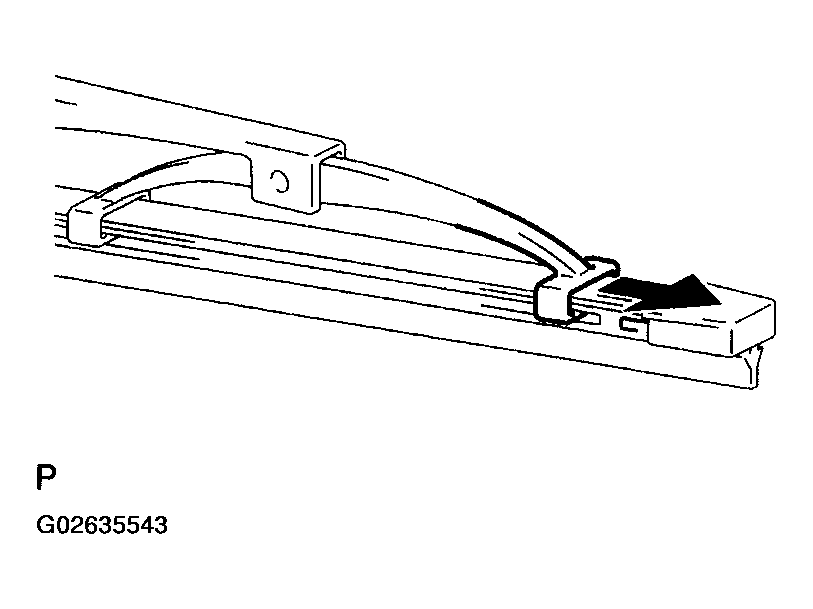

      Fig 2: Installing Wiper Rubber LH
      G02635543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
