System Diagram

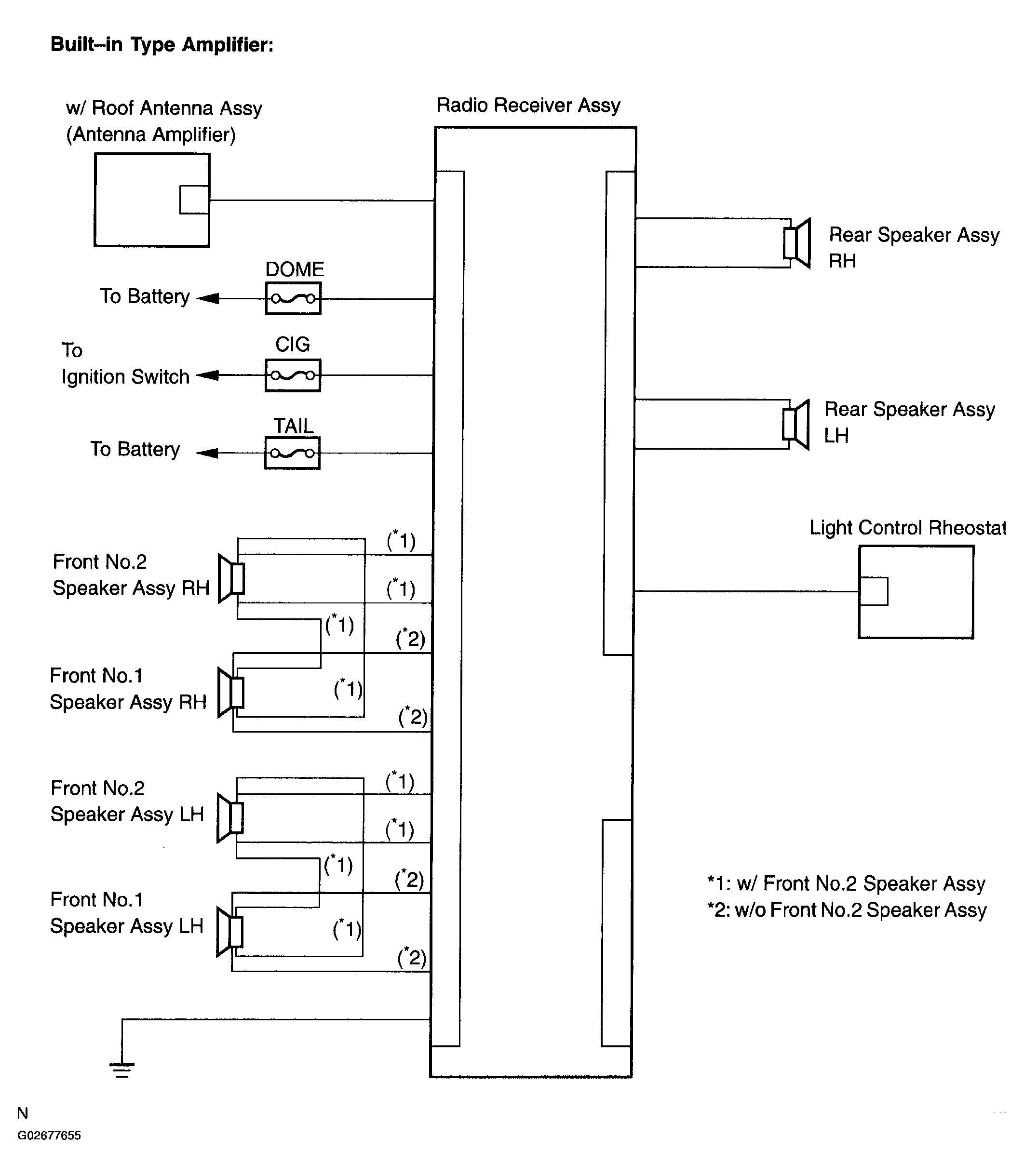

Fig 1: System Diagram Of Audio System (Built-In Type Amplifier)
G02677655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

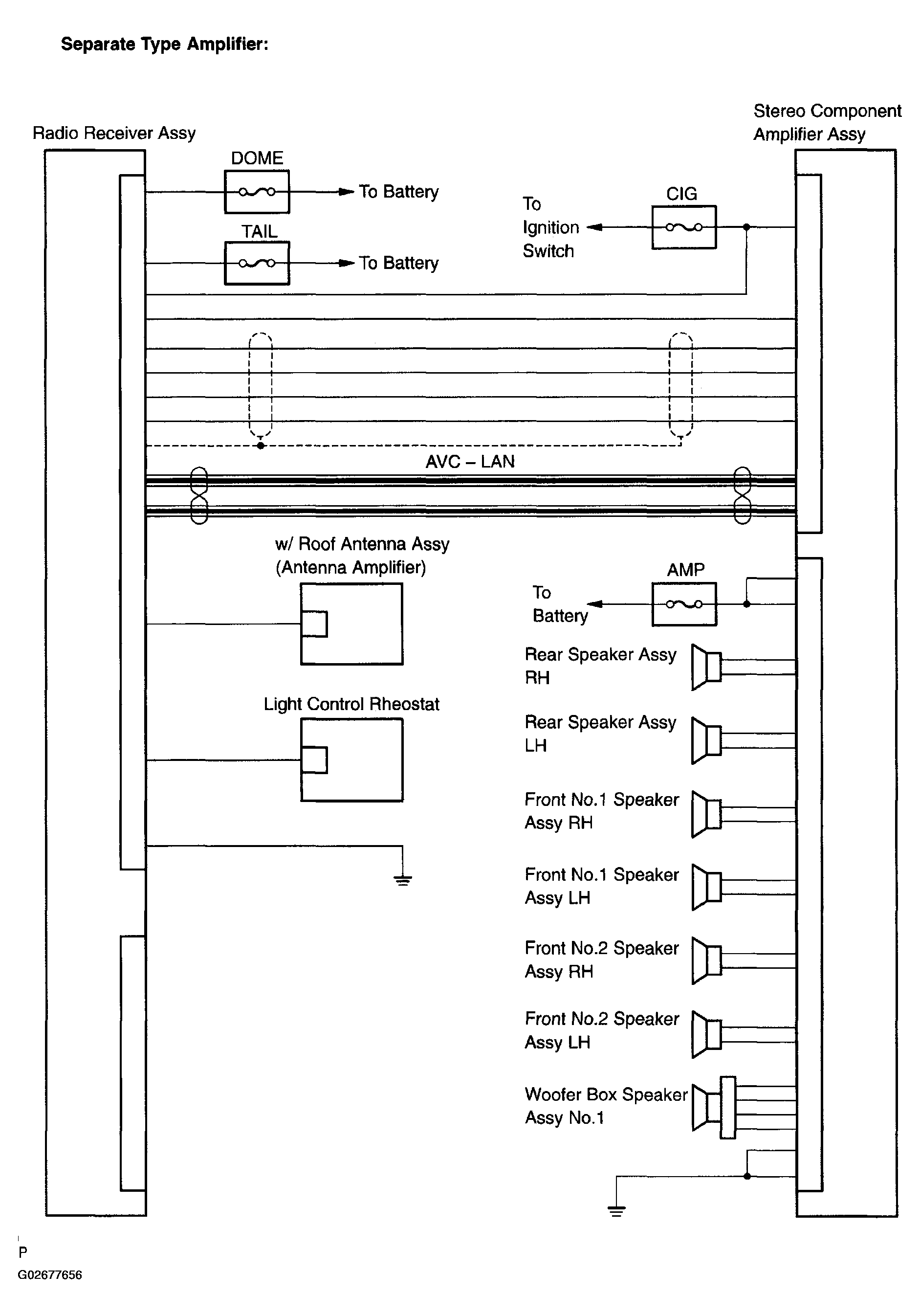

Fig 2: System Diagram Of Audio System (Separate Type Amplifier)
G02677656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
