Cruise Control Actuator ASSY: Replacement

REMOVE CRUISE CONTROL ACTUATOR COVER
1. Disengage the 2 claws, then remove the cruise control actuator cover.

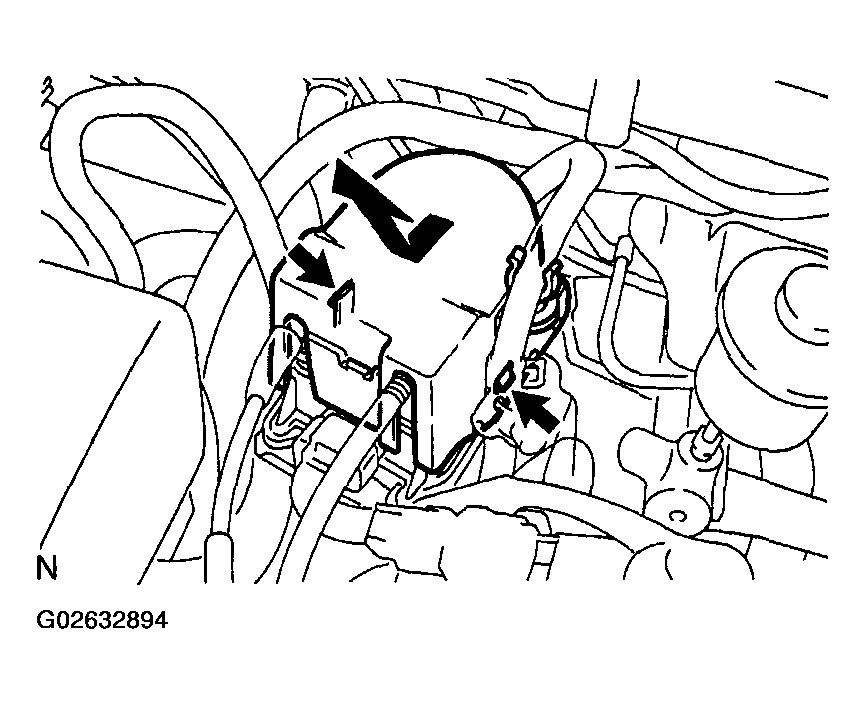

  Fig 1: Removing Cruise Control Actuator Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SEPARATE ACCELERATOR CONTROL CABLE ASSY
1. Loosen the double nut and separate the accelerator control cable assy.

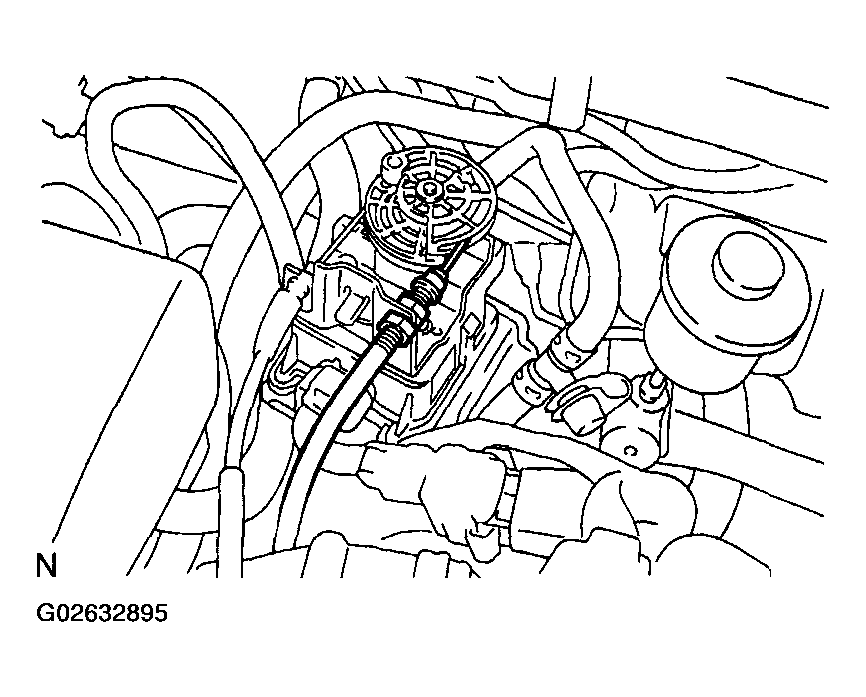

  Fig 2: Separating Accelerator Control Cable Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SEPARATE ACCELERATOR AUTO DRIVE CABLE ASSY
1. Remove the screw and separate the accelerator auto drive cable assy.

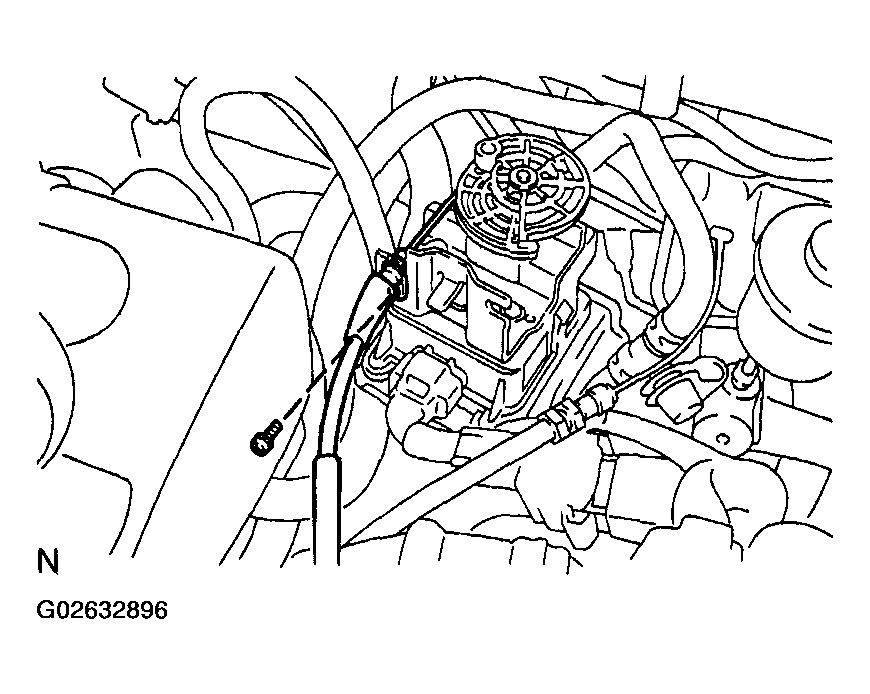

  Fig 3: Separating Accelerator Auto Drive Cable Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CRUISE CONTROL ACTUATOR ASSY
1. Disconnect the connector.
2. Remove the 2 bolts and cruise control actuator assy.
  Torque: 6.0 N.m (60 kgf.cm, 52 in.lbf)

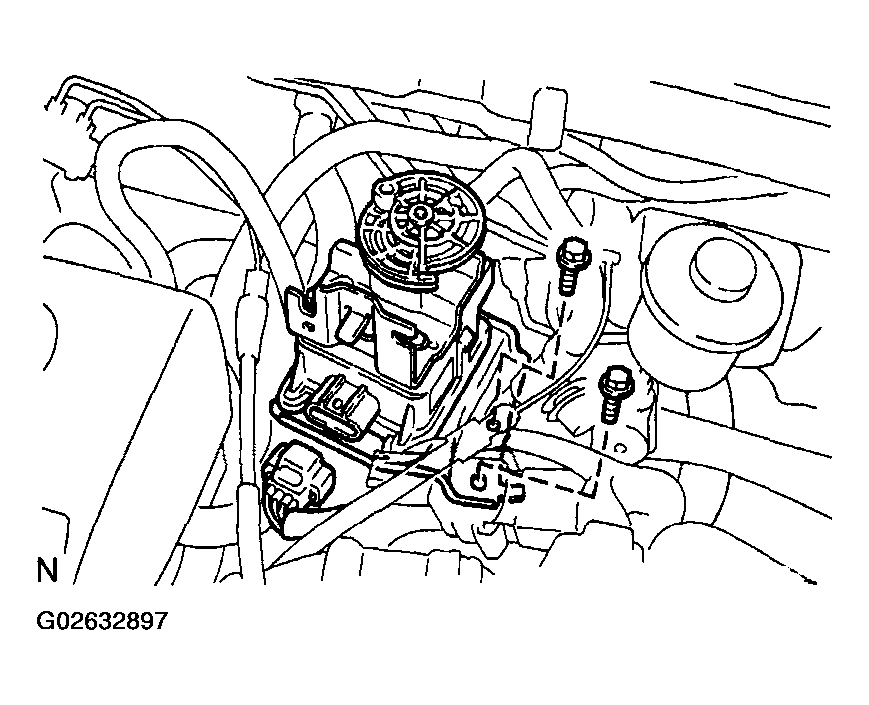

  Fig 4: Removing Cruise Control Actuator Assy
