Ignition Switch Circuit: Wiring Diagram

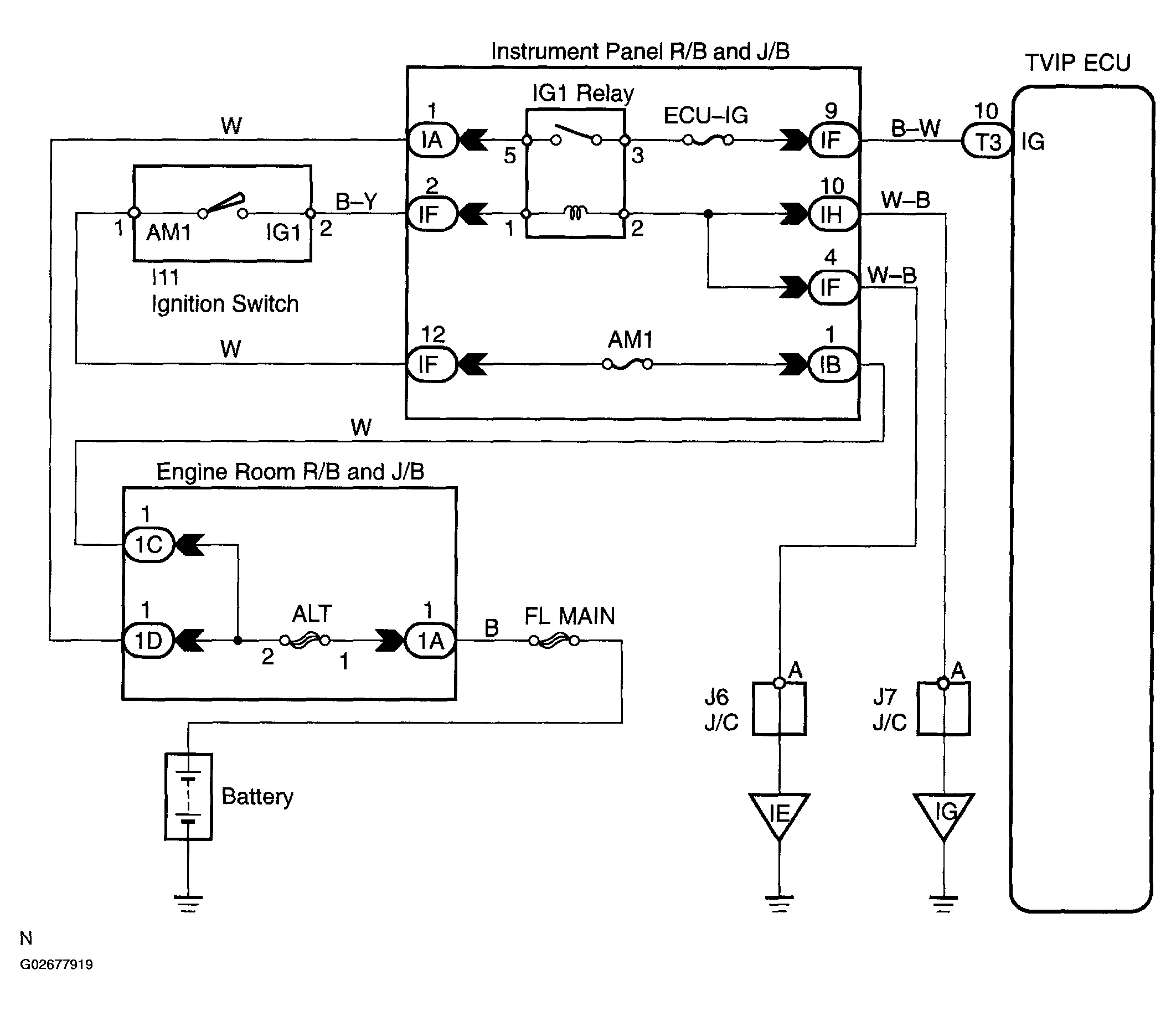

Fig 1: Identifying Ignition Switch Wiring Diagram

G02677919

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
