Inspection Procedure

1. Connect the battery's positive (+) lead to the terminal, and the negative (-) lead to the horn body.

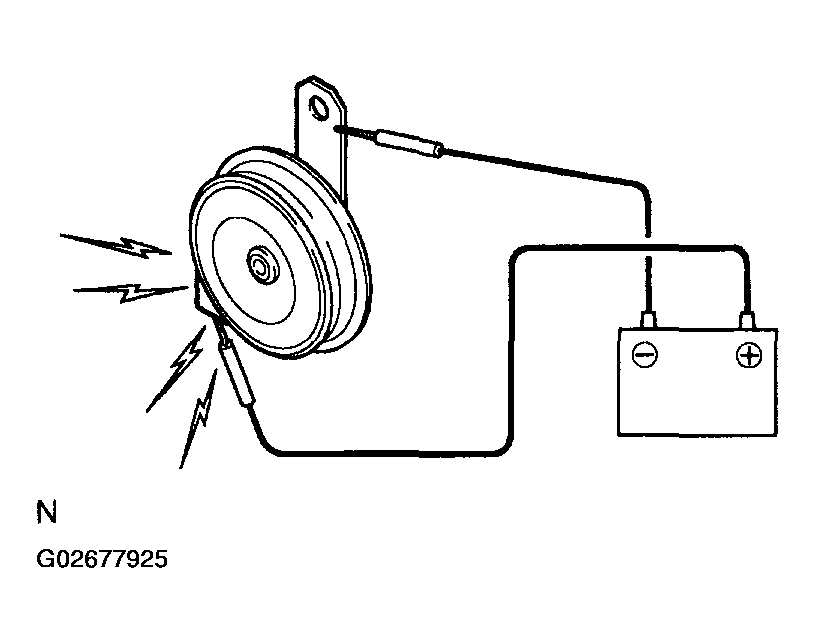

   Fig 1: Connecting Battery's Positive (+) Lead To Terminal, And Negative (-) Lead To Horn Body

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that the horn sounds

   Standard: Horn sounds

1. NG: REPAIR OR REPLACE HORN ASSY

OK: Go to next step

1. Remove the HORN relay from the engine room R/B.

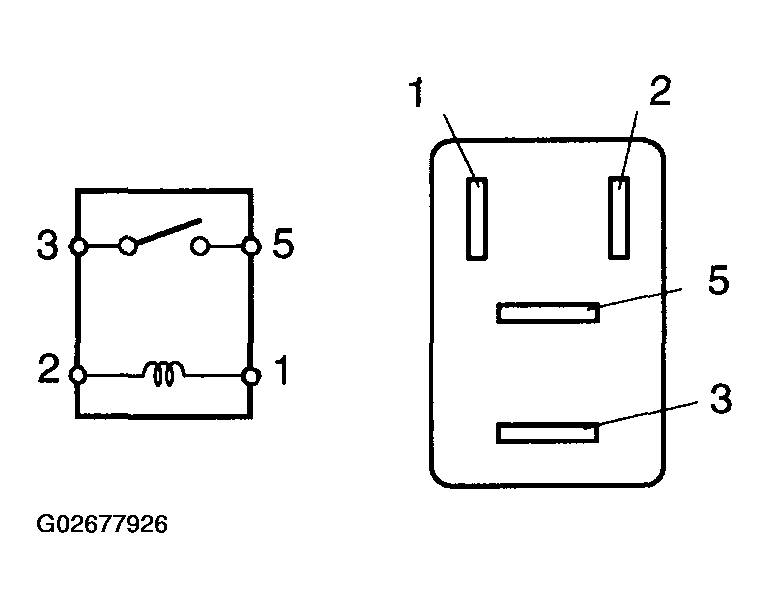

   Fig 2: Removing Horn Relay From Engine Room R/B

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance of the relay.
   TESTER CONNECTION SPECIFIED CONDITION CHART (1 OF 3)



   Tester Connection	Specified Condition
   3-5	10 kΩ or higher
   3-5	Below 1 Ω (when battery voltage is applied to terminals 1 and 2)

   1. NG: REPLACE RELAY

OK: Go to next step

1. Remove the HORN relay from the engine room R/B.
2. Disconnect the T3 TVIP ECU connector.

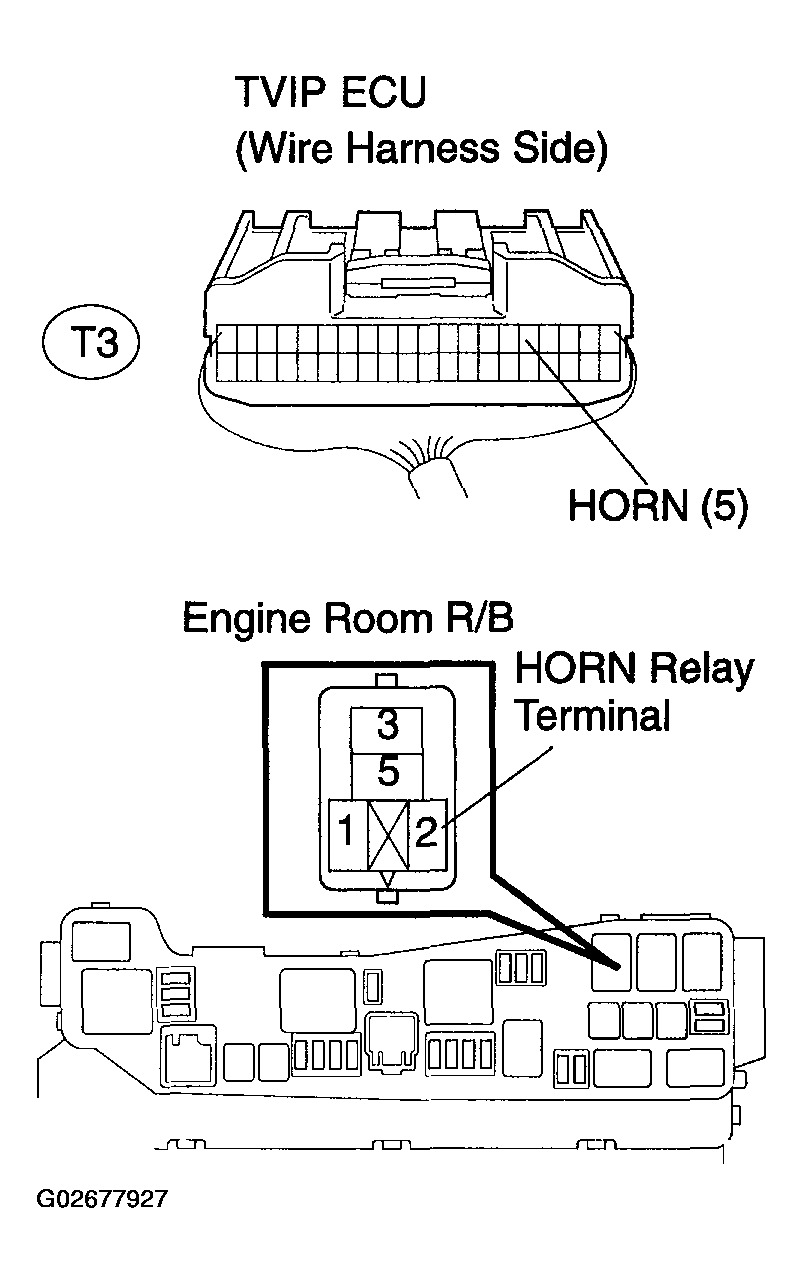

   Fig 3: Disconnecting T3 TVIP ECU Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance of the wire harness side connectors.
   TESTER CONNECTION SPECIFIED CONDITION CHART (2 OF 3)



   Tester Connection	Specified Condition
   HORN (T3-5) - R/B HORN relay terminal 2	Below 1 Ω

1. NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR

OK: Go to next step

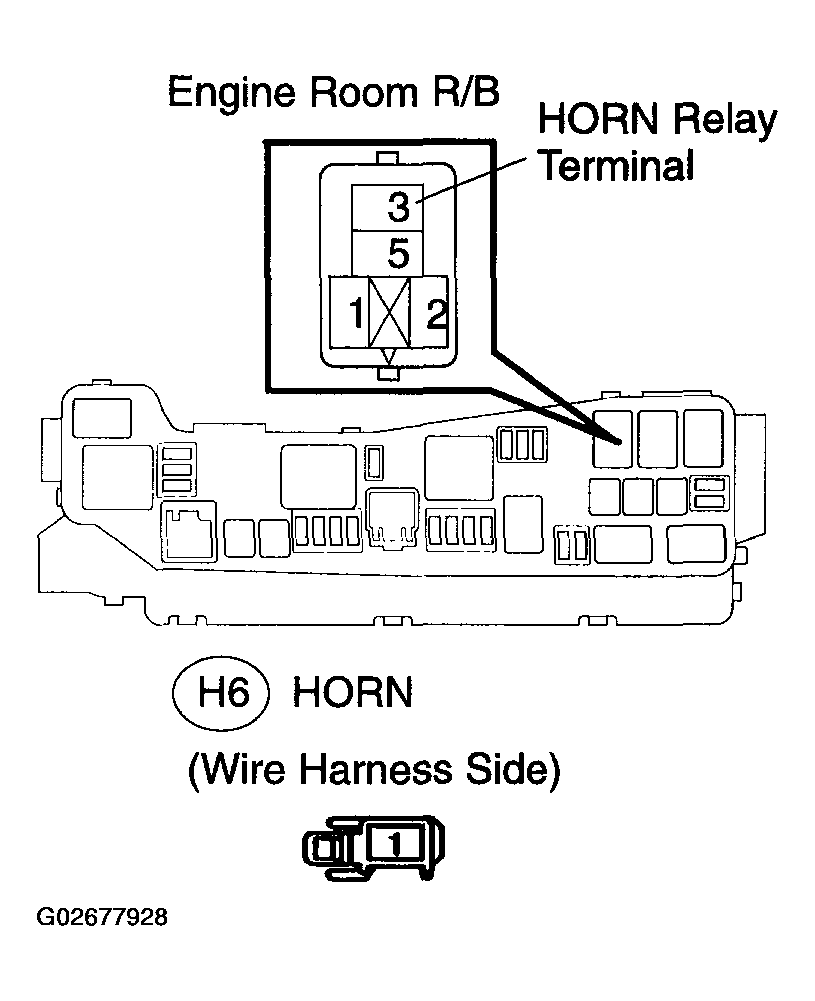

Fig 4: Identifying Engine Room R/B AND J/B - Horn Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the HORN relay from the engine room R/B.
2. Disconnect the HORN connector.
   TESTER CONNECTION SPECIFIED CONDITION CHART (3 OF 3)



   Tester Connection	Specified Condition
   R/B HORN relay terminal 3 - HORN (H6-1 )	Below 1 Ω

1. NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR

OK: Go to next step

CHECK AND REPLACE TVIP ECU (See  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
