Ecu Power Source Circuit: Wiring Diagram

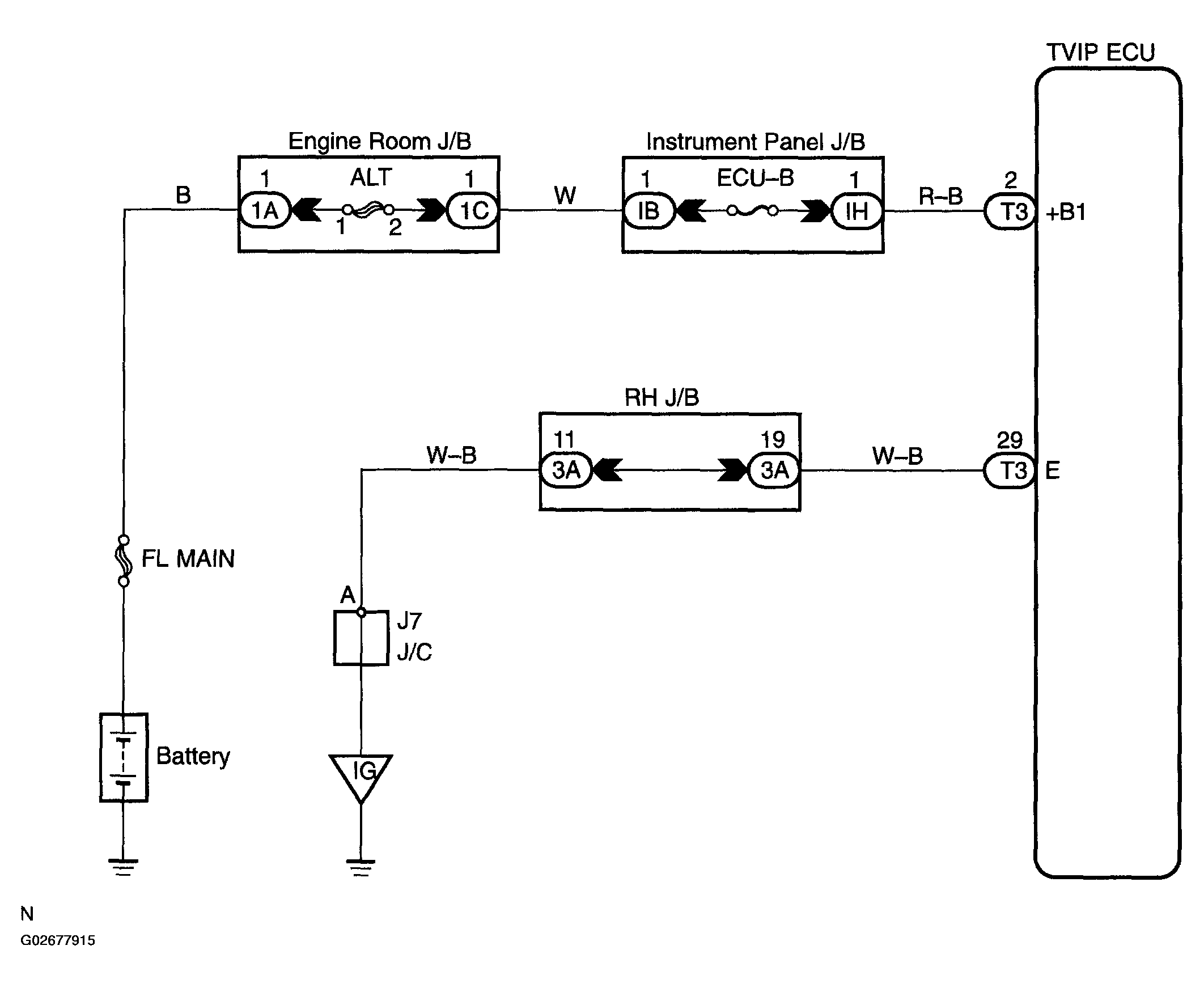

Fig 1: Identifying ECU Power Source Circuit Wiring Diagram

G02677915

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
