DTC P0120, P0122, P0123: Throttle/Pedal Position Sensor/Switch "A" Circuit Low/High Input: Wiring Diagram

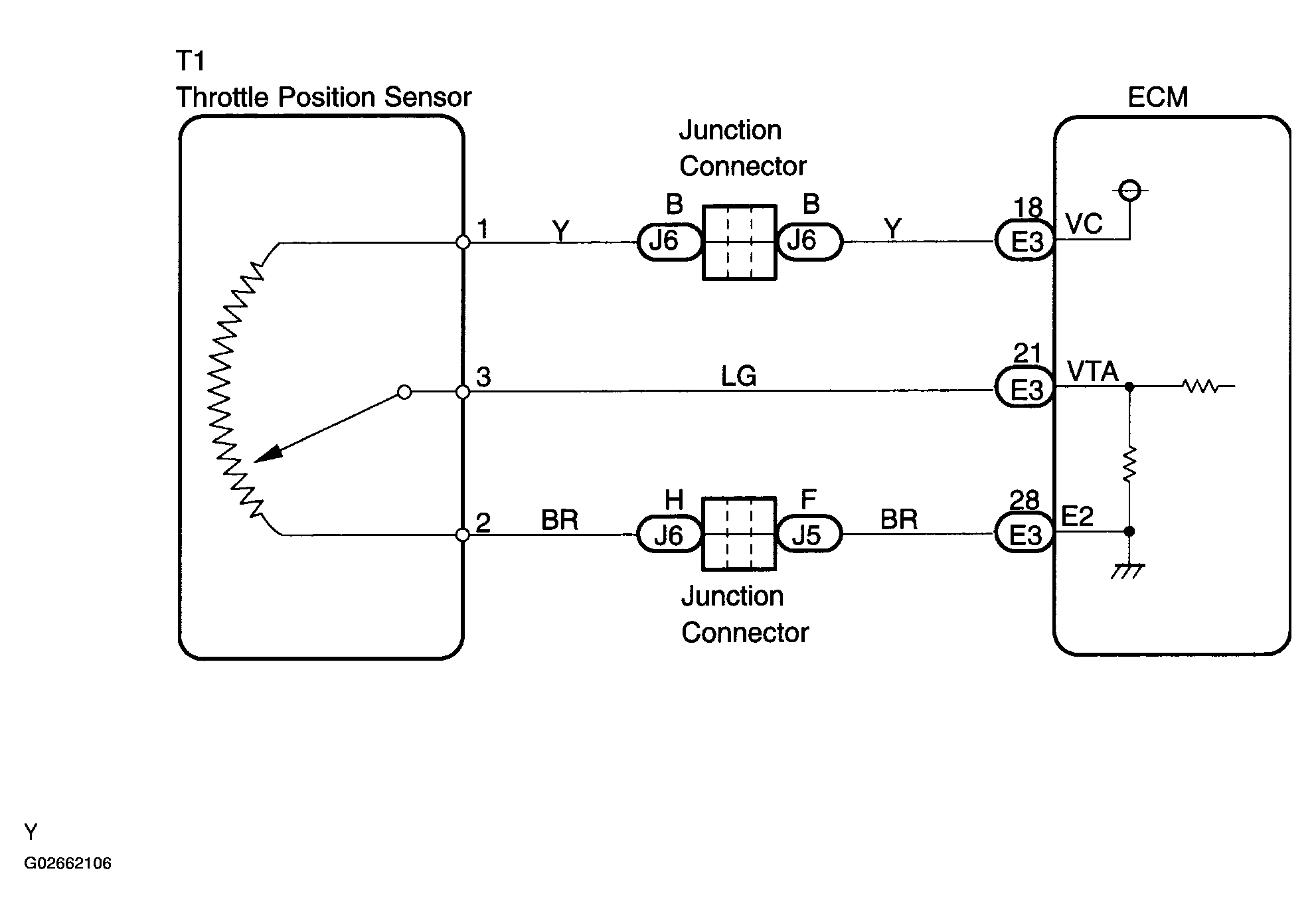

Fig 1: Throttle/Pedal Position Sensor/Switch A - Wiring Diagram
G02662106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
