Circuit Description

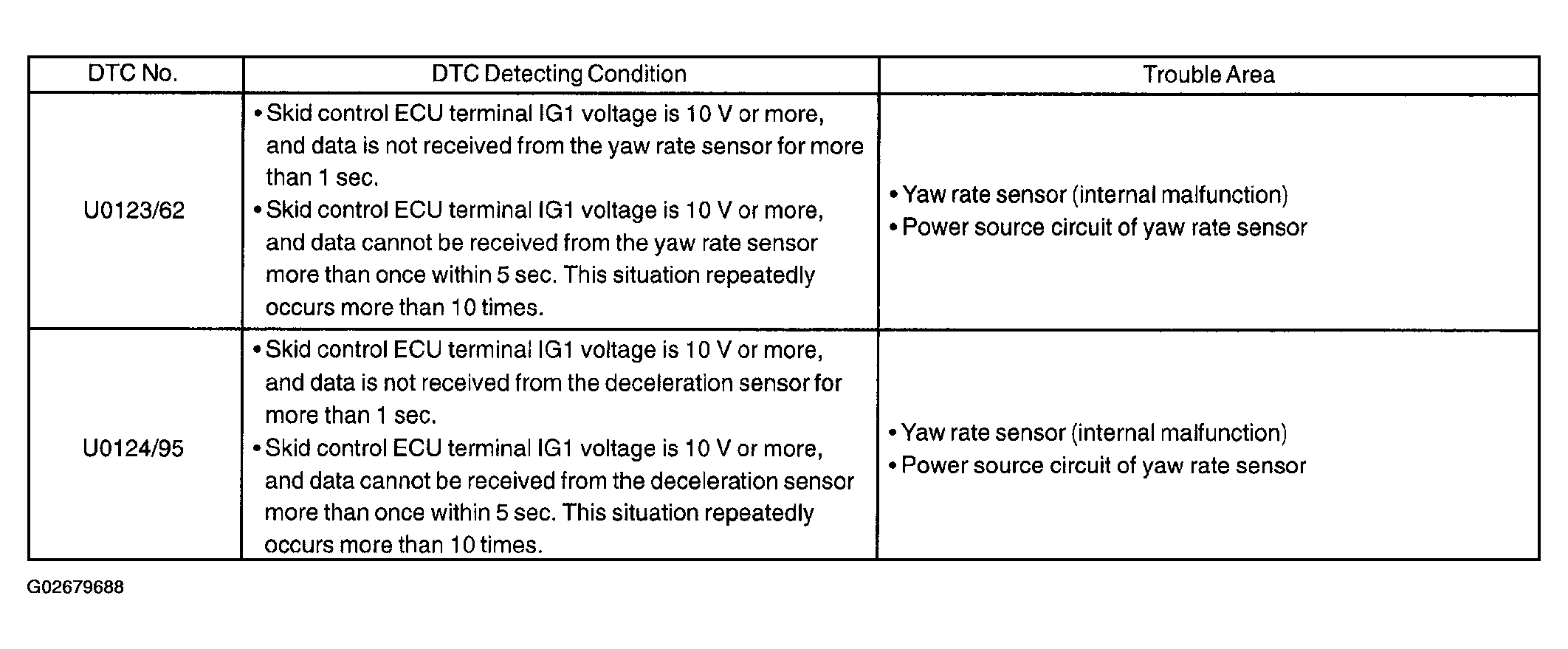

Fig 1: DTC Reference Chart - Yaw Rate Sensor Communication Stop Mode
G02679688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
