Rear Stabilizer Bar: Components

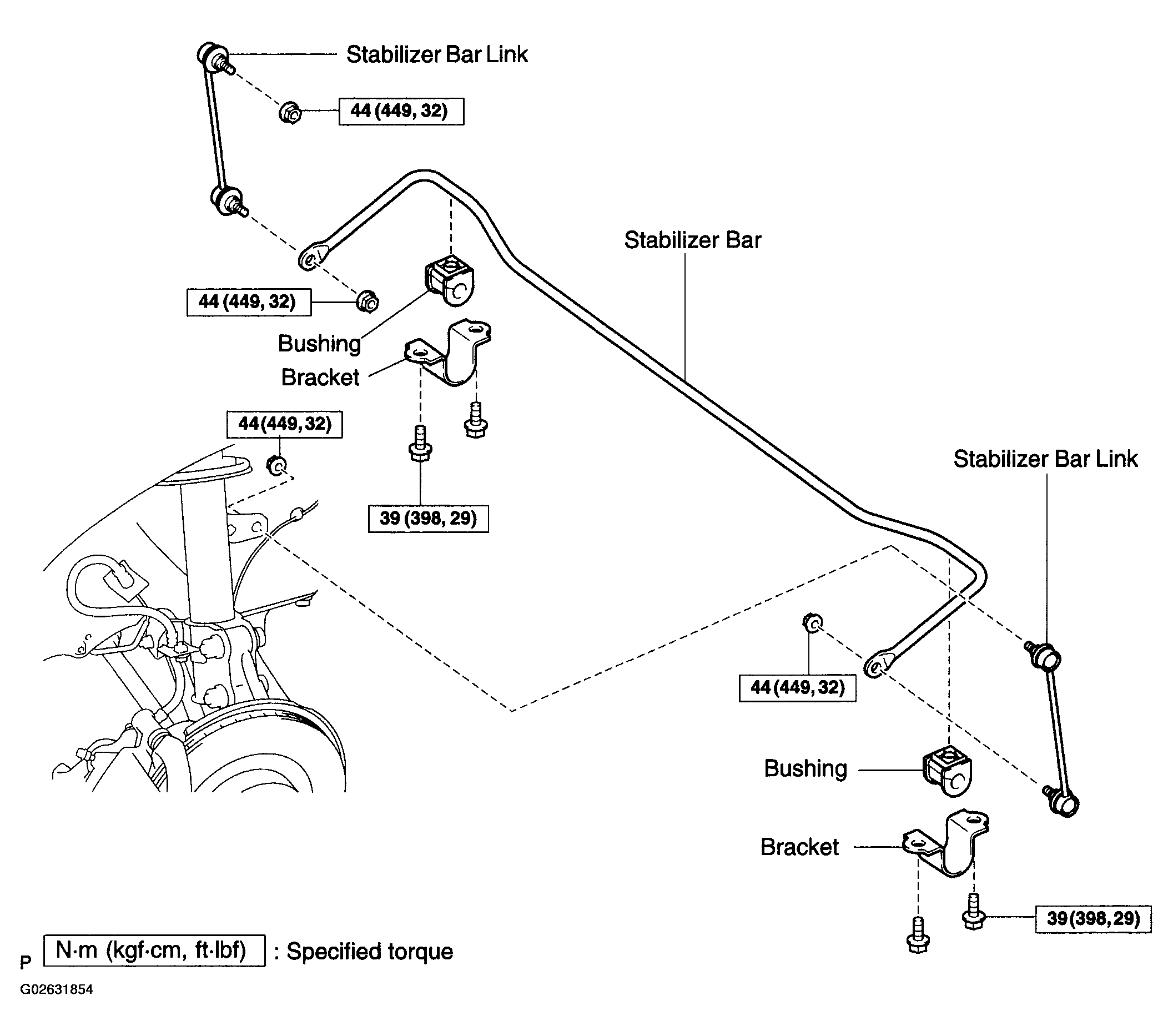

Fig 1: Identifying Rear Stabilizer Bar Components

G02631854

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
