Front Wheel Hub Bolt: Replacement

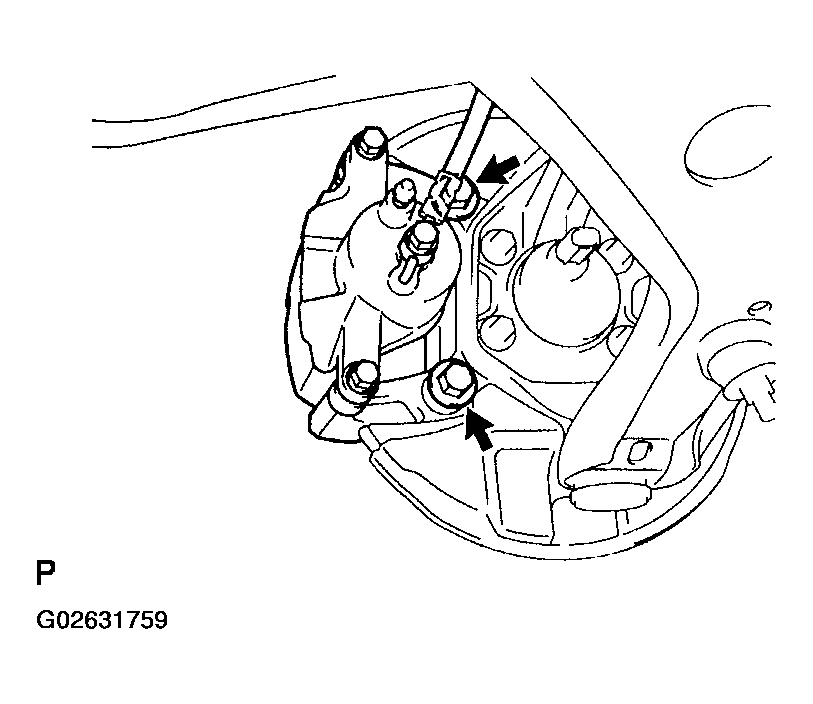

1. Remove the 2 bolts, brake caliper and disc.
2. Support the brake caliper securely.

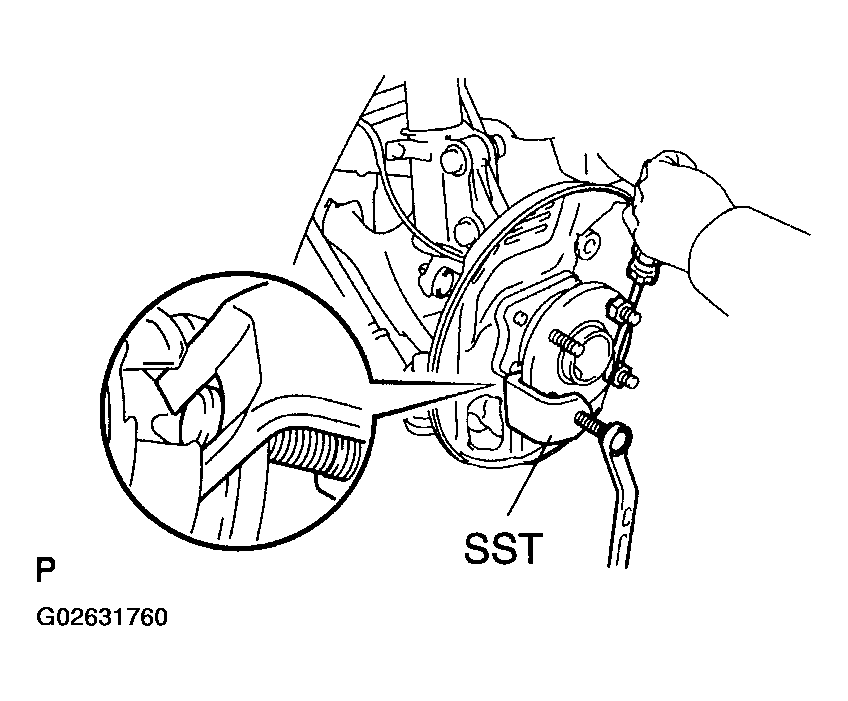

Fig 2: Removing Hub Bolt Using SST And A Screwdriver

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using SST, 2 nuts and a screwdriver or an equivalent, remove the hub bolt.

SST 09628-10011

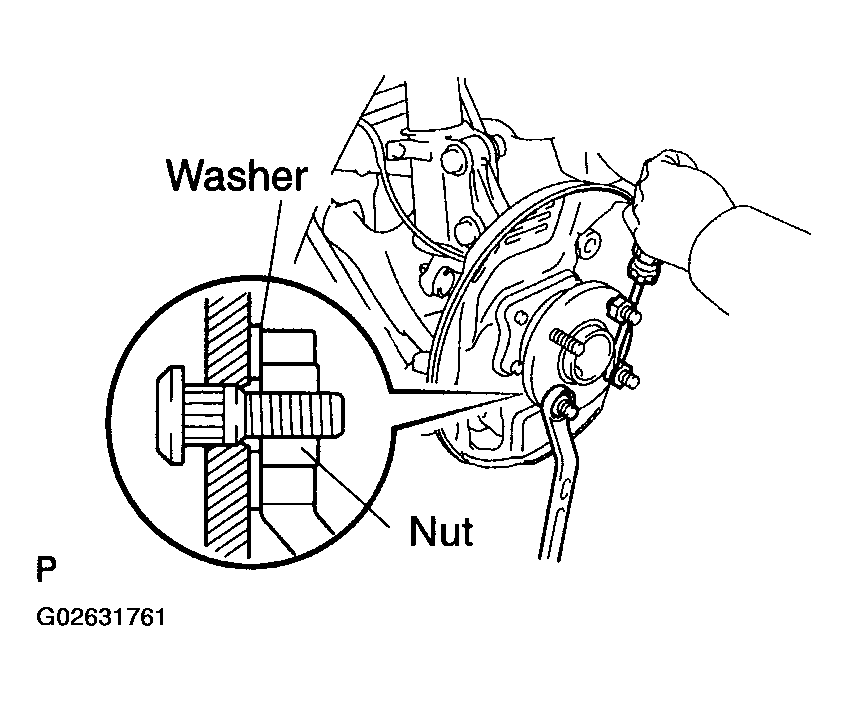

Fig 3: Installing Washer And Nut To Hub Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install a washer and a nut to a new hub bolt as shown in the illustration.
2. Using a screwdriver or an equivalent to hold, install the hub bolt by torquing the nut.
3. Remove the 3 nuts and washer.

Install the disc and brake caliper with the 2 bolts.

Torque: 109 N.m (1,112 kgf.cm, 80 ft.lbf)

Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
