Front Stabilizer Bar: Removal

Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

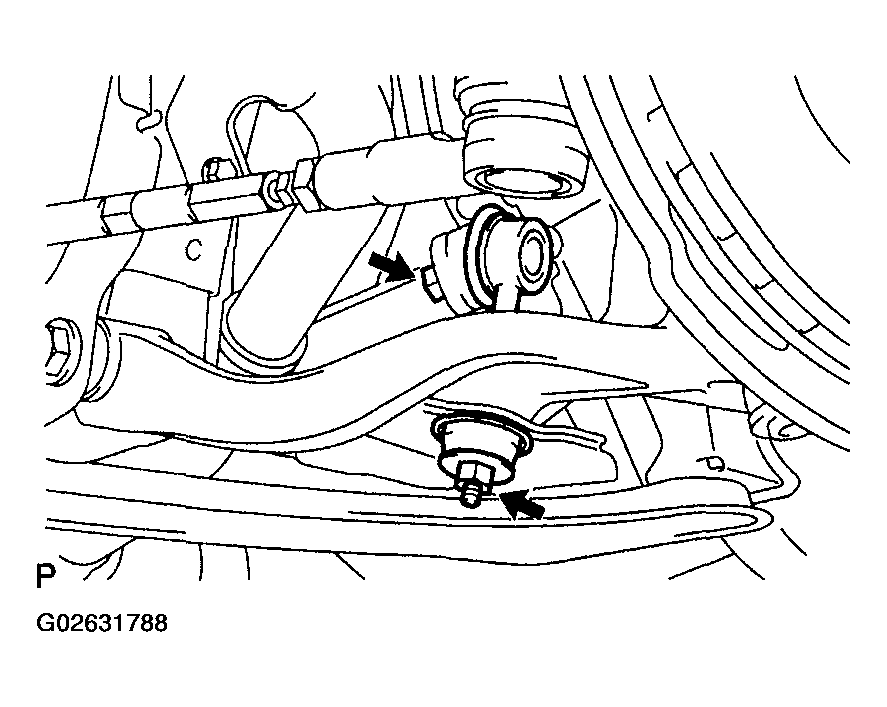

Fig 1: Disconnecting Stabilizer Bar Link From Stabilizer Bar

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the nut, and disconnect the stabilizer bar link from the stabilizer bar.

   Torque: 44 N.m (449 kgf.cm, 32 ft.lbf)

   HINT:

   If the ball joint turns together with the nut, use a 5 mm hexagon wrench to hold the stud.

2. Remove the nut, stabilizer bar link, 3 retainers and 2 cushions.

   Torque: 18 N.m (184 kgf.cm, 13 ft.lbf)

3. Employ the same manner described above to the other side.

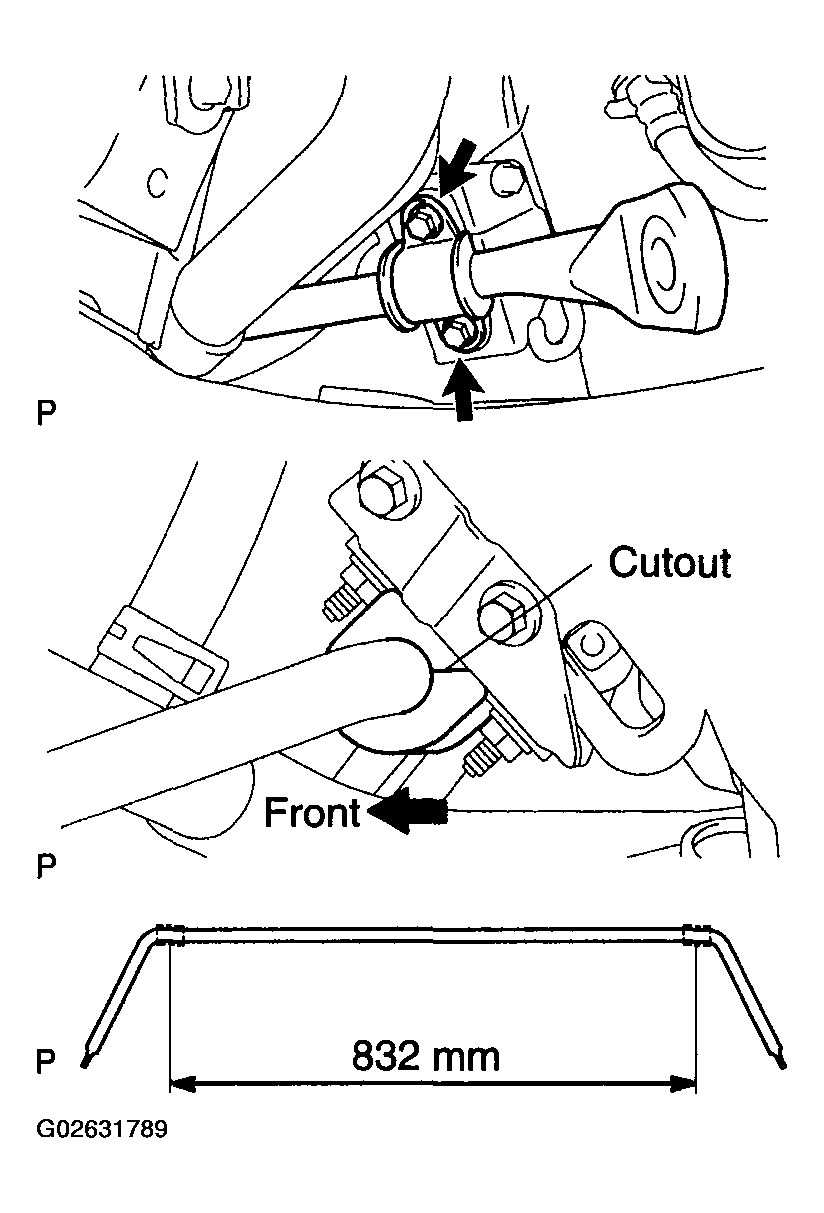

Fig 2: Removing Stabilizer Bar

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 bolts, bracket and bushing.

   Torque: 30 N.m (306 kgf.cm, 22 ft.lbf)

   HINT:

   At the time of installation, please refer to the following items.

   • Install the bushing so that the cutout will face to the rear.
   • The distance between the bushings is 832 mm.
2. Employ the same manner described above to the other side.
3. Remove the stabilizer bar.
