Front Stabilizer Bar: Inspection

INSPECT STABILIZER BAR LINK BALL JOINT FOR ROTATION CONDITION

1. As shown in the illustration, flip the ball joint stud back and forth 5 times, before installing the nut.
2. Using a torque wrench, turn the nut continuously at a rate of 2 - 4 seconds per 1 turn and take the torque reading on the 5th turn.

   Turning torque:

   0.05 - 1.0 N.m (0.5 - 10 kgf.cm, 0.4 - 8.7 in.lbf)

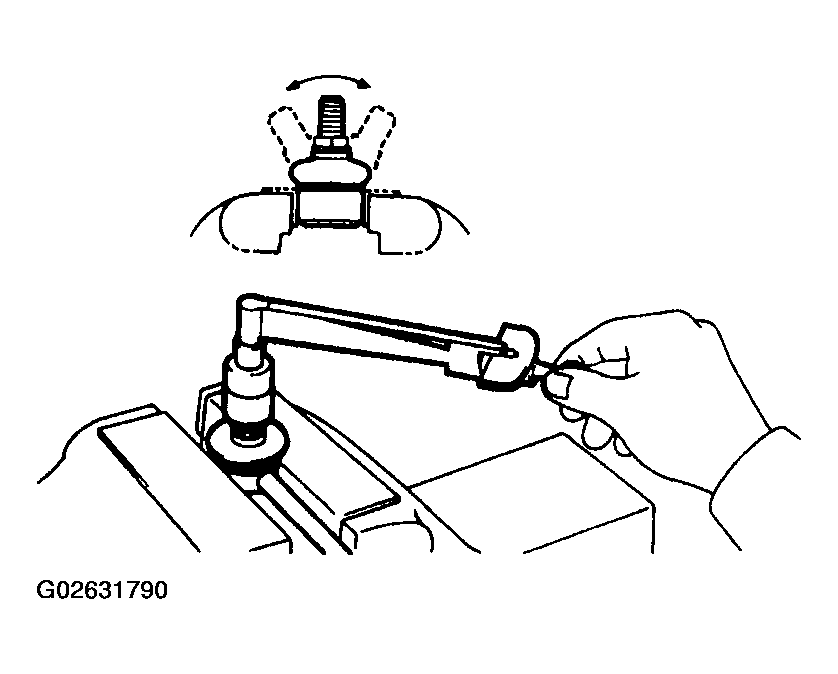

Fig 1: Inspecting Stabilizer Bar Link Ball Joint For Rotation Condition

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
