Front Shock Absorber: Disassembly

Using SST, compress the coil spring.
SST 09727-30021 (09727-00010, 09727-00021, 09727-00031)

NOTE: Do not use an impact wrench. It will damage the SST.
Remove the cap.

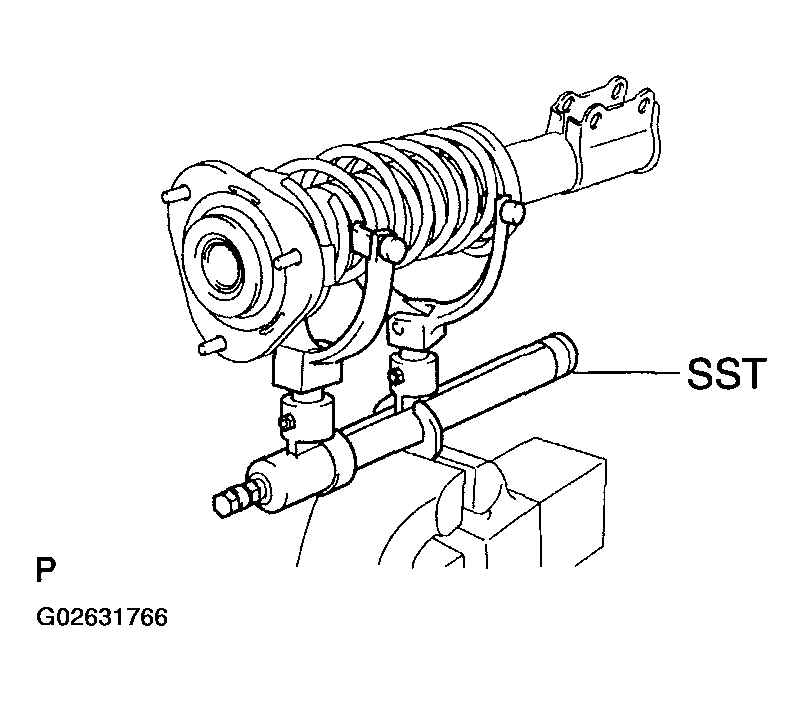

Fig 1: Compressing Coil Spring Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Using a screwdriver to hold the spring seat, remove the nut.
HINT:

Tape the screwdriver before use.

NOTE: Be careful not to damage the spring seat.
Remove the suspension support, dust seal, spring seat, upper insulator, coil spring and spring bumper.

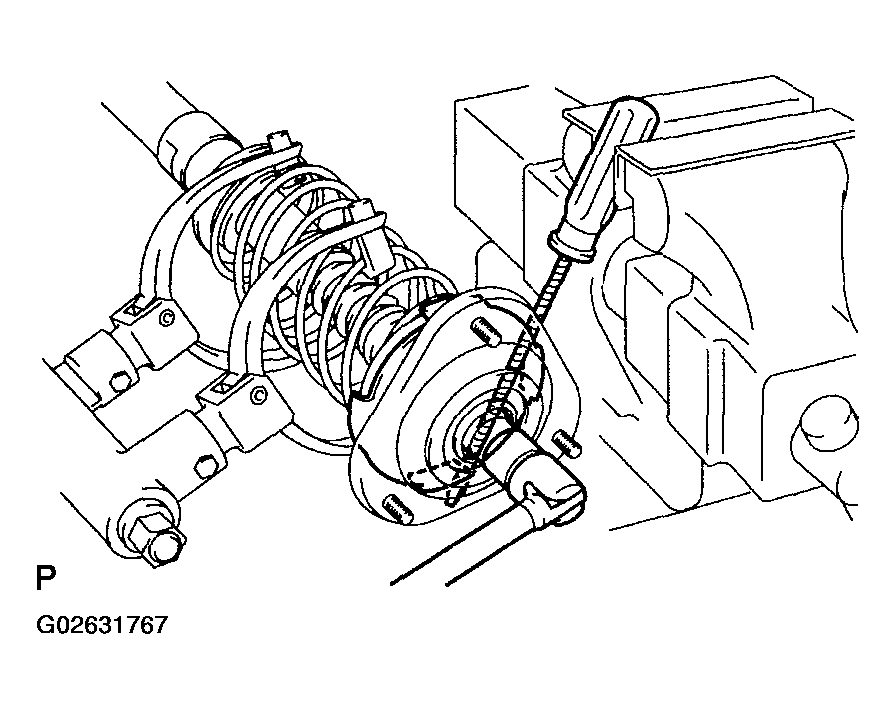

Fig 2: Removing Nut Using A Screwdriver
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
