Front Shock Absorber: Components

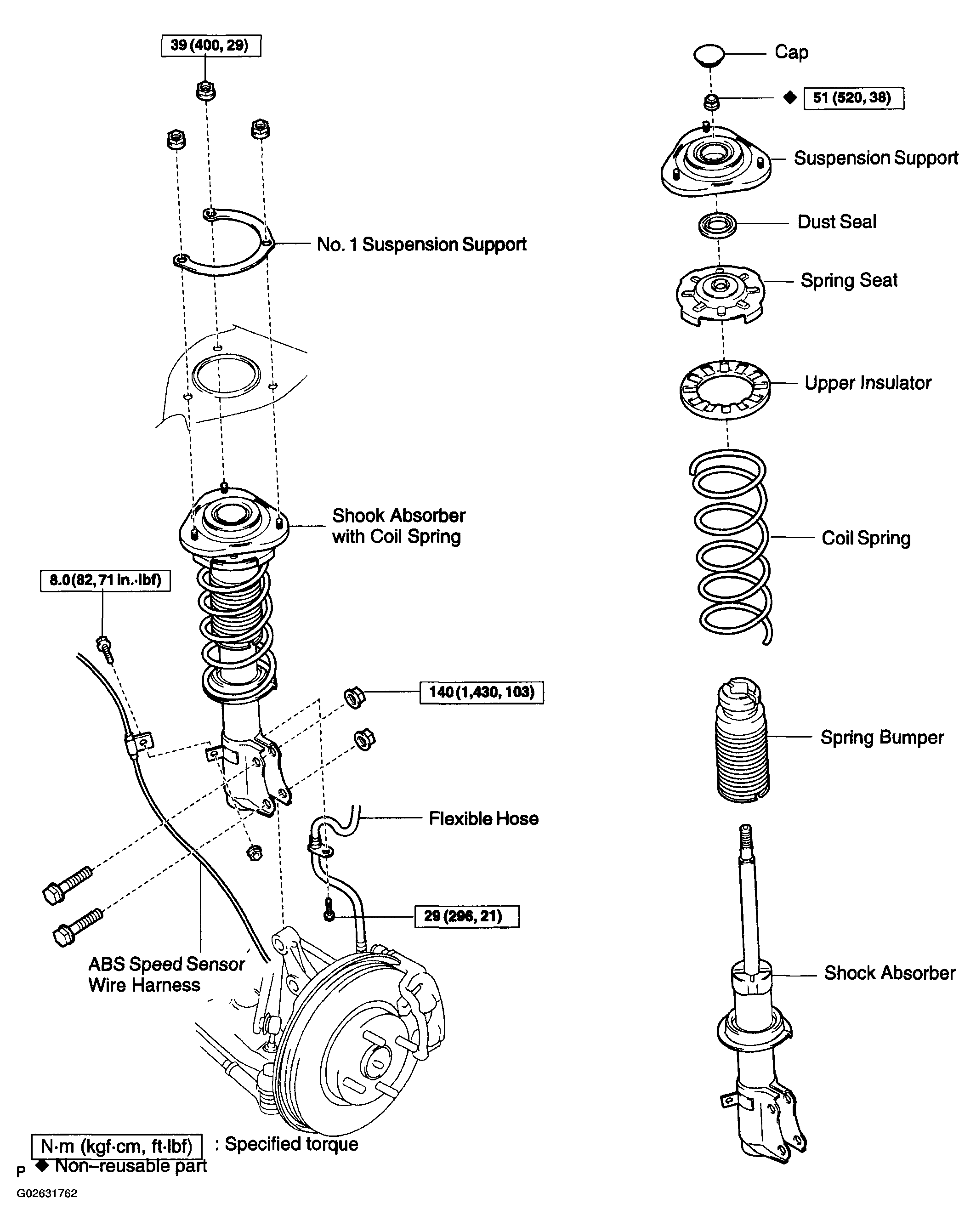

Fig 1: Identifying Front Shock Absorber Components

G02631762

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
