Front Lower Suspension Arm: Components

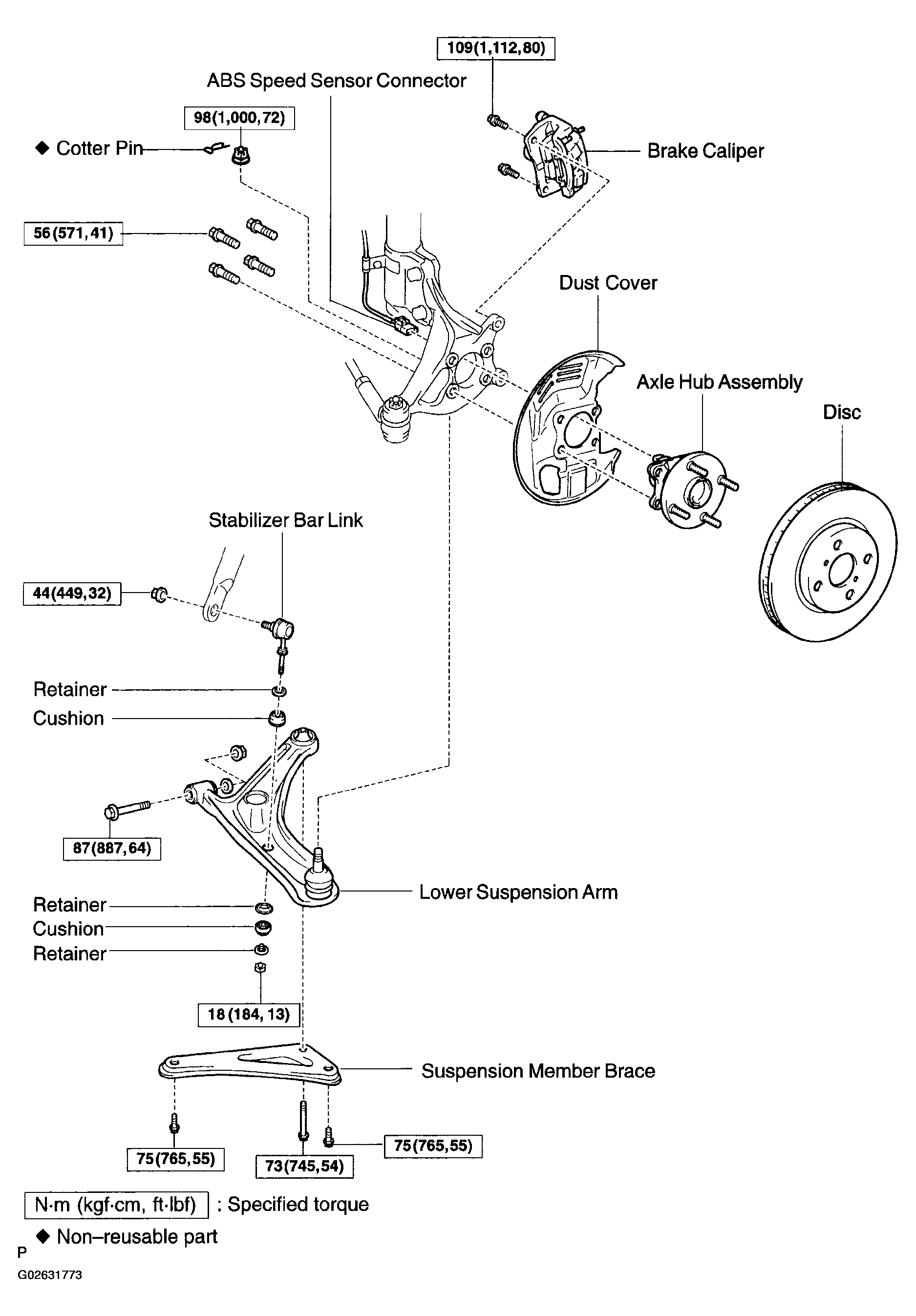

Fig 1: Identifying Front Lower Suspension Arm Components

G02631773

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
