Front Axle Hub: Reassembly
- Clean the contacting surface of the axle hub and a new ABS speed sensor.NOTE: Do not allow any foreign matter to stick to the sensor rotor.
- Place the ABS speed sensor on the axle hub so that the connector is set at the bottom under the on-vehicle condition.

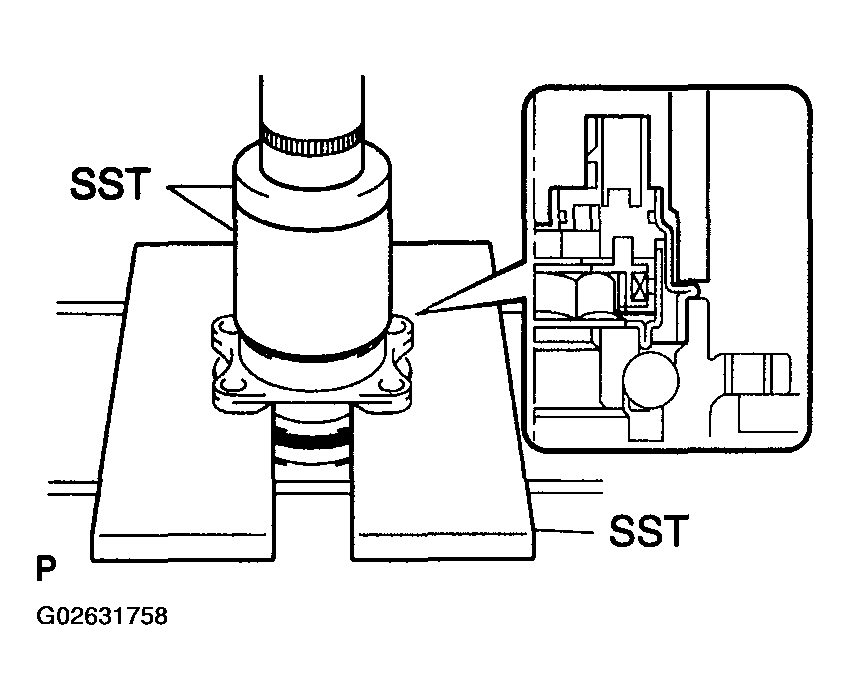

- Using SST and a press, install a new ABS speed sensor to the axle hub.
SST 09527-10011, 09710-04101, 09950-60020 (09951-00680)
NOTE:
- Do not tap the speed sensor with a hammer directly.
- Check that there is no foreign matter on the speed sensor detection portion.
- Press in the ABS speed sensor straightly and slowly.
